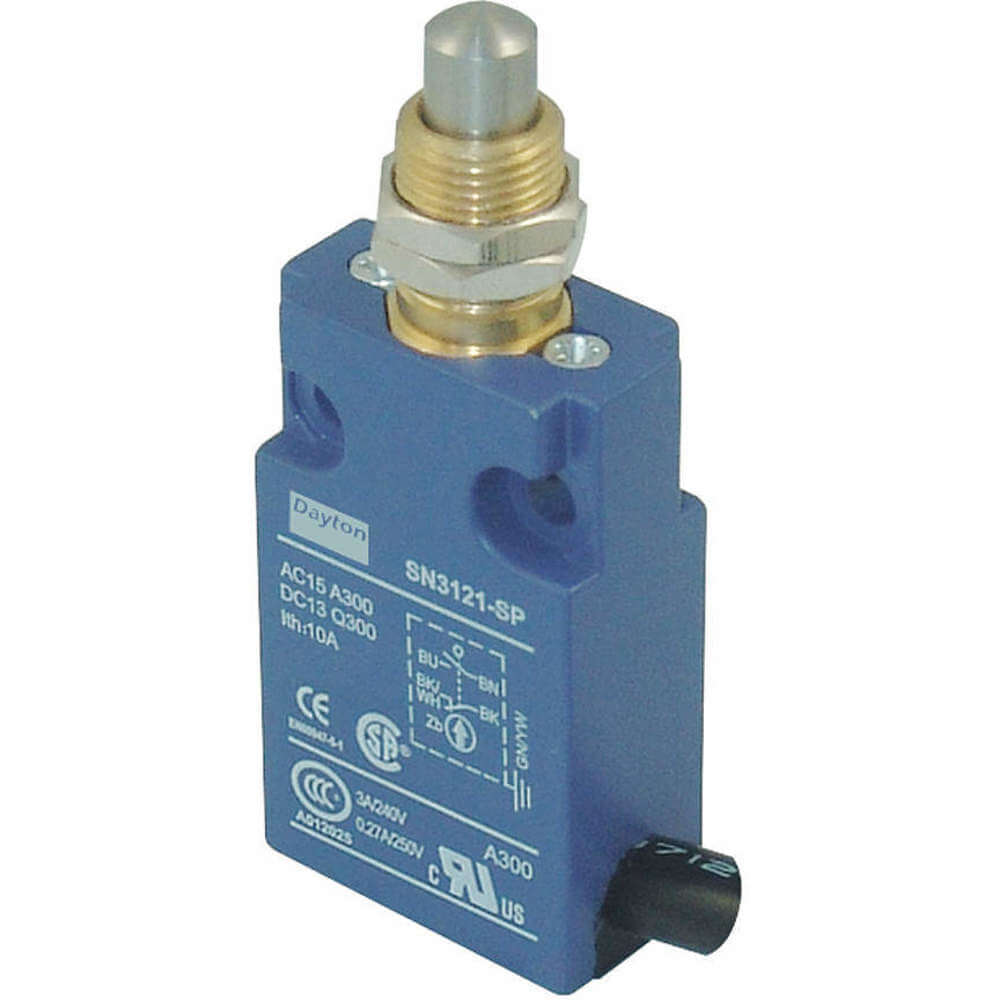

DAYTON 12T956 Miniature Limit Switch Top Actuator Spdt
Item: AA4LPMModel: 12T956
7 In Stock
Ships within 2 days via
10.00% off
€70.65 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Miniature Limit Switch |
| Ac Contact Rating | 10A @ 300V |
| Actuator Location | Top |
| Actuator Style - Limit Switch | Plunger |
| Basic Actuator Style | Plunger |
| Basic Actuator Style (limit Switch) | Plunger |
| Body Depth | 0.63" |
| Body Height | 1.97" |
| Body Height - Limit Switch | 1.97" |
| Body Style | Miniature |
| Body Style - Limit Switch | Miniature |
| Body Width | 1.18" |
| Boot Sealed Actuator | No |
| Boot Sealed Actuator - Limit Switch | No |
| Contact Form | SPDT |
| Dc Contact Rating | 10A @ 300V |
| Depth | 0.63" |
| Directional Movement | Linear |
| Electrical Connection | 6 ft. Cable (5 Wire, 18 Awg) |
| Height | 2.91" |
| Ip Rating | IP67 |
| Limit Switch Style | General Purpose Limit Switch |
| Maximum Operating Force | 40 ozf |
| Mounting - Limit Switch | Stem, Surface |
| Mounting Hole Diameter | 0.17" |
| Mounting Hole Horizontal Center To Center Distance | 20 mm |
| Mounting Hole Spacing - Limit Switch | 0.79" |
| Mounting Style | Stem, Surface |
| Movement | Vertical |
| Nema Enclosure Rating | NEMA 12, NEMA 13, NEMA 4, NEMA 6, NEMA 6P |
| Nema Rating | NEMA 4, NEMA 6, NEMA 6P, NEMA 12, NEMA 13 |
| Number Of Mounting Holes | 2 |
| Operating Force | 40 oz. |
| Operating Temp. Range | -14°F to +185°F |
| Operating Temperature - Maximum | 185°F |
| Operating Temperature - Minimum | -14°F |
| Standards | Ce, Csa, Ul Listed |
| Width | 1.18" |
| Wiring Entry | Prewired Cable |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 7.37 |
| Ship length (cm) | 16.51 |
| Ship width (cm) | 16.51 |
| HS code | 8536509055 |
| Country of Origin | CN |
Product Variants
| Product | Model | Electrical Connection | Actuator Style | Operating Force | Wiring Entry | Body Width | Boot Sealed Actuator | Basic Actuator Style (limit Switch) | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

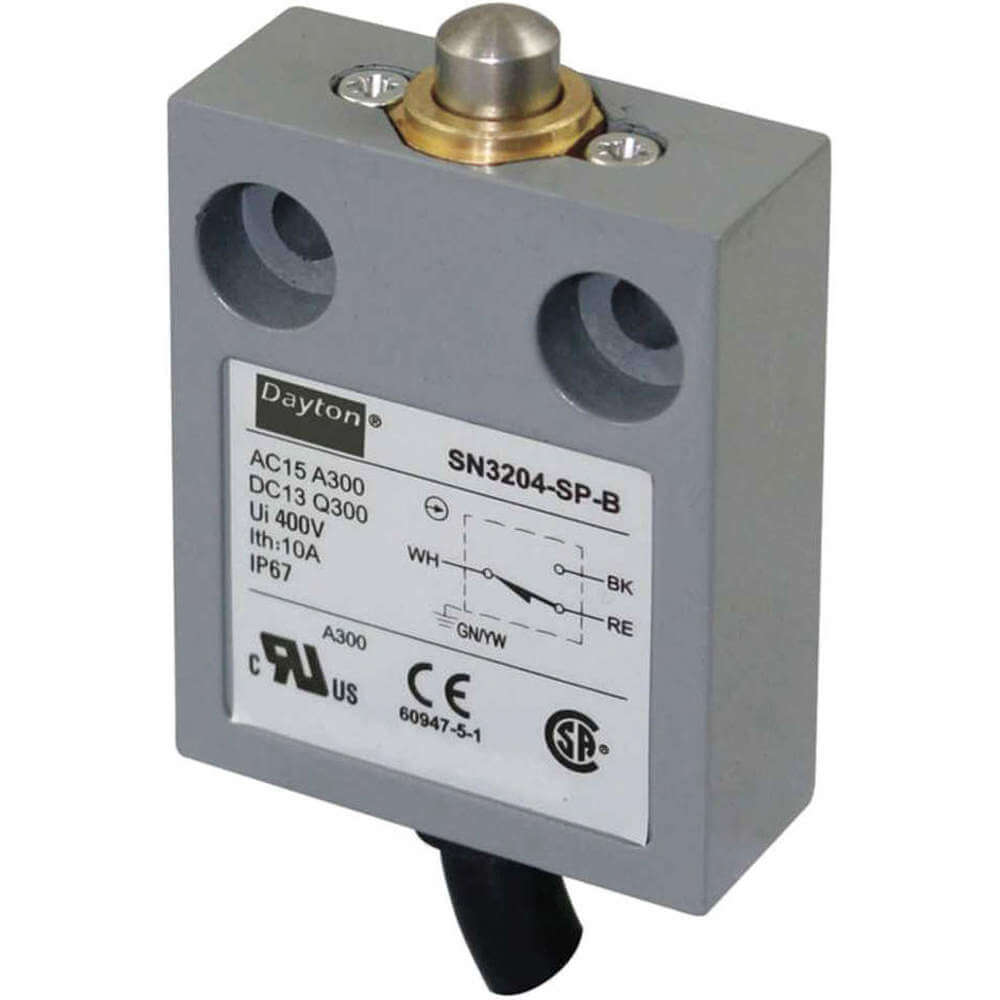

12T931 | 9.8 ft. Cable (4 Wire, 18 Awg, Sjt) | Plunger | 40 oz. | Prewired Cable | 1.57" | No | Plunger | 2.26" | €84.48 | |
 |

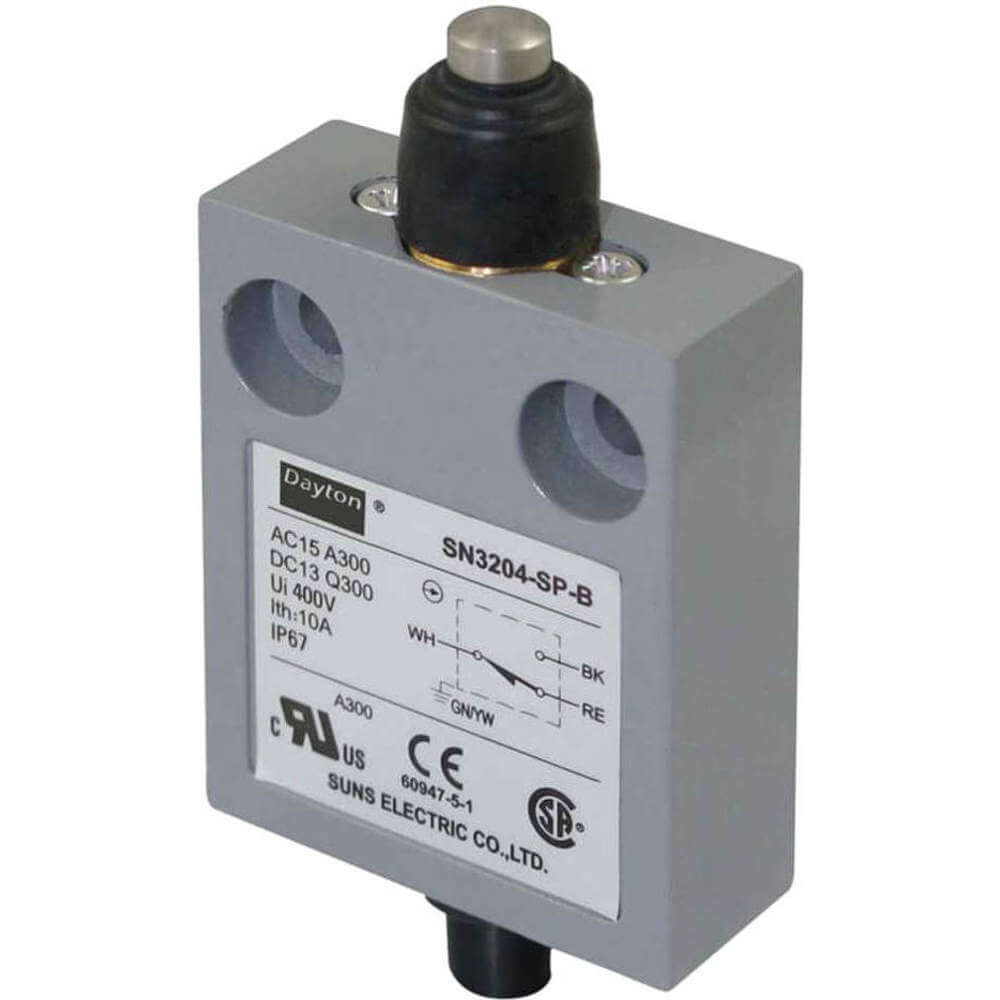

12T932 | 9.8 ft. Cable (4 Wire, 18 Awg, Sjt) | - | 40 oz. | Prewired Cable | 1.57" | Yes | Plunger | 2.63" | €87.35 | |
 |

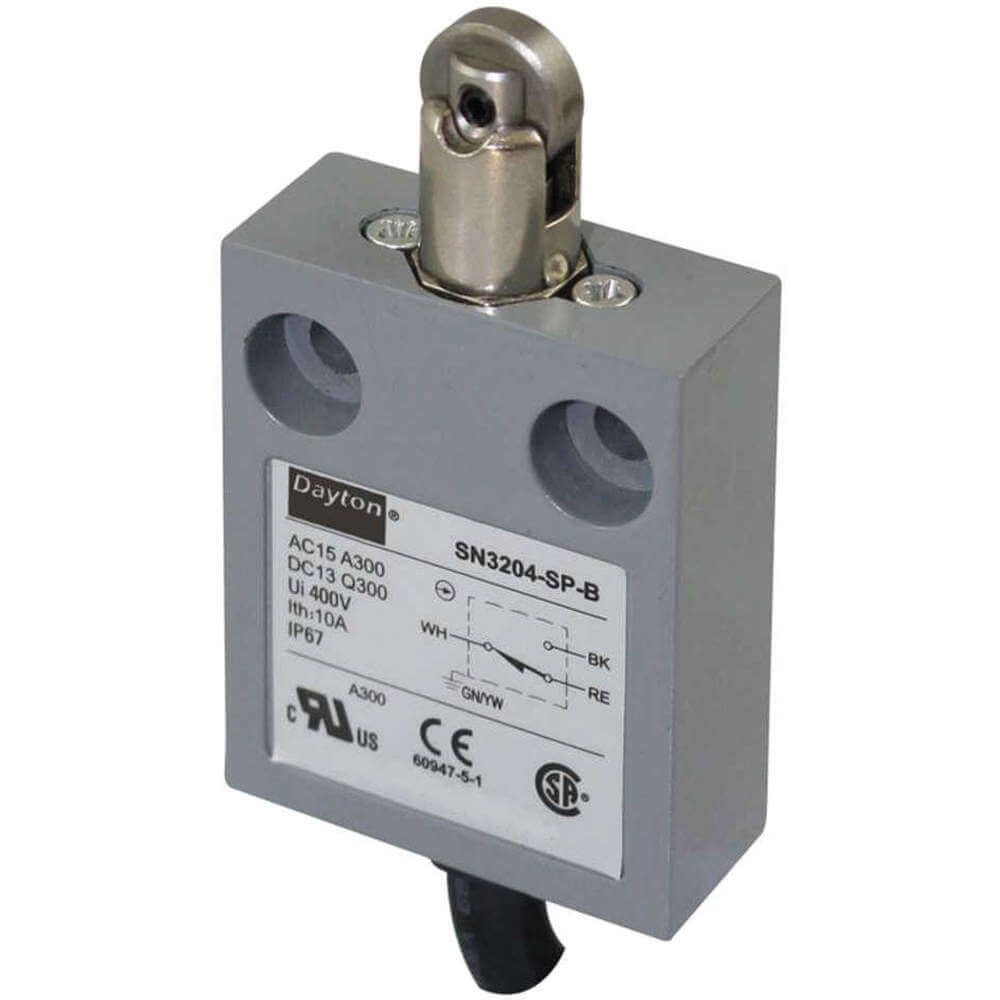

12T933 | - | Plunger | 40 oz. | Prewired Cable | 1.57" | No | Plunger | 2.77" | €141.41 | |
 |

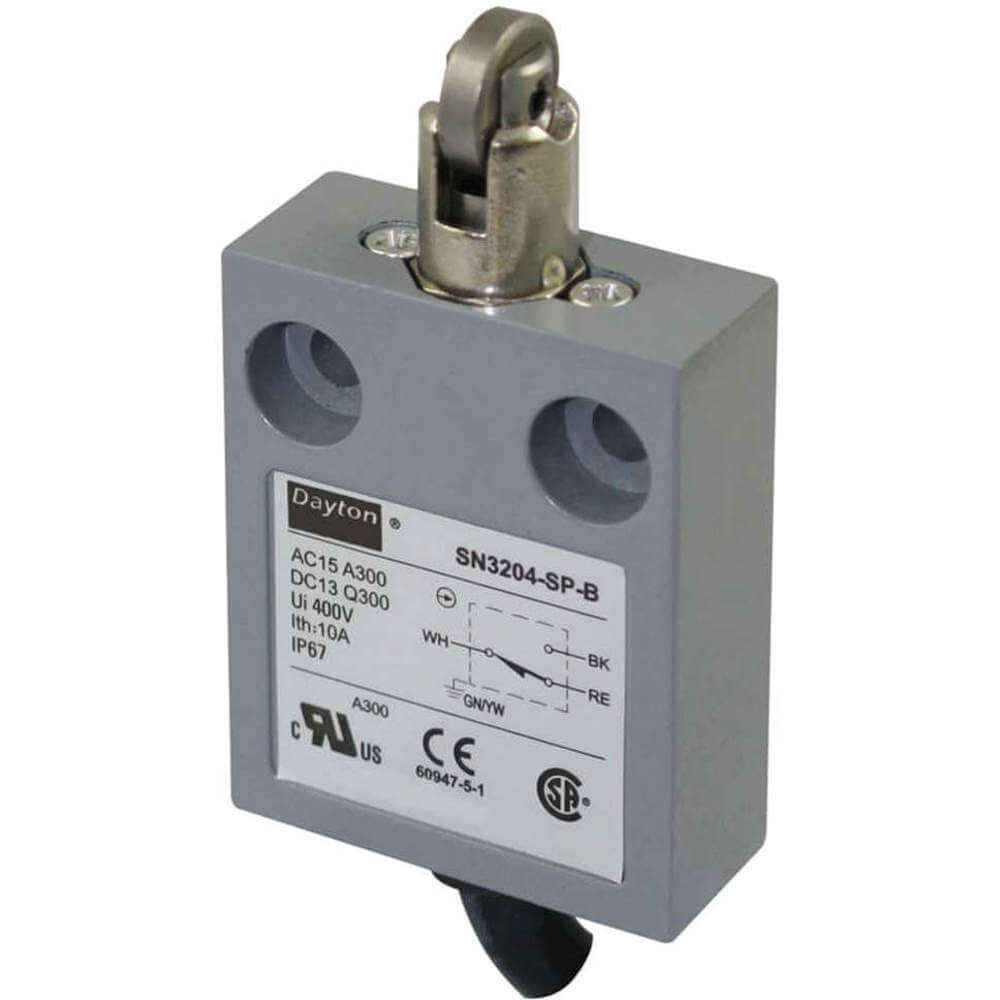

12T934 | 9.8 ft. Cable (4 Wire, 18 Awg, Sjt) | Cross Roller Plunger | 40 oz. | Prewired Cable | 1.57" | No | Plunger | 2.77" | €90.35 | |
 |

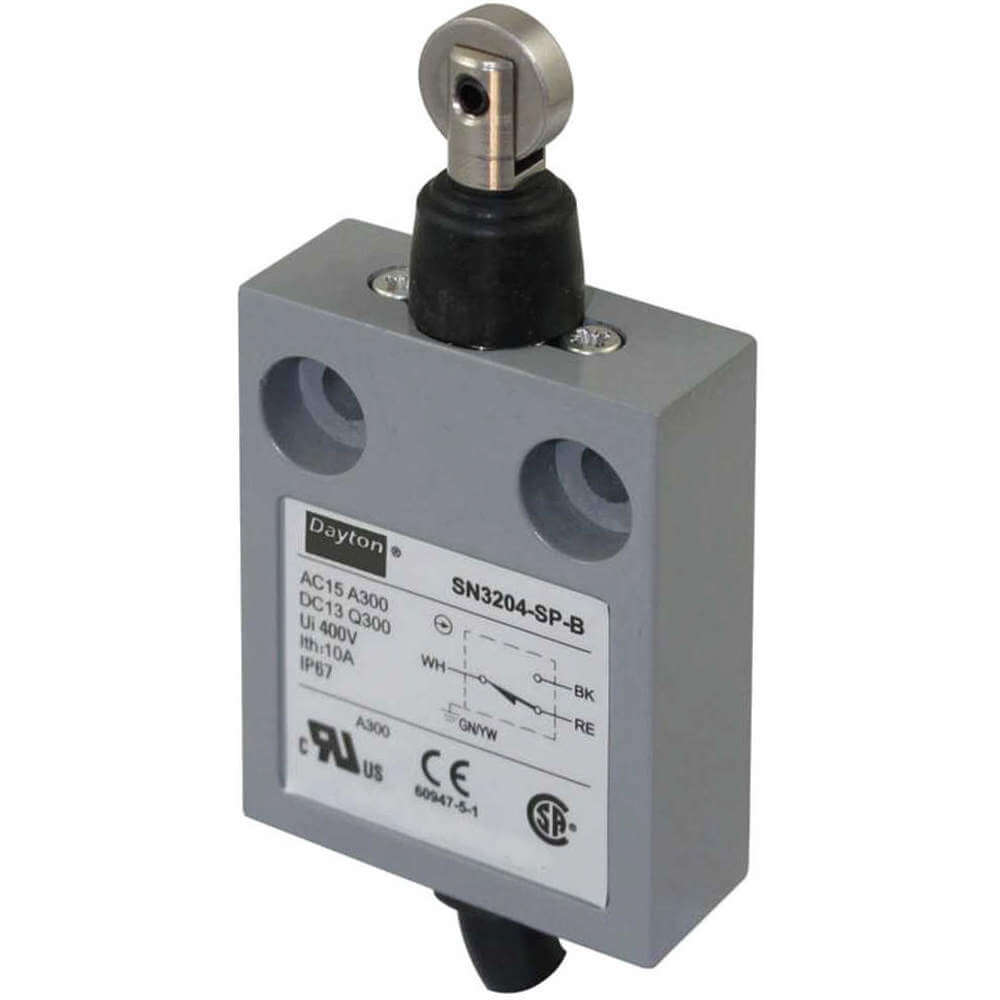

12T935 | 9.8 ft. Cable (4 Wire, 18 Awg, Sjt) | Roller Plunger | 40 oz. | Prewired Cable | 1.57" | Yes | Plunger | 3" | €93.33 | |
 |

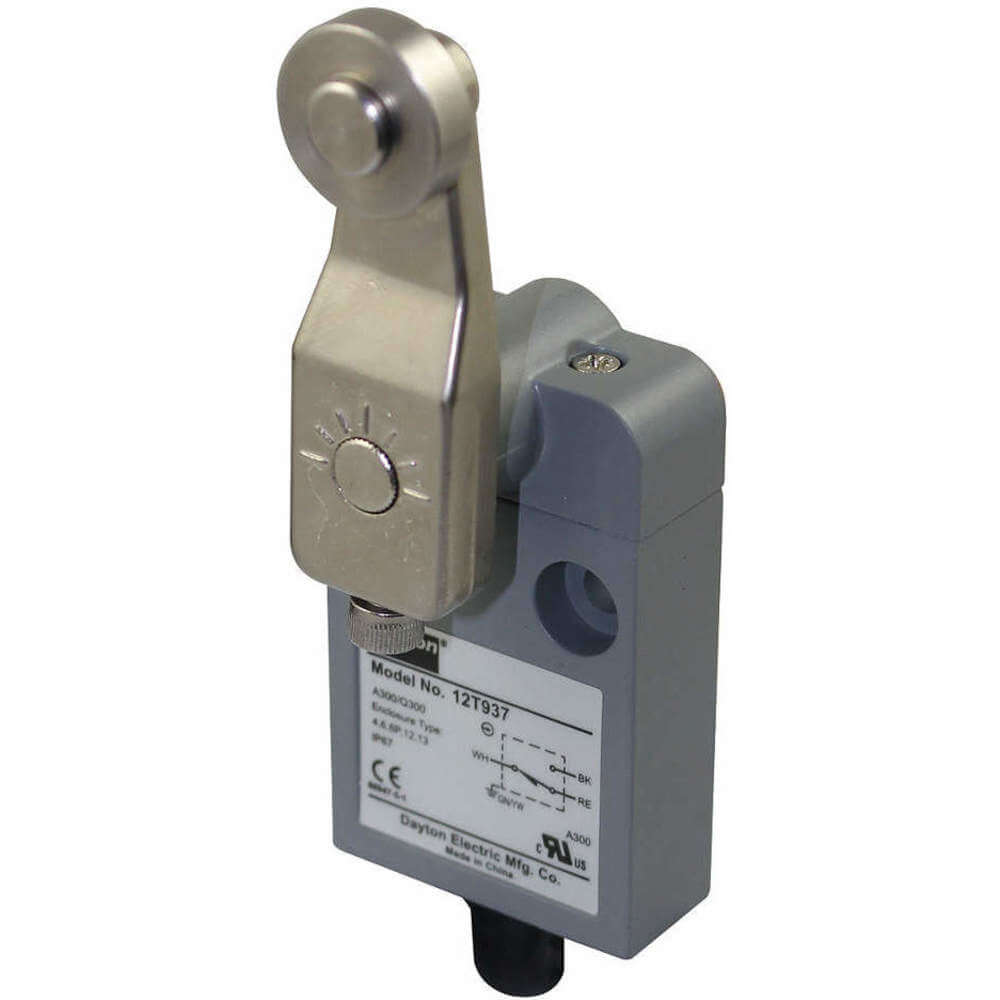

12T937 | 9.8 ft. Cable (4 Wire, 18 Awg, Sjt) | Rotary Lever Roller | 22.66 oz.-in. | Prewired Cable | 1.57" | No | Rotary | 4.17" | €106.26 | |
 |

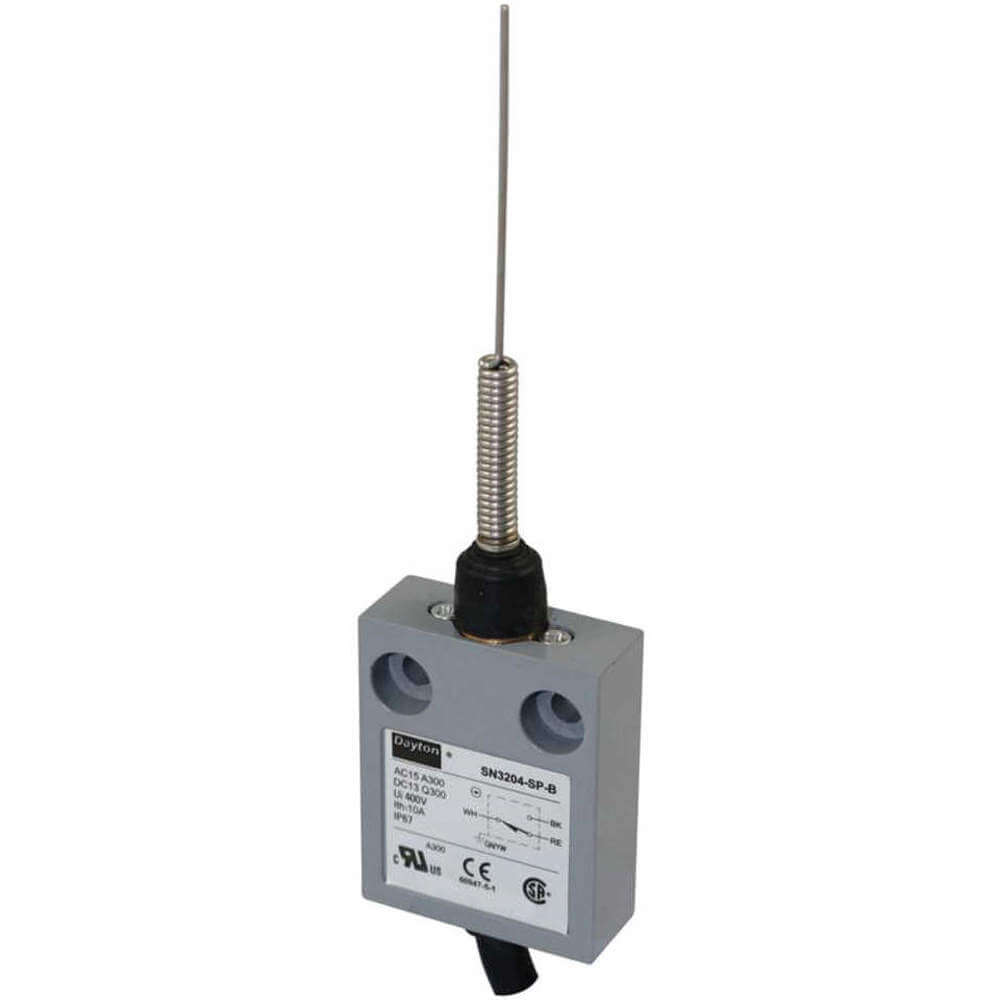

12T938 | 9.8 ft. Cable (4 Wire, 18 Awg, Sjt) | Wobble Stick | 40 oz. | Prewired Cable | 1.57" | No | Wobble Stick | 5.67" | €91.98 |
