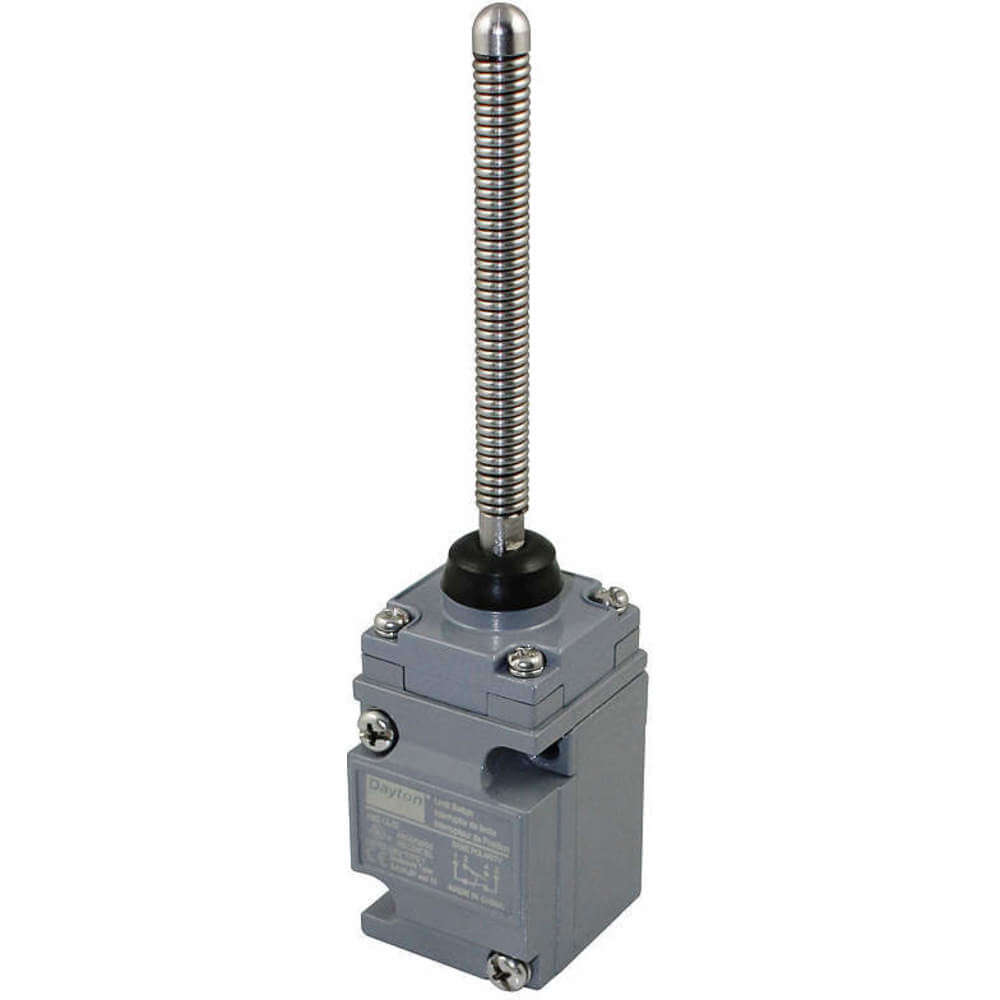

DAYTON 12T853 Heavy Duty Limit Switch Top Actuator Spdt
Item: AA4LKCModel: 12T853
7 In Stock
Ships within 2 days via
10.00% off
€169.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Heavy Duty Limit Switch |
| Ac Contact Rating | 10A @ 600V |
| Actuator Location | Top |
| Actuator Style | Wobble Stick |
| Actuator Style - Limit Switch | Wobble Stick |
| Actuator Type | Wobble Stick |
| Basic Actuator Style | Wobble Stick |
| Basic Actuator Style (limit Switch) | Wobble Stick |
| Body Depth | 1.74" |
| Body Height | 2.46" |
| Body Height - Limit Switch | 2.46" |
| Body Style | Miniature |
| Body Style - Limit Switch | Miniature |
| Body Width | 1.65" |
| Boot Sealed Actuator | No |
| Boot Sealed Actuator - Limit Switch | No |
| Contact Form | SPDT |
| Dc Contact Rating | 10A @ 600V |
| Depth | 1.76" |
| Directional Movement | Omnidirectional |
| Electrical Connection | Screw Terminals |
| Ip Rating | IP67 |
| Limit Switch Style | Heavy Duty Limit Switch |
| Mounting - Limit Switch | Surface |
| Mounting Hole Diameter | 1/5" |
| Mounting Hole Horizontal Center To Center Distance | 29 mm |
| Mounting Hole Spacing - Limit Switch | 2.34" x 1.16" |
| Mounting Hole Vertical Center To Center Distance | 59 mm |
| Mounting Style | Surface |
| Movement | Omnidirectional |
| Nema Enclosure Rating | NEMA 3, NEMA 4, NEMA 4X, NEMA 6P, NEMA 13 |
| Nema Rating | NEMA 3, NEMA 4, NEMA 4X, NEMA 6P, NEMA 13 |
| Number Of Mounting Holes | 2 |
| Operating Force | 56.66 oz.-in. |
| Operating Temp. Range | -20°F to +185°F |
| Operating Temperature - Maximum | 185°F |
| Operating Temperature - Minimum | -20°F |
| Operating Torque - Maximum | 3.54 lbs.-in. |
| Standards | Ce, Csa, Ul Listed |
| Stem Thread - Limit Switch | No Stem |
| Width | 1.65" |
Shipping Info:
| Ship weight (kg) | 0.52 |
| Ship height (cm) | 6.1 |
| Ship length (cm) | 23.62 |
| Ship width (cm) | 8.13 |
| HS code | 8536509055 |
| Country of Origin | CN |
Product Variants
| Product | Model | Actuator Style | Movement | Limit Switch Style | Basic Actuator Style (limit Switch) | Operating Force | Body Height | Body Style | Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
11X445 | No Lever, Rotary Head | CW/CCW | Heavy Duty Limit Switch | Rotary | 56.66 oz.-in. | 2.46" | Miniature | 2.52" | €257.74 | |
 |
11X446 | No Lever, Rotary Head | CW/CCW | Heavy Duty Limit Switch | Rotary | 56.66 oz.-in. | 2.46" | Miniature | 2.52" | €314.45 | |
 |
11X447 | Roller Plunger | Vertical | Heavy Duty Limit Switch | Plunger | 65 oz. | 2.46" | Miniature | 1.76" | €660.86 | |
 |
11X448 | Plunger | Vertical | Heavy Duty Limit Switch | Plunger | 65 oz. | 2.46" | Miniature | 1.76" | €289.31 | |
 |
11X449 | Roller Plunger | Horizontal | Heavy Duty Limit Switch | Plunger | 65 oz. | 2.46" | Miniature | 2.72" | €315.45 | |
 |
11X450 | Wobble Stick | Omnidirectional | Heavy Duty Limit Switch | Wobble Stick | 56.66 oz.-in. | - | Miniature | 1.76" | €493.81 | |
 |
11X452 | Plunger | Vertical | Heavy Duty Limit Switch | Plunger | 65 oz. | 3.35" | Standard | 1.76" | €171.34 |
