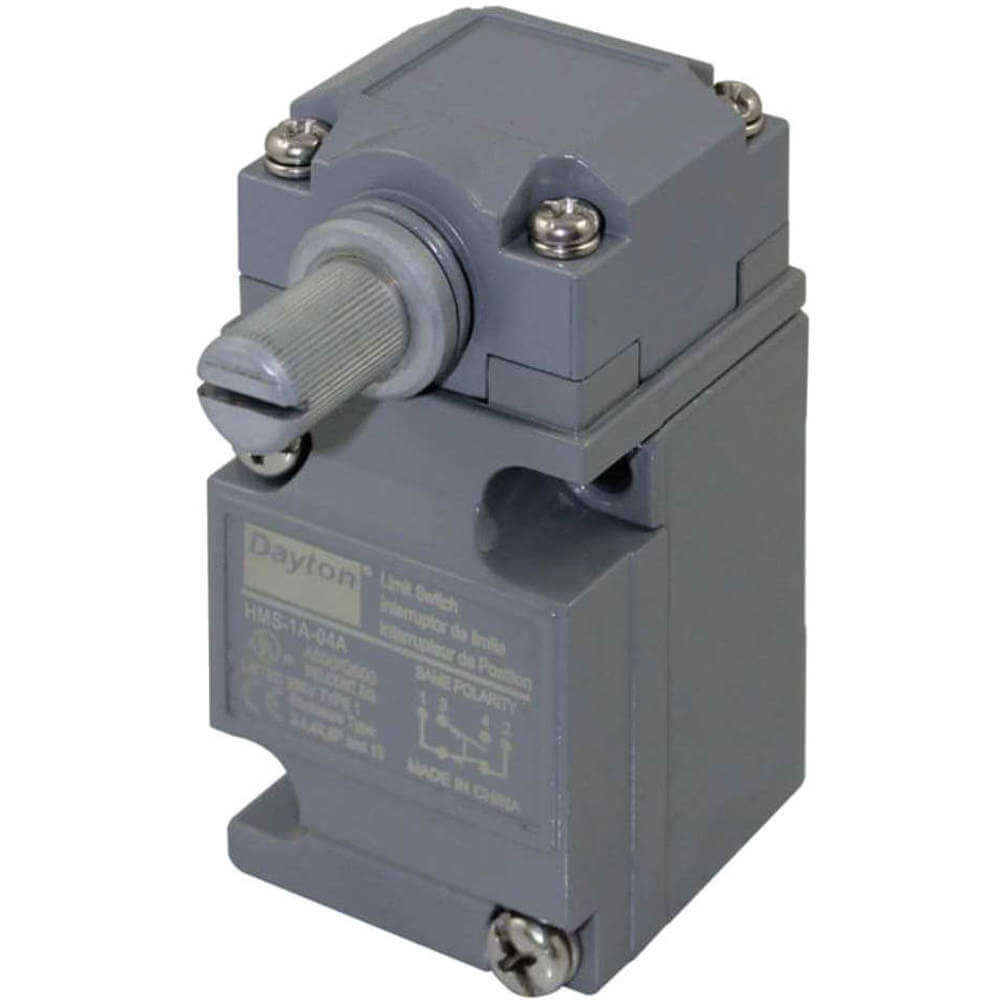

DAYTON 11X445 Heavy Duty Limit Switch Side Actuator Spdt

Item: AA3WQCModel: 11X445

7 In Stock

Ships within 2 days via

~~€257.74~~

10.00% off

€231.97 /unit

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Heavy Duty Limit Switch
Ac Contact Rating	10A @ 600V
Actuator Location	Side
Actuator Style	No Lever, Rotary Head
Actuator Style - Limit Switch	No Lever, Rotary
Basic Actuator Style	Rotary
Basic Actuator Style (limit Switch)	Rotary
Body Depth	1.74"
Body Height	2.46"
Body Height - Limit Switch	2.46"
Body Style	Miniature
Body Style - Limit Switch	Miniature
Body Width	1.65"
Boot Sealed Actuator	No
Boot Sealed Actuator - Limit Switch	No
Compatible Actuator Type	Roller Lever
Contact Form	SPDT
Dc Contact Rating	10A @ 600V
Depth	2.52"
Directional Movement	CCW/CW
Electrical Connection	Screw Terminals
Height	3.141"
Includes Actuator	Actuator Not Included
Ip Rating	IP67
Limit Switch Style	Heavy Duty Limit Switch
Mounting - Limit Switch	Surface
Mounting Hole Diameter	1/5"
Mounting Hole Horizontal Center To Center Distance	29 mm
Mounting Hole Spacing - Limit Switch	1.46" x 1.16"
Mounting Hole Vertical Center To Center Distance	37 mm
Mounting Style	Surface
Movement	CW/CCW
Nema Enclosure Rating	NEMA 3, NEMA 4, NEMA 4X, NEMA 6P, NEMA 13
Nema Rating	NEMA 3, NEMA 4, NEMA 4X, NEMA 6P, NEMA 13
Number Of Mounting Holes	2
Operating Force	56.66 oz.-in.
Operating Temp. Range	-20°F to +185°F
Operating Temperature - Maximum	185°F
Operating Temperature - Minimum	-20°F
Operating Torque - Maximum	3.54 lbs.-in.
Over Travel Length	0.157"
Overtravel	0.16"
Pre-travel Length	0.079"
Pretravel	0.08"
Standards	Ce, Csa, Ul Listed
Stem Thread - Limit Switch	No Stem
Width	1.65"

Shipping Info:

Ship weight (kg)	0.52
Ship height (cm)	4.57
Ship length (cm)	8.38
Ship width (cm)	7.37
HS code	8536509055
Country of Origin	CN

Product Variants

Model	Actuator Style	Movement	Limit Switch Style	Basic Actuator Style (limit Switch)	Operating Force	Body Height	Body Style	Depth	Price

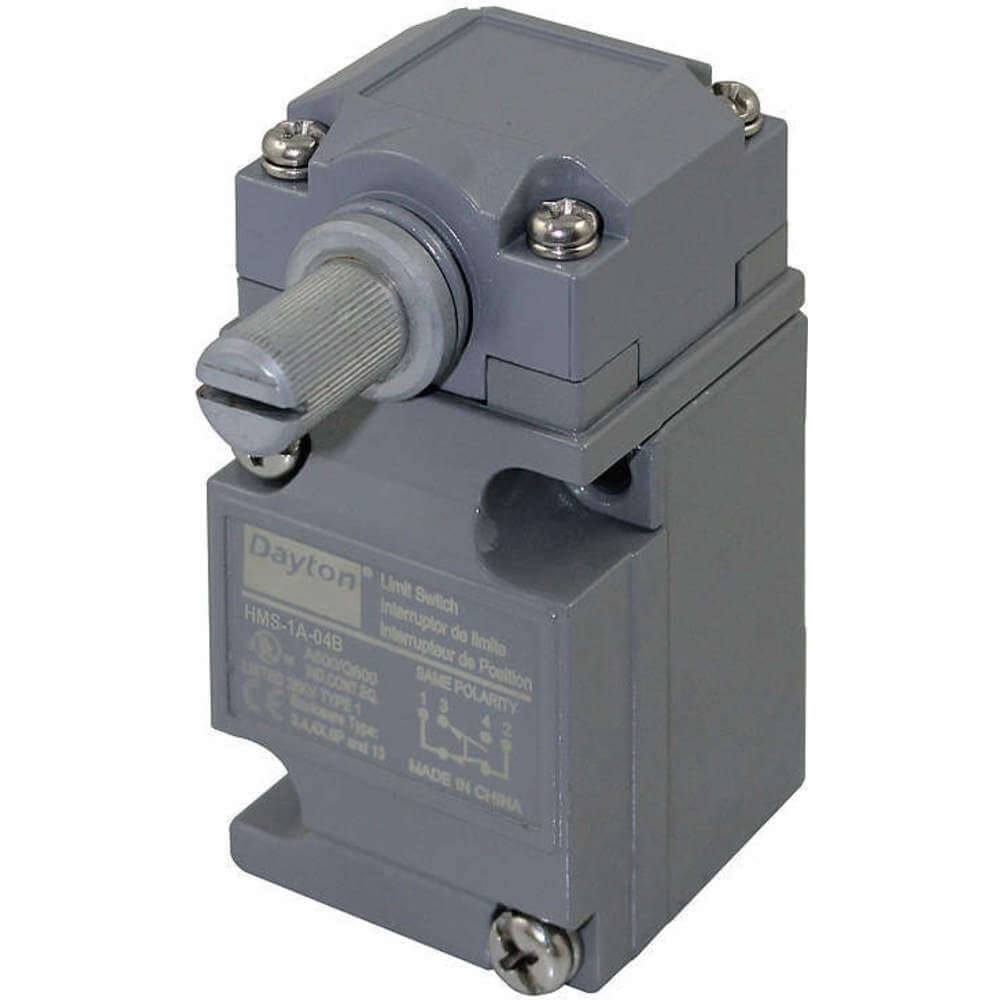

11X446	No Lever, Rotary Head	CW/CCW	Heavy Duty Limit Switch	Rotary	56.66 oz.-in.	2.46"	Miniature	2.52"	€314.45

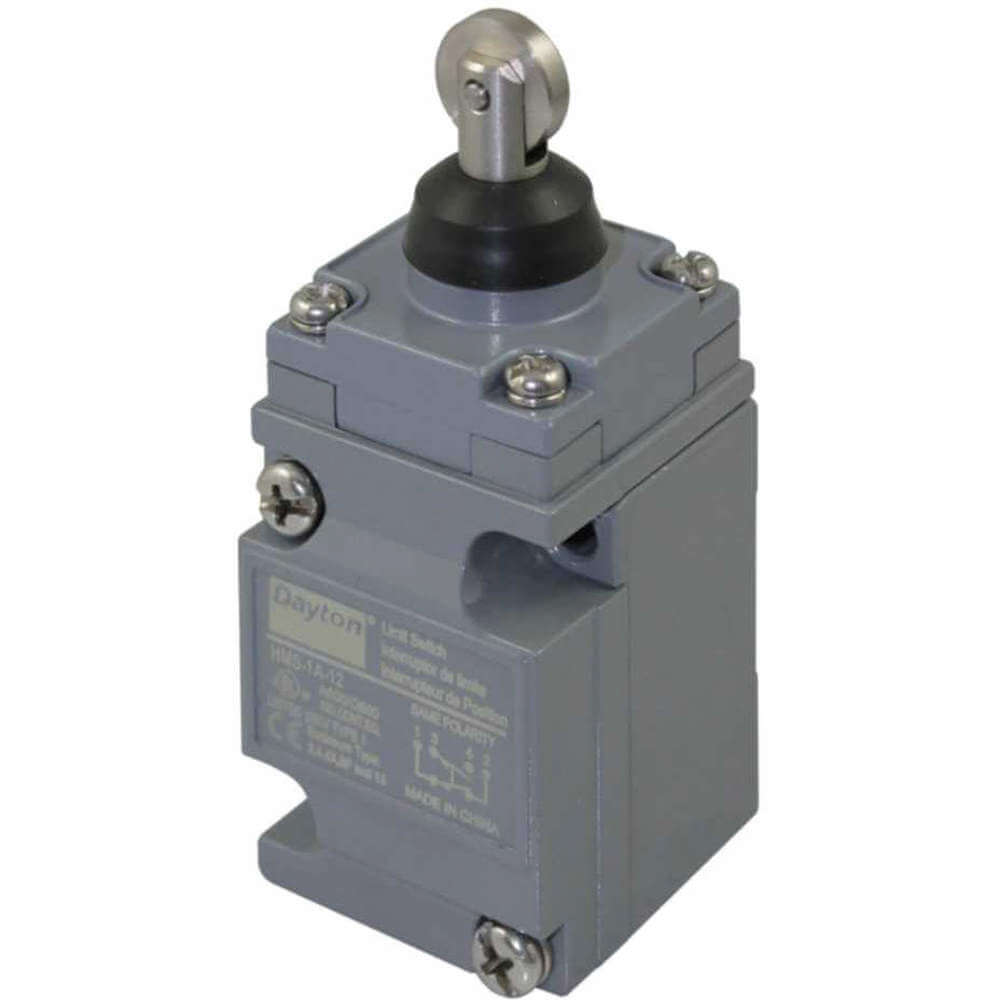

11X447	Roller Plunger	Vertical	Heavy Duty Limit Switch	Plunger	65 oz.	2.46"	Miniature	1.76"	€660.86

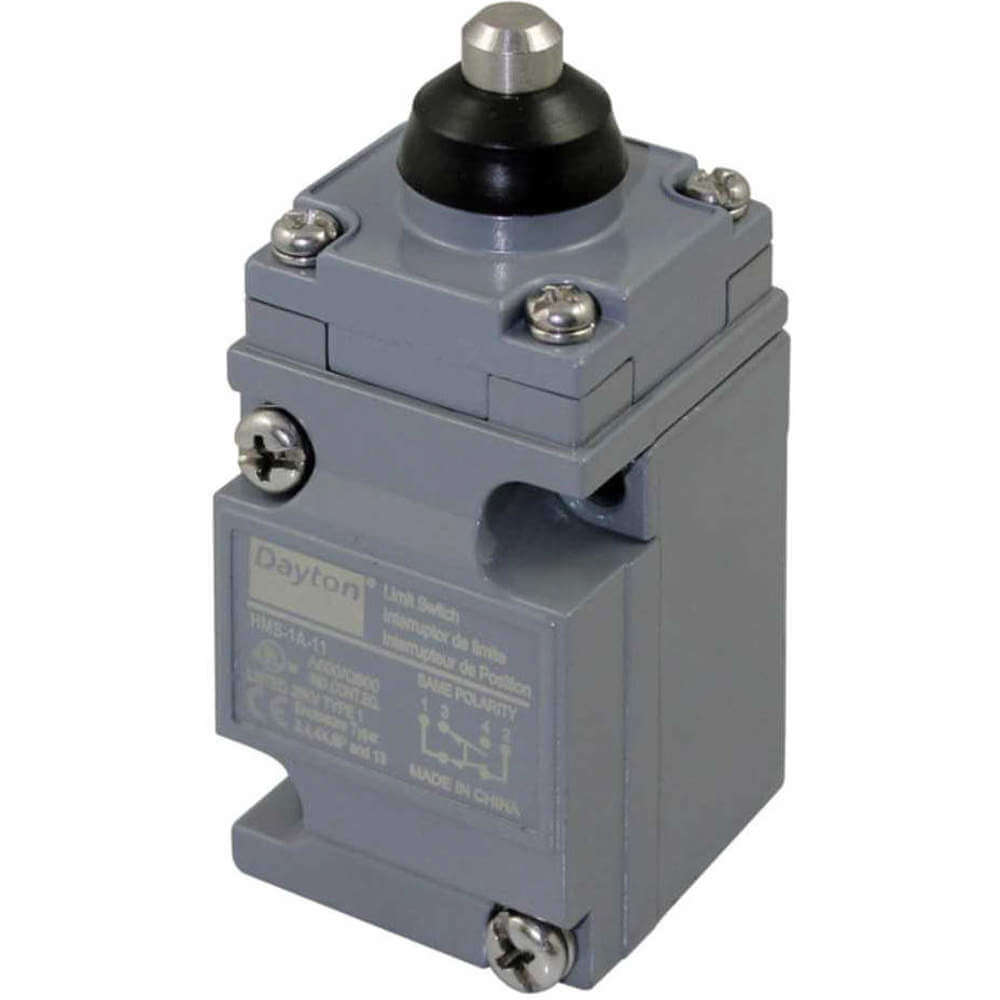

11X448	Plunger	Vertical	Heavy Duty Limit Switch	Plunger	65 oz.	2.46"	Miniature	1.76"	€289.31
11X449	Roller Plunger	Horizontal	Heavy Duty Limit Switch	Plunger	65 oz.	2.46"	Miniature	2.72"	€315.45

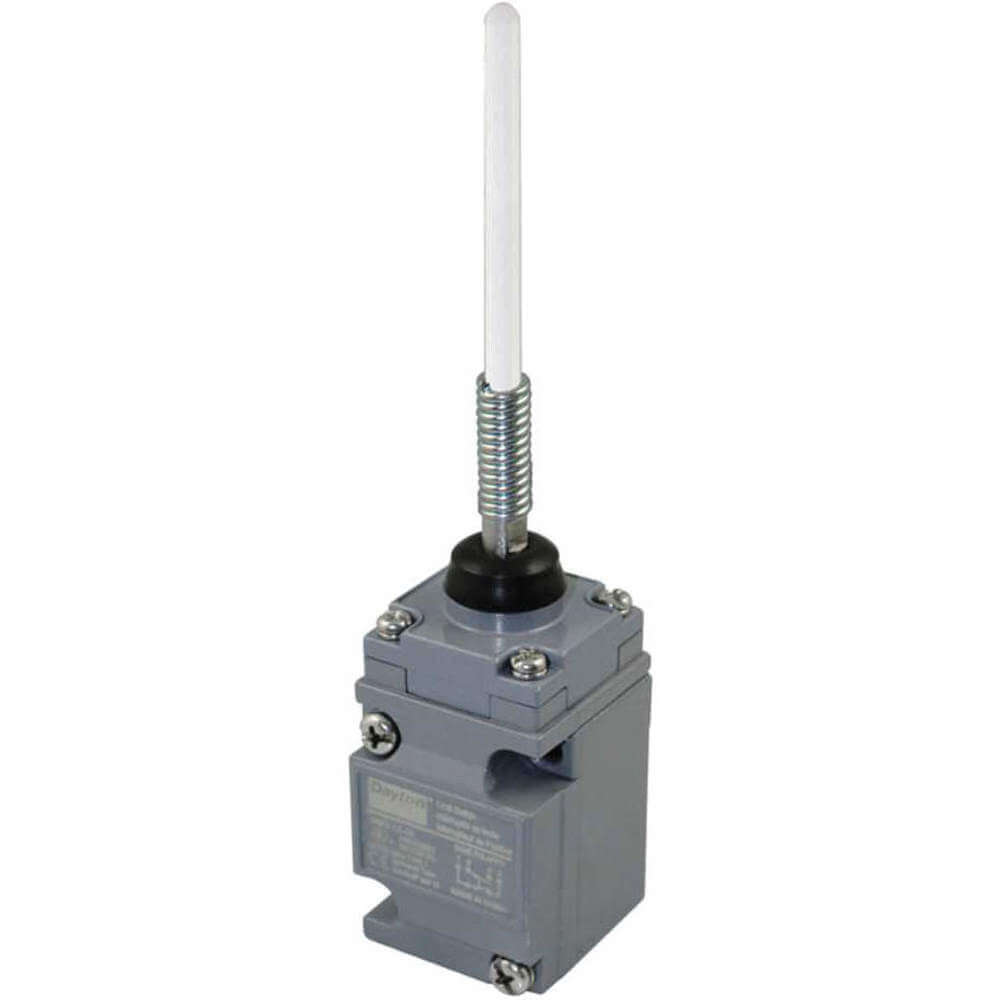

11X450	Wobble Stick	Omnidirectional	Heavy Duty Limit Switch	Wobble Stick	56.66 oz.-in.	-	Miniature	1.76"	€493.81

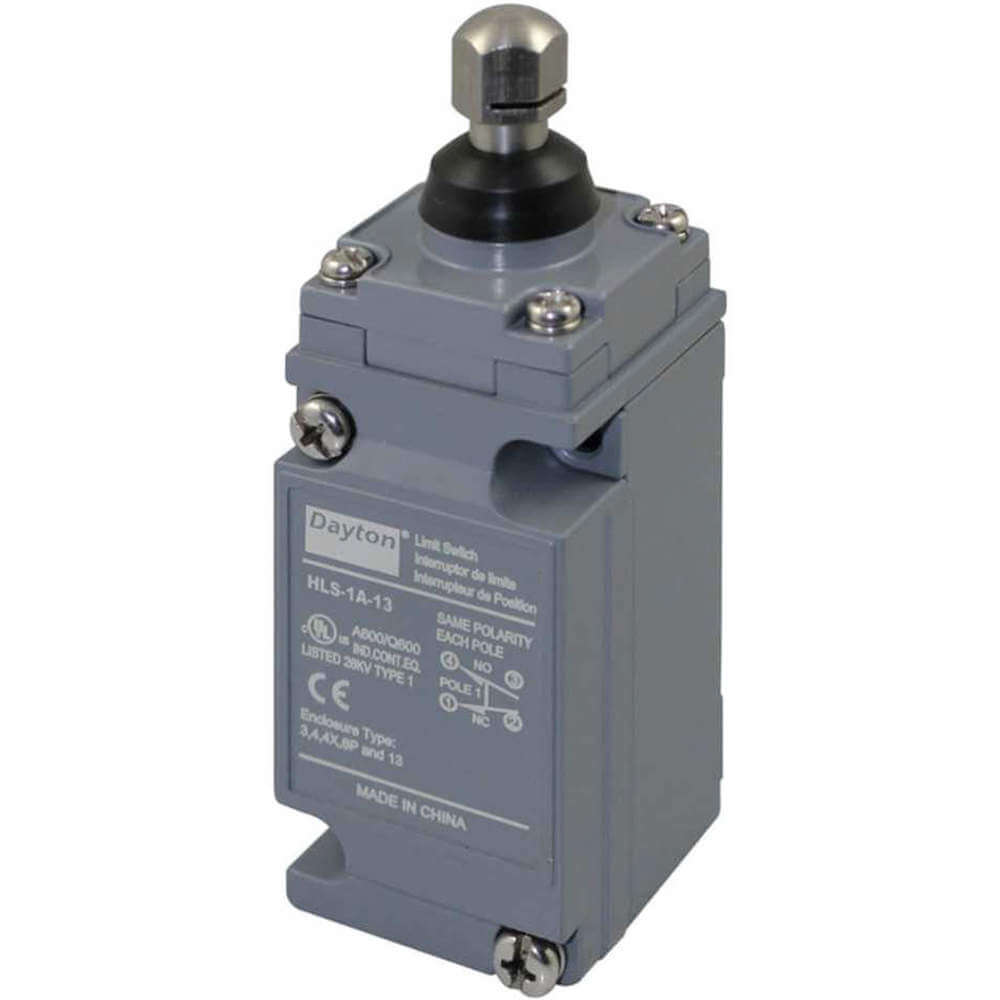

11X452	Plunger	Vertical	Heavy Duty Limit Switch	Plunger	65 oz.	3.35"	Standard	1.76"	€171.34

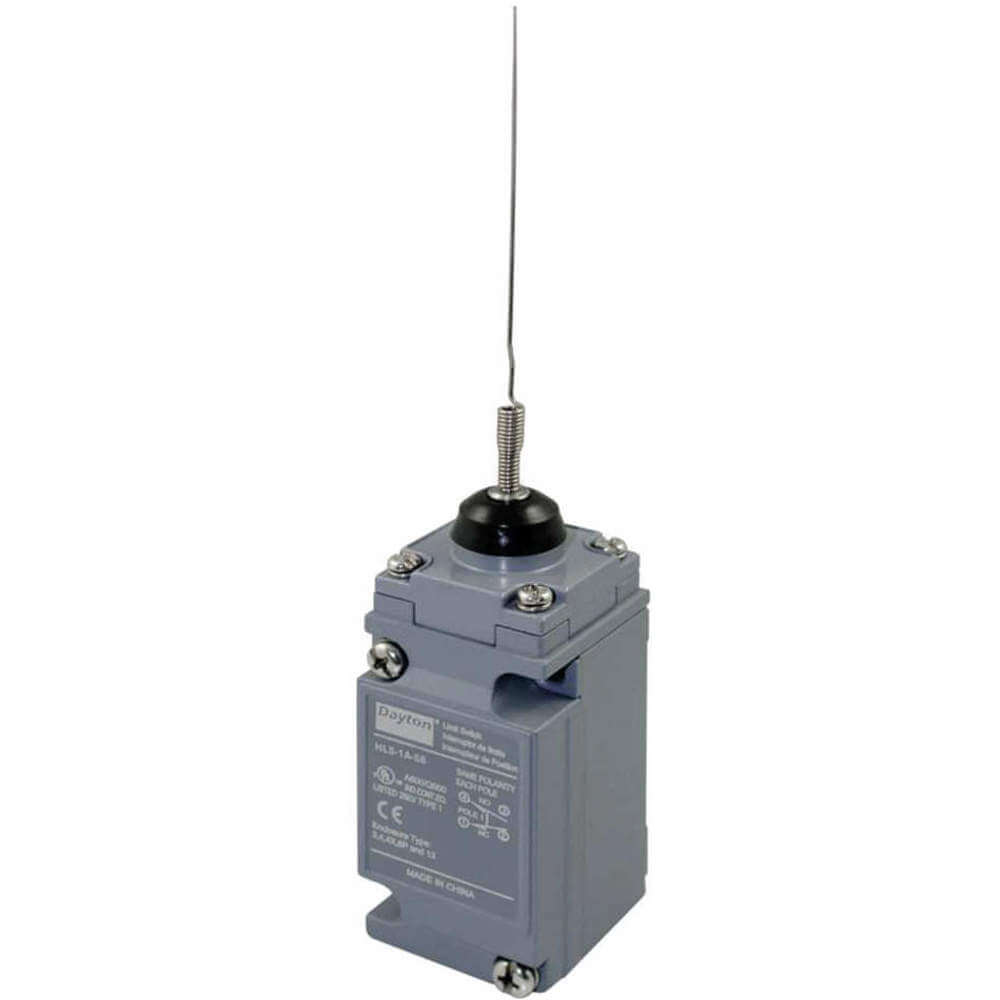

11X453	Wobble Stick	Omnidirectional	Heavy Duty Limit Switch	Wobble Stick	7.08 oz.-in.	3.35"	Standard	1.76"	€299.60
