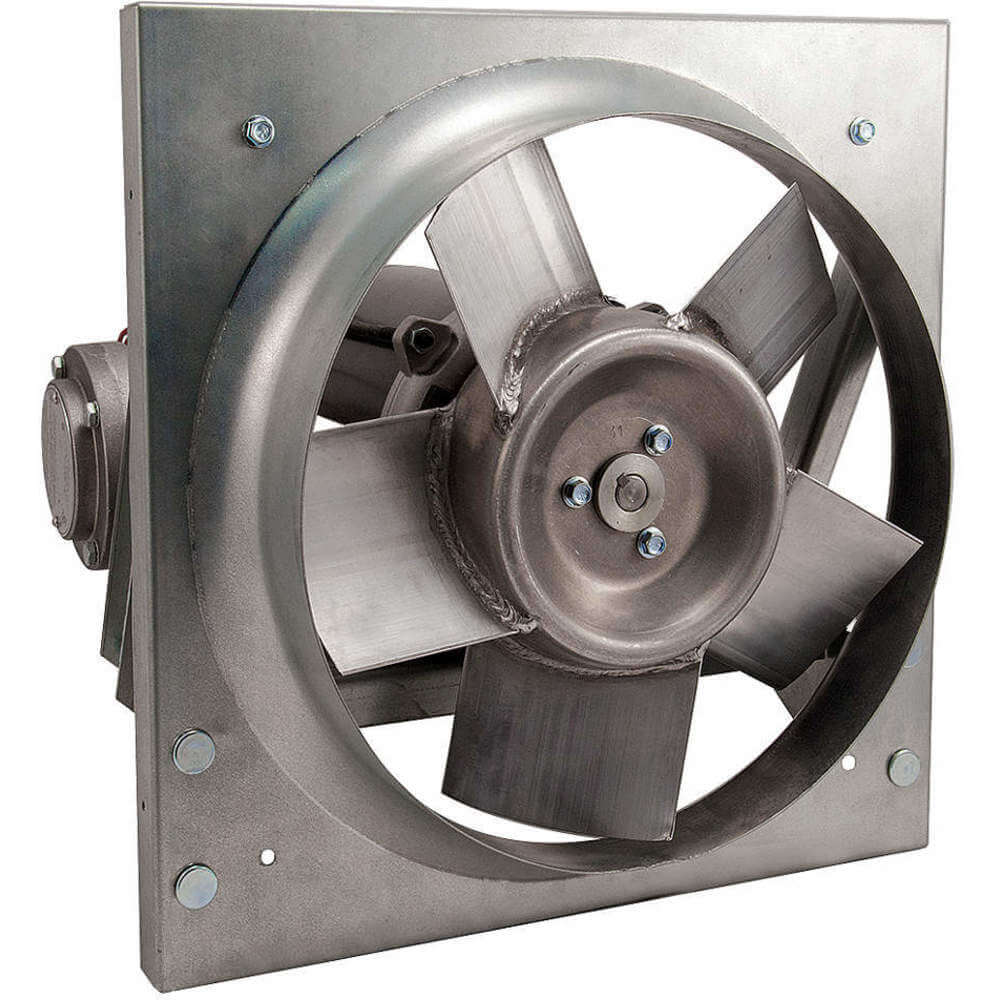

DAYTON 10E002 Exhaust Fan 20 Inch Hazardous Location
Get it by Monday, Feb 16
10.00% off
€1.12 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Panel Exhaust Fan |
| Assembled | Assembled |
| Bearing Type | Ball |
| Blade Dia. | 20" |
| Blade Material | Aluminum |
| Cfm @ 0.000-in. Sp | 4557 CFM |
| Cfm @ 0.125-in. Sp | 4254 CFM |
| Cfm @ 0.250-in. Sp | 3919 CFM |
| Cfm @ 0.375-in. Sp | 3542 CFM |
| Cfm @ 0.500-in. Sp | 3101 CFM |
| Dimension A | 24" |
| Dimension B | 11 1/2" |
| Dimension C | 3 3/4" |
| Dimension D | 20 1/2" |
| Drive Package Included | No |
| Drive Package With Motor Included | No |
| Drive Type | Direct Drive |
| Exhaust/supply Fan Item | Exhaust Fan |
| Fan Style | Panel |
| Flange Width | 24" |
| For Cut-out Length | 22 1/2" |
| For Cut-out Width | 22 1/2" |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Height | 24" |
| Housing Finish | Galvanized |
| Housing Material | Steel |
| Includes | Hazardous Location Motor |
| Includes Dehumidistat | No |
| Includes Grill | No |
| Includes Motor | Yes |
| Max. Ambient Temp. | 104°F |
| Max. Depth | 15 3/8" |
| Maximum Noise Level | 23 sones |
| Method Of Construction | Stamped |
| Motor Enclosure Design | Explosion Proof Fan Cooled |
| Motor Hp | 1/2 hp |
| Motor Insulation | Class B |
| Motor Insulation Class | Class B |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Position | Horizontal/Vertical |
| No. Of Blades | 3 |
| Noise Level @ 0.000 In Sp @ 5 Ft | 23 sones |
| Noise Level @ 0.125 In Sp @ 5 Ft | 22 sones |
| Number Of Blades | 3 |
| Number Of Fans | 1 |
| Number Of Speeds | 1 |
| Overall Depth | 15 1/4" |
| Overall Height | 24" |
| Overall Width | 24" |
| Phase | 1 |
| Propeller Dia. | 20" |
| Propeller Material | Aluminum |
| Shaft Dia. | 5/8" |
| Speed Controllable | No |
| Type | Direct Drive, Hazardous Location |
| Vent Design | Ductless |
| Ventilation Type | Exhaust |
| Venturi Depth | 4" |
| Venturi Dia. | 20 1/2" |
| Voltage | 115/208-230V |
| Wattage | 373 W |
| Width | 24" |
Shipping Info:
| Ship weight (kg) | 22.5 |
| Ship height (cm) | 45.72 |
| Ship length (cm) | 62.23 |
| Ship width (cm) | 62.23 |
| HS code | 8414596090 |
| Country of Origin | MX |
