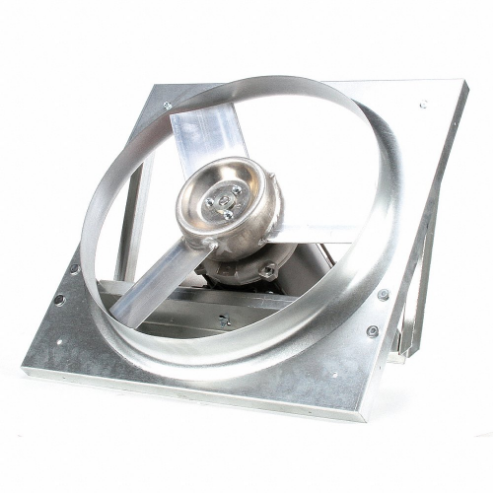

DAYTON 10D999 Exhaust Fan 18 Inch Hazardous Location
Get it by Tuesday, Dec 23
10.00% off
€1.12 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Panel Exhaust Fan |
| Assembled | Assembled |
| Bearing Type | Ball |
| Blade Dia. | 18" |
| Blade Material | Aluminum |
| Cfm @ 0.000-in. Sp | 3168 CFM |
| Cfm @ 0.125-in. Sp | 2912 CFM |
| Cfm @ 0.250-in. Sp | 2612 CFM |
| Cfm @ 0.500-in. Sp | 1599 CFM |
| Dimension A | 22" |
| Dimension B | 9 1/2" |
| Dimension C | 3 1/8" |
| Dimension D | 18 1/2" |
| Drive Package Included | No |
| Drive Package With Motor Included | No |
| Drive Type | Direct Drive |
| Exhaust/supply Fan Item | Exhaust Fan |
| Fan Style | Panel |
| Flange Width | 22" |
| For Cut-out Length | 20 1/2" |
| For Cut-out Width | 20 1/2" |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Hazardous Location Class | Class I, Div 1, Group C and D, Class II, Div 1, Group F and G |
| Height | 22" |
| Housing Finish | Galvanized |
| Housing Material | Steel |
| Includes | Hazardous Location Motor |
| Includes Dehumidistat | No |
| Includes Drive Package With Motor | Yes |
| Includes Grill | No |
| Includes Motor | Yes |
| Max. Ambient Temp. | 104°F |
| Max. Depth | 14 5/16" |
| Max. Exhaust Airflow @ 0.125 In Sp | 2912 CFM |
| Max. Noise Level @ 0.000 In Sp @ 5 Ft | 19.1 sones |
| Maximum Exhaust Airflow @ 0.000 In Sp | 3168 CFM |
| Maximum Exhaust Airflow @ 0.250 In Sp | 2612 CFM |
| Maximum Exhaust Airflow @ 0.375 In Sp | 2219 CFM |
| Maximum Noise Level | 19.1 sones |
| Method Of Construction | Stamped |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Enclosure Design | Explosion Proof Fan Cooled |
| Motor Hp | 1/3 hp |
| Motor Insulation | Class B |
| Motor Insulation Class | Class B |
| Motor Speed | 1750 RPM |
| Mounting Location | Ceiling, Wall |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Position | Horizontal/Vertical |
| Nameplate Voltage | 115/208-230V AC |
| No. Of Blades | 3 |
| Noise Level @ 0.000 In Sp @ 5 Ft | 19.1 sones |
| Noise Level @ 0.125 In Sp @ 5 Ft | 19 sones |
| Number Of Blades | 3 |
| Number Of Fans | 1 |
| Number Of Speeds | 1 |
| Overall Depth | 12 5/8" |
| Overall Height | 22" |
| Overall Width | 22" |
| Phase | 1 |
| Propeller Dia. | 18" |
| Propeller Material | Aluminum |
| Shaft Dia. | 5/8" |
| Sones @ 0.000-in. Sp @ 5 Ft. | 19.1 sones |
| Speed Controllable | No |
| Type | Direct Drive, Hazardous Location |
| Vent Design | Ductless |
| Ventilation Type | Exhaust |
| Venturi Depth | 3" |
| Venturi Dia. | 18 1/2" |
| Voltage | 115/208-230V |
| Wattage | 248 W |
| Width | 22" |
Shipping Info:
| Ship weight (kg) | 19.85 |
| Ship height (cm) | 55.88 |
| Ship length (cm) | 32.07 |
| Ship width (cm) | 55.88 |
| HS code | 8414596090 |
| Country of Origin | MX |
