TECHNIKS Coolant Collets

Filter

TECHNIKS 04545-11

A

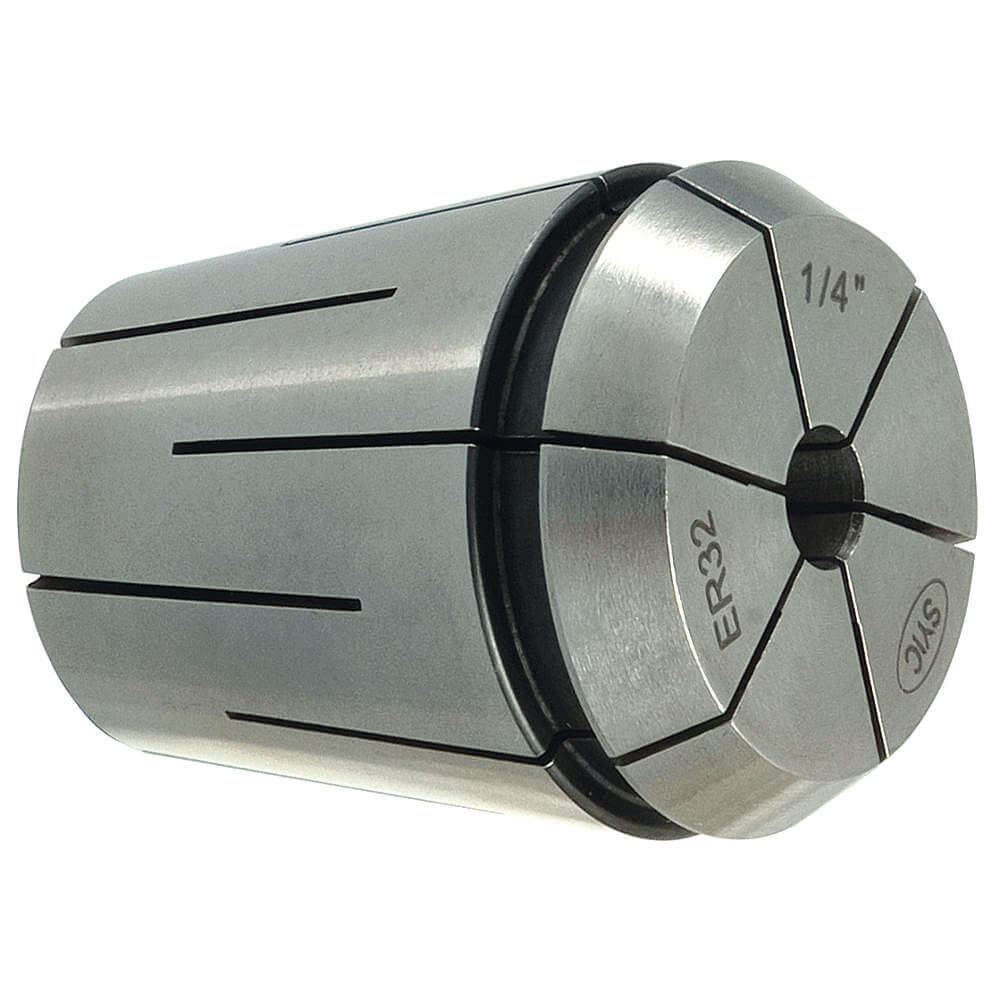

TECHNIKS 04544-5/16

B

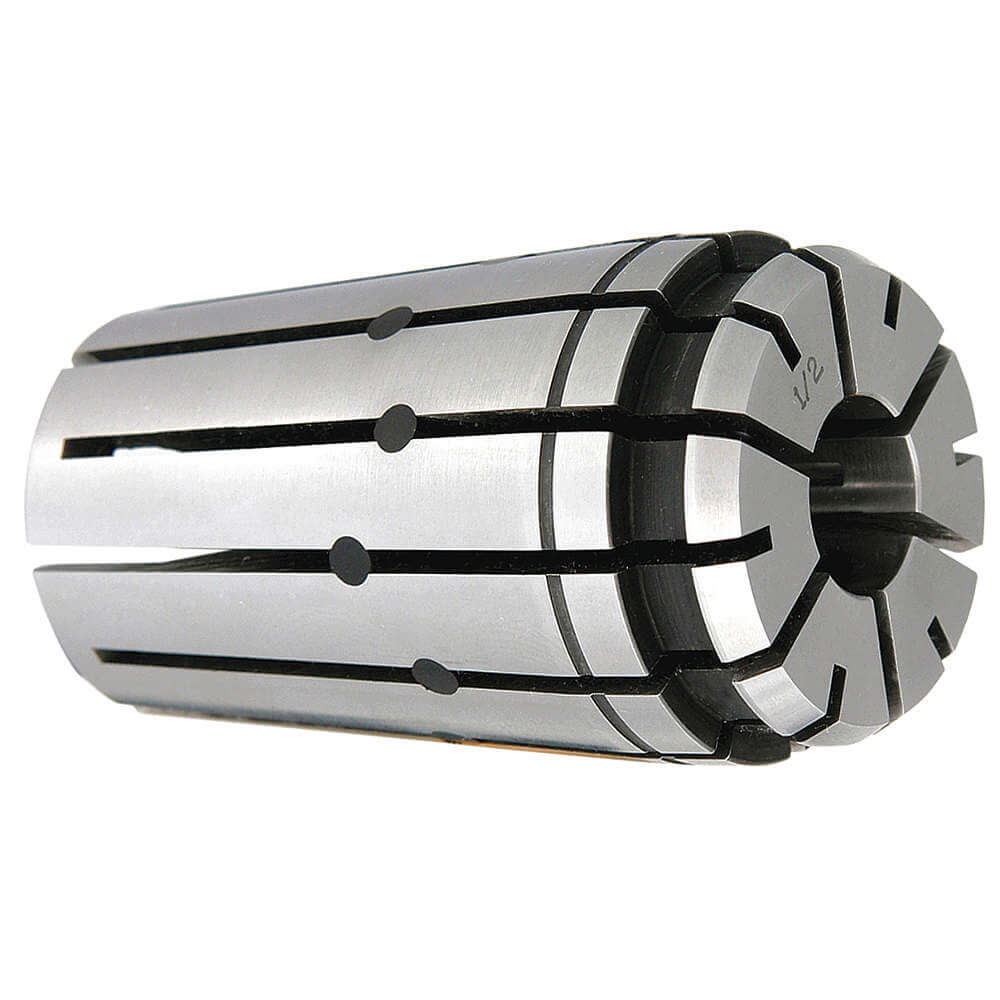

TECHNIKS 84063-1

C

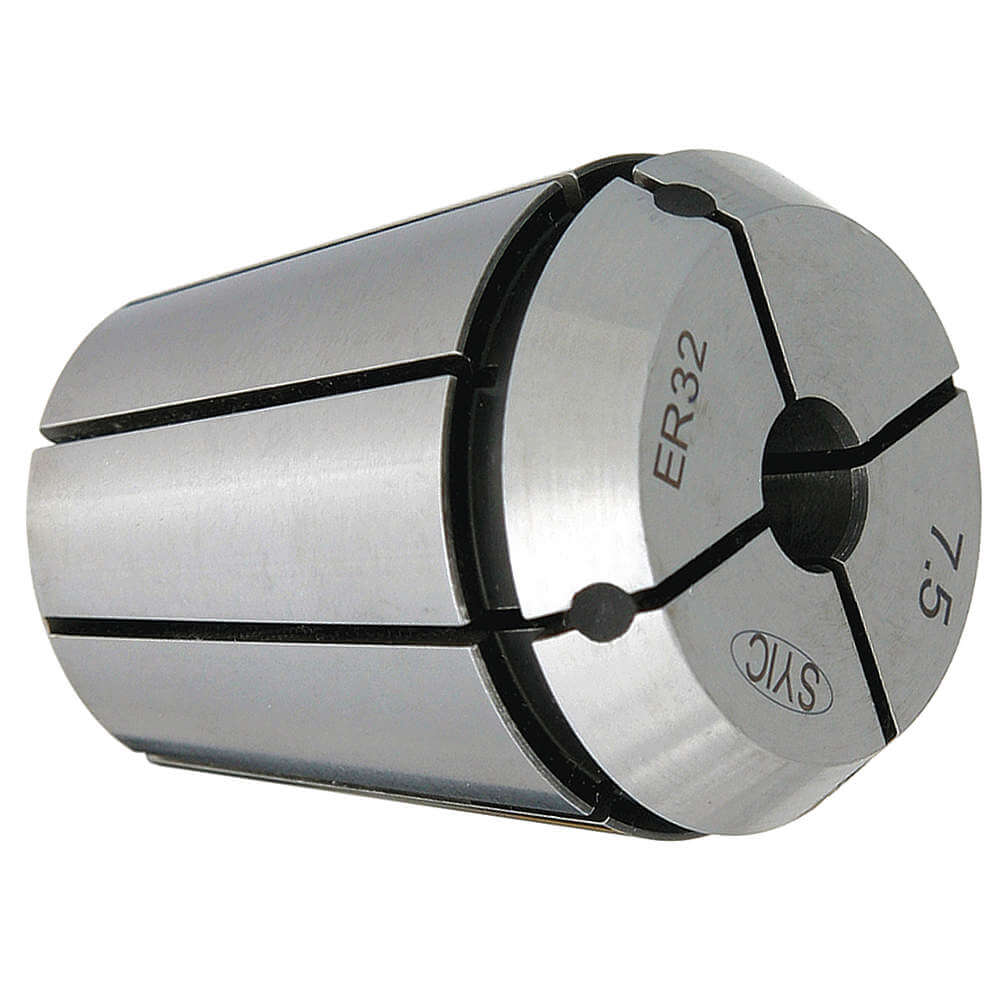

TECHNIKS 08316-10.0

D

Style	Model	Max. Outside Dia.	Max. Body Dia.	Min. Size	Collet Series	Collet Size	Collapse Range	Max. Torque	Collet Type	Price
A	04545-11	-	-	-	ER25	-	-	-	-	€82.24
A	04543-10	-	-	-	ER16	-	-	-	-	€70.70
B	04544-5/16	0.83"	5/16"	-	ER20 Series	5/16"	0.3125"	59 lbs.-ft.	Sealed Coolant	€78.68
B	04546-1/2	1.3"	-	-	ER32 Series	1/2"	1/2"	100 lbs.-ft.	Sealed Coolant	€88.40
B	04546-5/8	1.3"	5/8"	-	ER32 Series	5/8"	0.625"	100 lbs.-ft.	Sealed Coolant	€92.54
B	04546-7/16	1.3"	7/16"	-	ER32 Series	7/16"	0.4375"	100 lbs.-ft.	Sealed Coolant	€92.23
B	04546-3/4	1.3"	3/4"	-	ER32 Series	3/4"	3/4"	100 lbs.-ft.	Sealed Coolant	€90.03
B	04546-11/16	1.3"	11/16"	-	ER32 Series	11/16"	0.6875"	100 lbs.-ft.	Sealed Coolant	€87.97
B	04547-1	1.61"	1"	-	ER40	1"	1"	130 lbs.-ft.	Sealed Coolant	€95.54
C	84063-1	1.379"	1"	-	TG100 Series	1"	1"	90 lbs.-ft.	Sealed Coolant	€92.99
C	84063-5/8	1.379"	5/8"	5/8"	TG100 Series	5/8"	0.625"	90 lbs.-ft.	Sealed Coolant	€92.99
C	84063-3/4	1.379"	3/4"	3/4"	TG100 Series	3/4"	3/4"	90 lbs.-ft.	Sealed Coolant	€92.99
D	08316-10.0	16 mm	-	-	ER16	10 mm	9.5 mm to 10 mm	42 lbs.-ft.	Plug Style Coolant	€70.66
D	08316-08.0	16 mm	-	-	ER16	8 mm	7.5 mm to 8 mm	42 lbs.-ft.	Plug Style Coolant	€70.70

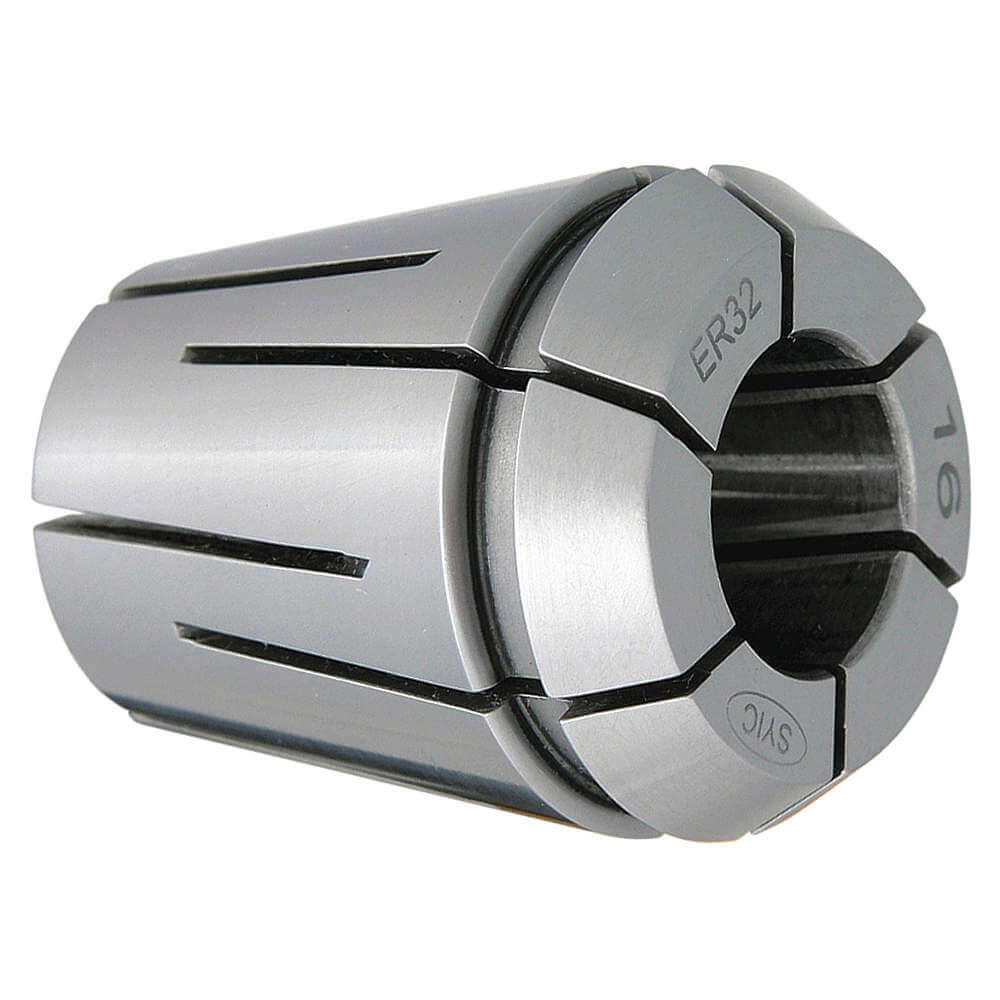

A	04543-06	16 mm	-	-	ER16	6 mm	5.5 mm to 6 mm	42 lbs.-ft.	Sealed Coolant	€69.67
A	04543-08	16 mm	-	-	ER16	8 mm	7.5 mm to 8 mm	42 lbs.-ft.	Sealed Coolant	€71.52
A	04544-06	20 mm	-	-	ER20 Series	6 mm	5.5 mm to 6 mm	59 lbs.-ft.	Sealed Coolant	€74.69
A	04545-12	25 mm	-	-	ER25	12 mm	11 mm to 12 mm	77 lbs.-ft.	Sealed Coolant	€41.72
A	04545-14	25 mm	-	-	ER25	14 mm	13 mm to 14 mm	77 lbs.-ft.	Sealed Coolant	€43.46
D	08325-09.0	25 mm	-	-	ER25	9 mm	8.5 mm to 9 mm	77 lbs.-ft.	Plug Style Coolant	€82.24
A	04546-20	32 mm	-	-	ER32 Series	20 mm	19 mm to 20 mm	100 lbs.-ft.	Sealed Coolant	€87.97
A	04546-16	32 mm	-	-	ER32 Series	16 mm	15 mm to 16 mm	100 lbs.-ft.	Sealed Coolant	€88.89
A	04546-08	32 mm	-	-	ER32 Series	8 mm	7 mm to 8 mm	100 lbs.-ft.	Sealed Coolant	€87.65
A	04546-06	32 mm	-	-	ER32 Series	6 mm	5 mm to 6 mm	100 lbs.-ft.	Sealed Coolant	€93.17
A	04546-18	32 mm	-	-	ER32 Series	18 mm	17 mm to 18 mm	100 lbs.-ft.	Sealed Coolant	€88.07
A	04546-12	32 mm	-	-	ER32 Series	12 mm	11 mm to 12 mm	100 lbs.-ft.	Sealed Coolant	€89.92
A	04546-14	32 mm	-	-	ER32 Series	14 mm	13 mm to 14 mm	100 lbs.-ft.	Sealed Coolant	€91.05
D	08332-12.0	32 mm	-	-	ER32	12 mm	11.5 mm to 12 mm	100 lbs.-ft.	Plug Style Coolant	€94.19
D	08332-10.0	32 mm	-	-	ER32	10 mm	9.5 mm to 10 mm	100 lbs.-ft.	Plug Style Coolant	€88.77
D	08332-08.0	32 mm	-	-	ER32	8 mm	7.5 mm to 8 mm	100 lbs.-ft.	Plug Style Coolant	€88.77
A	04546-10	32 mm	-	-	ER32 Series	10 mm	9 mm to 10 mm	100 lbs.-ft.	Sealed Coolant	€87.48
D	08332-06.0	32 mm	-	-	ER32	6 mm	5.5 mm to 6 mm	100 lbs.-ft.	Plug Style Coolant	€89.88
A	04547-16	40 mm	-	-	ER40	16 mm	15 mm to 16 mm	130 lbs.-ft.	Sealed Coolant	€94.55
