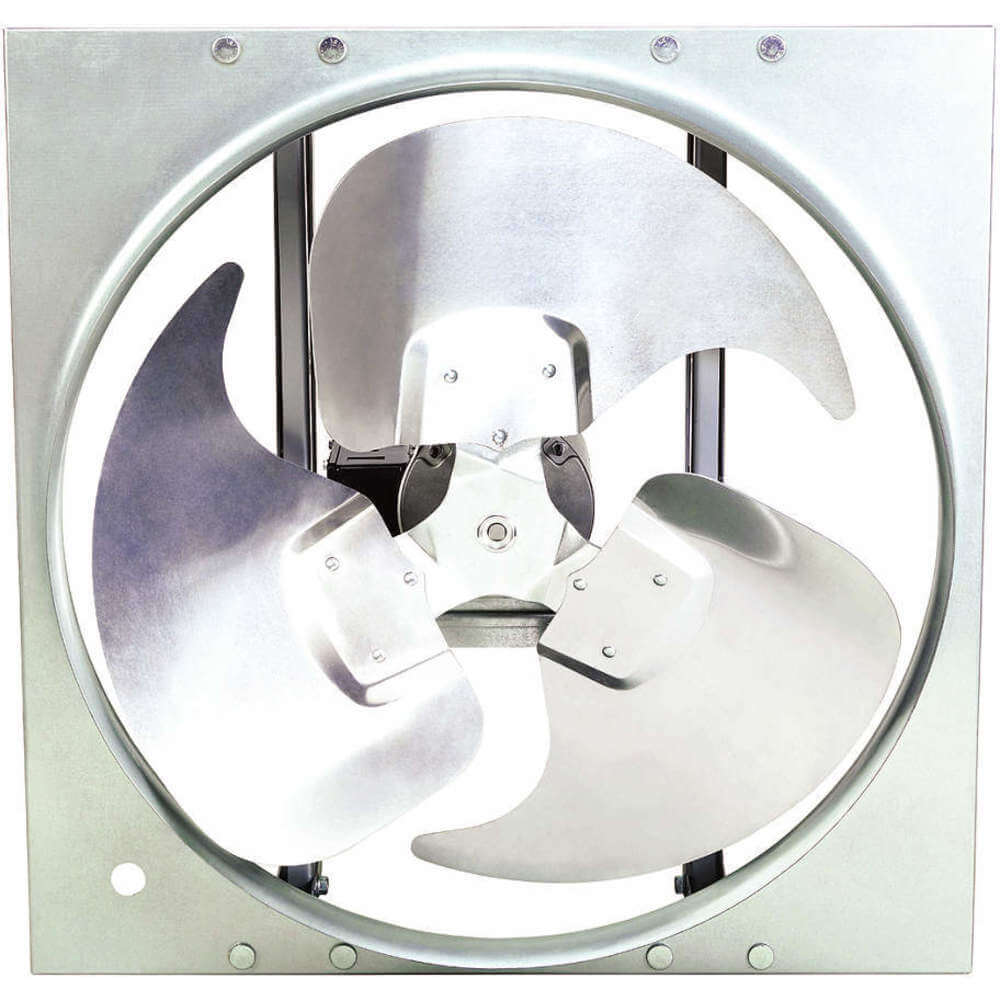

DAYTON 10D978 Exhaust Fan 24 Inch 115/230v
Get it by Monday, Aug 17
5.00% off
€862.05 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Exhaust Fan |
| Assembled | Assembled |
| Bearing Type | Ball |
| Blade Dia. | 24" |
| Blade Material | Aluminum |
| Cfm @ 0.000 In Sp | 4632 CFM |
| Cfm @ 0.125 In Sp | 4196 CFM |
| Cfm @ 0.250 In Sp | 3664 CFM |
| Cfm @ 0.375 In Sp | 2835 CFM |
| Dimensions A | 28" |
| Dimensions B | 8" |
| Dimensions C | 4 1/4" |
| Dimensions D | 24 1/2" |
| Drive Package Included | No |
| Drive Type | Direct Drive |
| Duct Dia. | 24 1/2" |
| Duct Shape | Round |
| Electrical Connection | Hardwired |
| Exhaust/supply Fan Item | Exhaust Fan |
| Exhaust/supply Fan Motor Hp | 1/3 hp |
| Fan Style | Panel |
| Flange Width | 1" |
| For Use With | General Ventilation Applications |
| Frame Finish | Galvanized |
| Frame Material | Steel |
| Full Load Amps | 3.4/1.7A |
| Guard Type | Not Available |
| Height | 28" |
| Housing Material | Steel |
| Included Dehumidistat | No |
| Included Drive Package With Motor | Yes |
| Included Motor | Yes |
| Max. Depth | 12 1/4" |
| Max. Exhaust Airflow @ 0.000 In Sp | 5216 CFM |
| Max. Exhaust Airflow @ 0.125 In Sp | 4622 CFM |
| Max. Exhaust Airflow @ 0.250 In Sp | 3604 CFM |
| Max. Exhaust Airflow @ 0.375 In Sp | 2968 CFM |
| Max. Noise Level | 18 sones |
| Max. Noise Level @ 0.000 In Sp @ 5 Ft. | 18 sones |
| Method Of Construction | Stamped |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Hp | 1/3 hp , 333/1000 hp |
| Motor Insulation | Class B |
| Motor Insulation Class | Class B |
| Motor Speed | 1100 RPM |
| Mounting Location | Wall |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Position | Horizontal, Vertical |
| Nameplate Voltage | 115/230V AC |
| No. Of Blades | 3 |
| No. Of Speed | 1 |
| Noise Level @ 0.000 In Sp @ 5 Ft | 18 sones |
| Overall Depth | 12 1/4" |
| Overall Height | 28" |
| Overall Width | 28" |
| Phase | 1 |
| Propeller Dia. | 24" |
| Propeller Material | Aluminum |
| Sones @ 0.125 In Sp @ 5 Ft. | 13.3 sones |
| Speed Control | No |
| Speed Controllable | No |
| Type | Commercial Direct Drive |
| Vent Design | Ductless |
| Ventilation Type | Exhaust |
| Venturi Depth | 3 1/2" , 3 3/8" |
| Voltage | 115/230V |
| Watts | 248 W |
| Width | 28" |
Shipping Info:
| Ship weight (kg) | 20.3 |
| Ship height (cm) | 71.12 |
| Ship length (cm) | 31.12 |
| Ship width (cm) | 71.12 |
| HS code | 8414596090 |
| Country of Origin | CN |
Product Variants
| Product | Model | Voltage | Phase | Motor Hp | Cfm @ 0.250 In Sp | Full Load Amps | Watts | Cfm @ 0.000 In Sp | Overall Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
10D979 | 115/230V | 1 | 1/2 hp | 3953 CFM | 4.9/2.5A | 373 W | 4686 CFM | 12 7/8" | €955.71 | |
|
10D980 | 208-230/460V | 1 | 1/2 hp | 3953 CFM | 4.9/2.5A | 373 W | 4686 CFM | 12 3/8" | €1,000.15 | |
 |
10D989 | 115/230V | 1 | 1/2 hp | 4961 CFM | 4.9/2.5A | 373 W | 5892 CFM | 10 1/2" | €1,289.89 | |
 |
10D990 | 115/230V | 1 | 3/4 hp | 5905 CFM | 8.1/4.1A | 559 W | 6978 CFM | 11 1/4" | €1,259.75 | |
|
10D991 | 208-230/460V | 3 | 3/4 hp | 5905 CFM | 2.9-3/1.5A | 559 W | 6978 CFM | 10" | €1,343.89 | |
 |
10E046 | 115/230V | 1 | 1/2 hp | 4833 CFM | 4.9/2.5A | 373 W | 5703 CFM | 20" | €1,129.26 | |
|
10E047 | 115/230V | 1 | 3/4 hp | 5390 CFM | 7.3/3.6A | 559 W | 6236 CFM | 20" | €1,160.75 |
