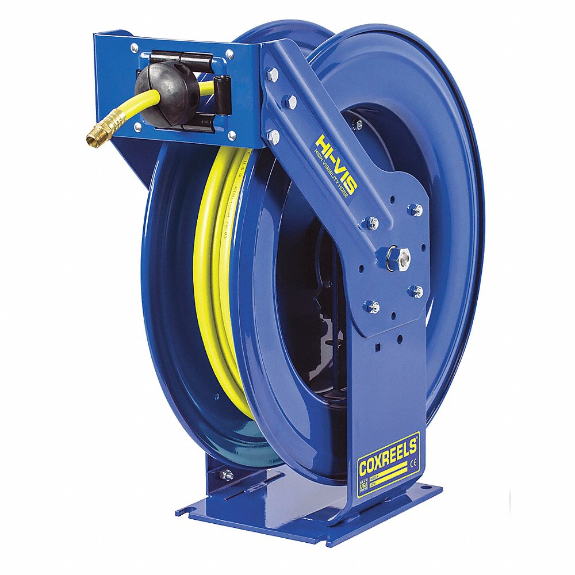

COXREELS TSH-N-3100-HV Spring Return Hose Reel, 100 ft. Length, 3/8 Inch I.D., 3/8 Inch MNPT, Brass, Blue
Get it by Friday, Dec 19
10.00% off
€1,032.27 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hose Reel |
| Base Motion Type | Stationary |
| Base Size | 7" x 8" |
| Bearing Construction | Permanently Lubricated |
| Corrosion-resistant | Yes |
| Drive Type | Spring Return |
| Enclosed | No |
| Fasteners Included | No |
| Features | 1" Solid Steel Axle, External Fluid Path, Heavy Gauge 1/4" Steel Base & Support Post For Maximum Stability, High-Visibility Hose With Gloss Reflective Stripe, Long Lasting & Chip Resistant Rust Inhibiting Cpc Powder Coat Finish, Multi-Position Lock Ratchet Mechanism, Non Corrosive Stainless Steel Pawl Spring, Pawl & Zinc Plated Ratchet, Rolled Edges And Ribbed Discs Provide Strength And Safety, Solid One Piece, Truck Series Tripple Axle Support |
| Fitting Gender | Male x Male |
| Fitting Size | 3/8" x 3/8" |
| Fitting Type | NPT x NPT |
| For Dual Hose | No |
| Height | 25 1/2" |
| Hose Capacity | 100 ft. |
| Hose Color | Yellow |
| Hose Cover Material | Hybrid Rubber, PVC |
| Hose End Configuration | 3/8" MNPT |
| Hose Fitting A Gender | Male |
| Hose Fitting A Material | Brass |
| Hose Fitting A Size | 3/8" |
| Hose Fitting A Type | NPT |
| Hose Fitting B Gender | Male |
| Hose Fitting B Material | Brass |
| Hose Fitting B Size | 3/8" |
| Hose Fitting B Type | NPT |
| Hose Included | Yes |
| Hose Inside Dia. | 3/8" |
| Hose Length | 100 ft. |
| Hose Outside Dia. | 5/8" |
| Hose Reel Primary Application | Air, Water |
| Hose Reel Type | Wall Mount Hose Reel |
| Hose Tube Material | Hybrid Rubber, PVC |
| Includes | Hose Guard, Hose Stop |
| Includes Hose | Yes |
| Includes Hose Stop | Yes |
| Includes Leader Hose | No |
| Latch Type | Locking |
| Length | 24" |
| Max. Pressure | 300 psi |
| Maximum Operating Pressure | 300 psi |
| Maximum Operating Temperature | 150°F |
| Minimum Operating Temperature | -40°F |
| Mount Base Height | 9" |
| Mount Base Width | 8" |
| Mount Hole Diameter | 1/2" |
| Mounting Hole Center To Center Height | 8" |
| Mounting Hole Center To Center Width | 7" |
| Mounting Size | 8" x 9" |
| Number Of Guide Arms | 2 |
| Number Of Mount Holes | 4 |
| Overall Height | 25 1/2" |
| Overall Length | 24" |
| Overall Width | 9 3/8" |
| Pedestal Type | Dual Pedestal |
| Reel Color | Blue |
| Reel Diameter | 24" |
| Reel Finish | Powder Coated |
| Reel Material | Steel |
| Speed Limited Retraction | No |
| Spiral Hose Guard | No |
| Swivel Inlet Gender | Female |
| Swivel Inlet Thread Size | 3/8" |
| Swivel Inlet Type | NPT |
| Swivel Material | Brass |
| Swivel Outlet Gender | Female |
| Swivel Outlet Size | 3/8" |
| Swivel Outlet Type | Fixed |
| Twin Hose Compatible | No |
| Weight | 85 lbs. |
| Width | 9 3/8" |
Shipping Info:
| Ship weight (kg) | 38.25 |
| Ship height (cm) | 64.77 |
| Ship length (cm) | 60.96 |
| Ship width (cm) | 23.83 |
| Country of Origin | US |
Product Details:
- High Visibilty
Product Variants
| Model | Hose Capacity | Fitting Size | Speed Limited Retraction | Number Of Guide Arms | Overall Length | Overall Width | Hose Outside Dia. | Hose Inside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| P-LP-325-HV | 25 ft. | 3/8" x 3/8" | No | 1 | 13 3/4" | 6 1/4" | 5/8" | 3/8" | €465.47 | |
| P-LP-350-HV | 50 ft. | 3/8" x 3/8" | No | 1 | 17 1/8" | 6 3/4" | 5/8" | 3/8" | €657.41 | |
| P-LP-425-HV | 25 ft. | 1/2" x 1/2" | No | 1 | 17 1/8" | 7" | 13/16" | 1/2" | €567.16 | |
| P-LP-450-HV | - | - | - | - | 17.33" | - | - | - | €810.80 | |
| SH-N-3100-HV | 100 ft. | 3/8" x 3/8" | No | 1 | 24" | 8 1/4" | 5/8" | 3/8" | €1,112.71 | |
| SH-N-350-HV | - | - | - | - | 19 1/2" | 8 1/4" | - | - | €838.22 | |
| SH-N-375-HV | 75 ft. | 3/8" x 3/8" | No | 1 | 24" | 8 1/4" | 5/8" | 3/8" | €916.34 |
