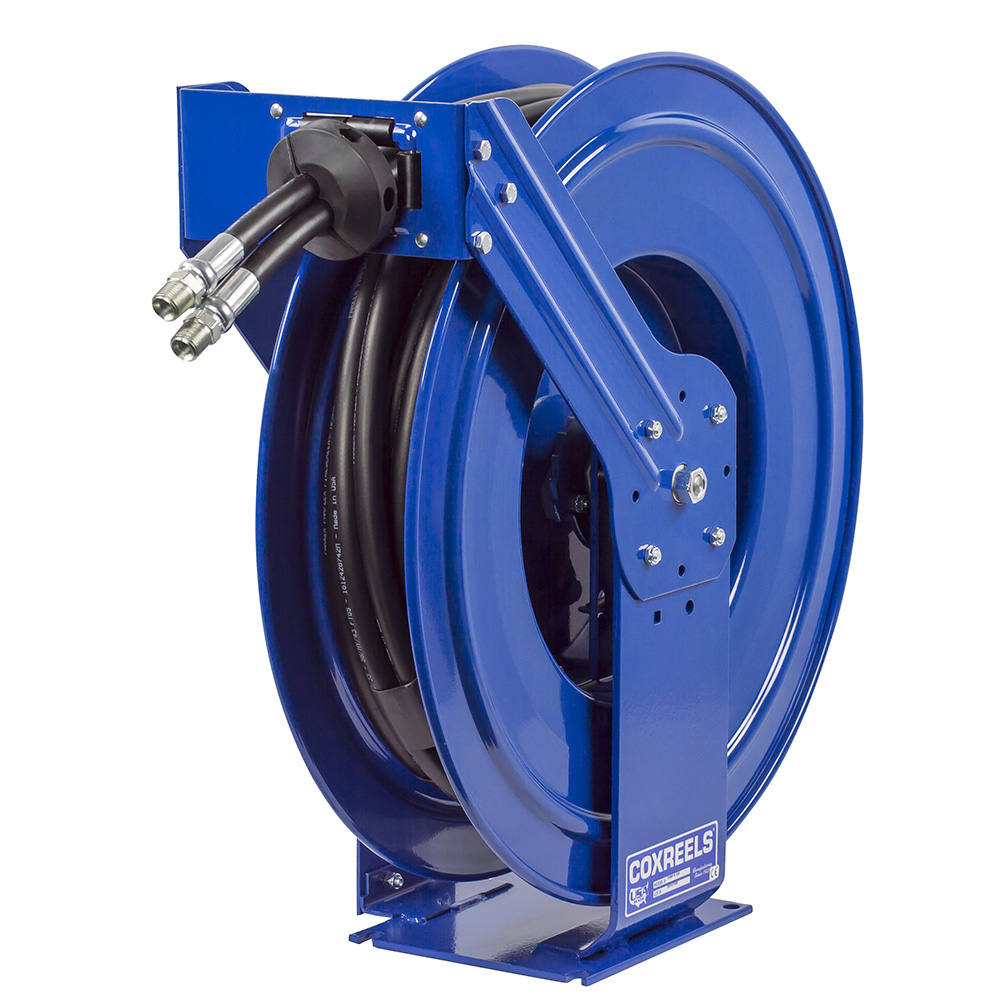

COXREELS TDMP-N-450 Dual Reel Spring Return Hose Reel, 50 ft. Hose Length, 1/2 Inch MNPT, Blue
Get it by Wednesday, Aug 26
5.00% off
€2,143.30 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hose Reel |
| Base Motion Type | Stationary |
| Base Size | 8" x 9" |
| Bearing Type | Permanently Lubricated |
| Combination Type | Hydraulic, Hydraulic |
| Cord Included | No |
| Drive Type | Spring Return |
| Enclosed Reel | No |
| Fasteners Included | No |
| Features | Cartridge Motor, Cnc Spun Ribbed And Beaded Discs, Dual Support Reel, External Fluid Path With Dual Port Swivel On One Side Of Reel, Multi Position Guide Arm |
| Feeder Cord Ending | None |
| Finish | Powder Coating |
| Fitting Gender | Male x Male |
| Fitting Size | 1/2" x 1/2" |
| Fitting Type | NPT x NPT |
| For Dual Hose | Yes |
| Height | 25 1/2" |
| Hose 1 Color | Black |
| Hose 1 Cover Material | Synthetic Rubber |
| Hose 1 Fitting A Gender | Male |
| Hose 1 Fitting A Material | Steel |
| Hose 1 Fitting A Size | 1/2" |
| Hose 1 Fitting A Type | NPT |
| Hose 1 Fitting B Gender | Male |
| Hose 1 Fitting B Material | Steel |
| Hose 1 Fitting B Size | 1/2" |
| Hose 1 Fitting B Type | NPT |
| Hose 1 Inside Dia. | 1/2" |
| Hose 1 Length | 50 ft. |
| Hose 1 Tube Material | Nitrile |
| Hose 2 Color | Black |
| Hose 2 Cover Material | Synthetic Rubber |
| Hose 2 Fitting A Gender | Male |
| Hose 2 Fitting A Material | Steel |
| Hose 2 Fitting B Gender | Male |
| Hose 2 Fitting B Material | Steel |
| Hose 2 Inside Dia. | 1/2" |
| Hose 2 Length | 50 ft. |
| Hose Capacity | 50 ft. |
| Hose Color | Blue |
| Hose End Configuration | 1/2" MNPT x 1/2" MNPT |
| Hose Included | Yes |
| Hose Inside Dia. | 1/2" |
| Hose Length | 50 ft. |
| Hose Outside Dia. | 13/16" |
| Hose Reel Primary Application | Hydraulic Oil |
| Hose Reel Type | Wall Mount Hose Reel |
| Hose Return Speed Control | No |
| Housing Material | Steel |
| Included | (2) Hose, (2) Hose Guard, (2) Hose Stop |
| Included Cord | No |
| Included Hose Stop | Yes |
| Included Leader Hose | No |
| Latch Type | Locking |
| Length | 24" |
| Max. Operating Pressure | 2500 psi |
| Max. Operating Temp. | 212°F |
| Min. Operating Temp. | -40°F |
| Mount Base Height | 9" |
| Mount Base Width | 8" |
| Mount Hole Dia. | 1/2" |
| Mounting | Ceiling, Floor, Vehicle, Wall |
| Mounting Hole Center To Center Height | 8" |
| Mounting Hole Center To Center Width | 7" |
| Mounting Size | 7" x 8" |
| No. Of Guide Arms | 2 |
| No. Of Mounting Holes | 4 |
| No. Of Outlets | 2 |
| Overall Height | 25 1/2" |
| Overall Length | 24" |
| Overall Width | 11 5/8" |
| Pedestal Type | Dual Pedestal |
| Product Datasheet | coxreels-tdmp-n-450.pdf |
| Reel Color | Blue |
| Reel Dia. | 24" |
| Reel Finish | Powder Coated |
| Reel Material | Steel |
| Reel Width | 11 5/8" |
| Seal Material | PTFE |
| Speed Limited Retraction | No |
| Spiral Hose Guard | No |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 1/2" |
| Swivel Inlet Thread Size | 1/2" |
| Swivel Inlet Type | ORB |
| Swivel Material | Zinc Plated Steel |
| Swivel Outlet Gender | Female |
| Swivel Outlet Size | 1/2" |
| Swivel Outlet Thread Size | 1/2" |
| Swivel Outlet Type | NPT |
| Width | 11 5/8" |
Shipping Info:
| Ship weight (kg) | 47.7 |
| Ship height (cm) | 64.77 |
| Ship length (cm) | 60.96 |
| Ship width (cm) | 29.54 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Hose Inside Dia. | Swivel Material | Overall Width | Mounting | Hose Included | Housing Material | Overall Height | Mounting Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

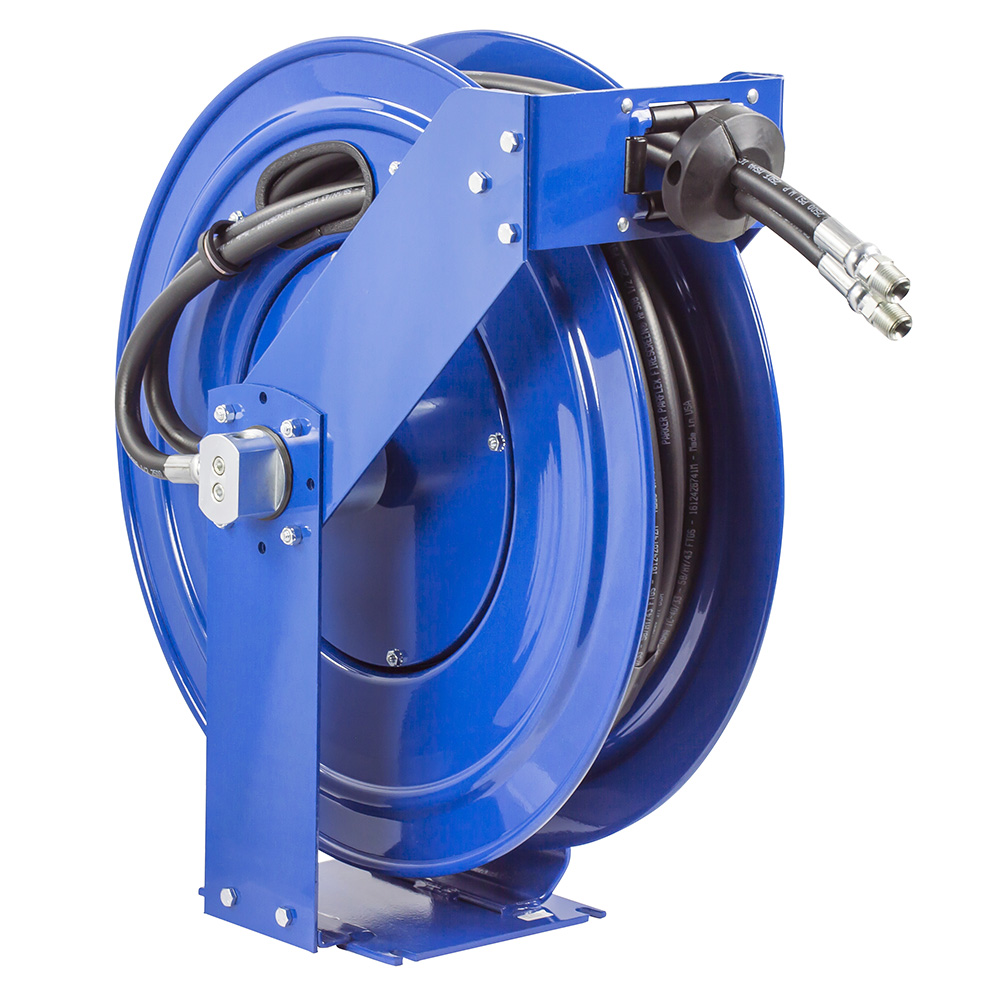

| TDMP-N-350 | 3/8" | Brass | - | Bench, Floor, Truck, Wall | Yes | Steel | 25 1/2" | 7" x 8" | €2,605.21 | |

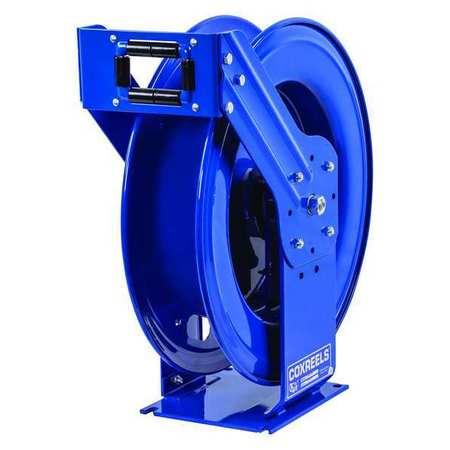

| TDMPL-N-350 | 3/8" | Copper | 11.63" | Bench, Floor, Truck, Wall | No | Steel | 25 1/2" | 7" x 8" | €1,106.03 | |
| TDMPL-N-450 | 1/2" | - | 11.63" | Bench, Floor, Truck, Wall | No | Steel | 25 1/2" | 7" x 8" | €1,882.82 |
