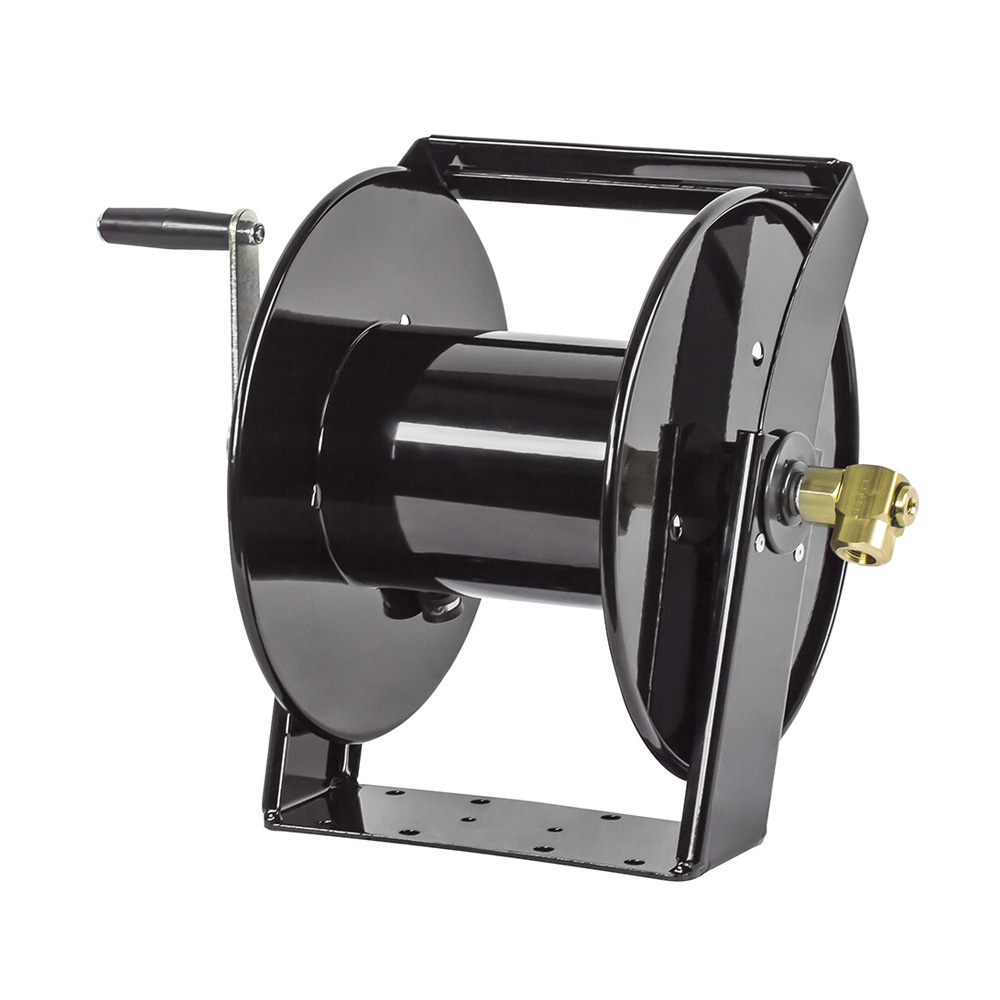

COXREELS SM17-3-250 Hand Crank Hose Reel, 250 ft., 3/8 Inch I.D., 17 x 18 1/4 x 18 1/2 Inch Size, FKM
Get it by Wednesday, Dec 24
10.00% off
€443.44 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hand Crank Hose Reel |
| Base Motion Type | Stationary |
| Base Size | 10.25" x 4" |
| Bearing Construction | EPDM |
| Drive Type | Hand Crank |
| Duty Rating | Medium Duty |
| Enclosed Reel | No |
| Fasteners Included | No |
| Features | Adjustable Tension Brake, Cnc Spun Discs, Control Bar, Designed For Swivel Mount (Sold Separately) Heavy Duty Steel Construction |
| For Dual Hose | No |
| Handle Length | 3 1/2" |
| Height | 18 1/2" |
| Hose Capacity | 250 ft. |
| Hose Included | No |
| Hose Inside Dia. | 3/8" |
| Hose Length | 250 ft. |
| Hose Outside Dia. | 5/8" |
| Hose Reel Primary Application | Air, Chemical Fluid Transfer, Pest Control, Pressure Washer, Spraying Operation, Washdown, Water |
| Hose Reel Type | Wall Mount Hose Reel |
| Includes Gooseneck | No |
| Includes Leader Hose | No |
| Length | 17" |
| Max. Pressure | 4000 psi |
| Maximum Operating Temperature | 225°F |
| Minimum Operating Temperature | -40°F |
| Mount Base Height | 4" |
| Mount Base Width | 10 1/4" |
| Mount Hole Diameter | 1/2" |
| Mounting | Bench, Floor, Truck, Wall |
| Mounting Hole Center To Center Height | 3" |
| Mounting Size | 7" x 3" |
| Number Of Mount Holes | 8 |
| Number Of Mounting Holes | 8 |
| Overall Height | 18 1/2" |
| Overall Length | 17" |
| Overall Width | 18 1/4" |
| Reel Color | Black |
| Reel Diameter | 17" |
| Reel Finish | Powder Coated |
| Reel Material | Steel |
| Reel Width | 10 1/4" |
| Seal Material | FKM |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 3/8" |
| Swivel Inlet Thread Size | 3/8" |
| Swivel Inlet Type | NPT |
| Swivel Material | Brass |
| Swivel Outlet Gender | Female |
| Swivel Outlet Size | 3/8" |
| Swivel Outlet Thread Size | 3/8" |
| Swivel Outlet Type | NPT |
| Weight | 26 lbs. |
| Width | 18 1/4" |
Shipping Info:
| Ship weight (kg) | 8.55 |
| Ship height (cm) | 46.99 |
| Ship length (cm) | 43.18 |
| Ship width (cm) | 48.26 |
| Country of Origin | US |
Product Details:
- Swivel Mount
Product Variants
| Product | Model | Mounting | Hose Capacity | Hose Length | Hose Outside Dia. | Hose Inside Dia. | Reel Width | Seal Material | Swivel Inlet Thread Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

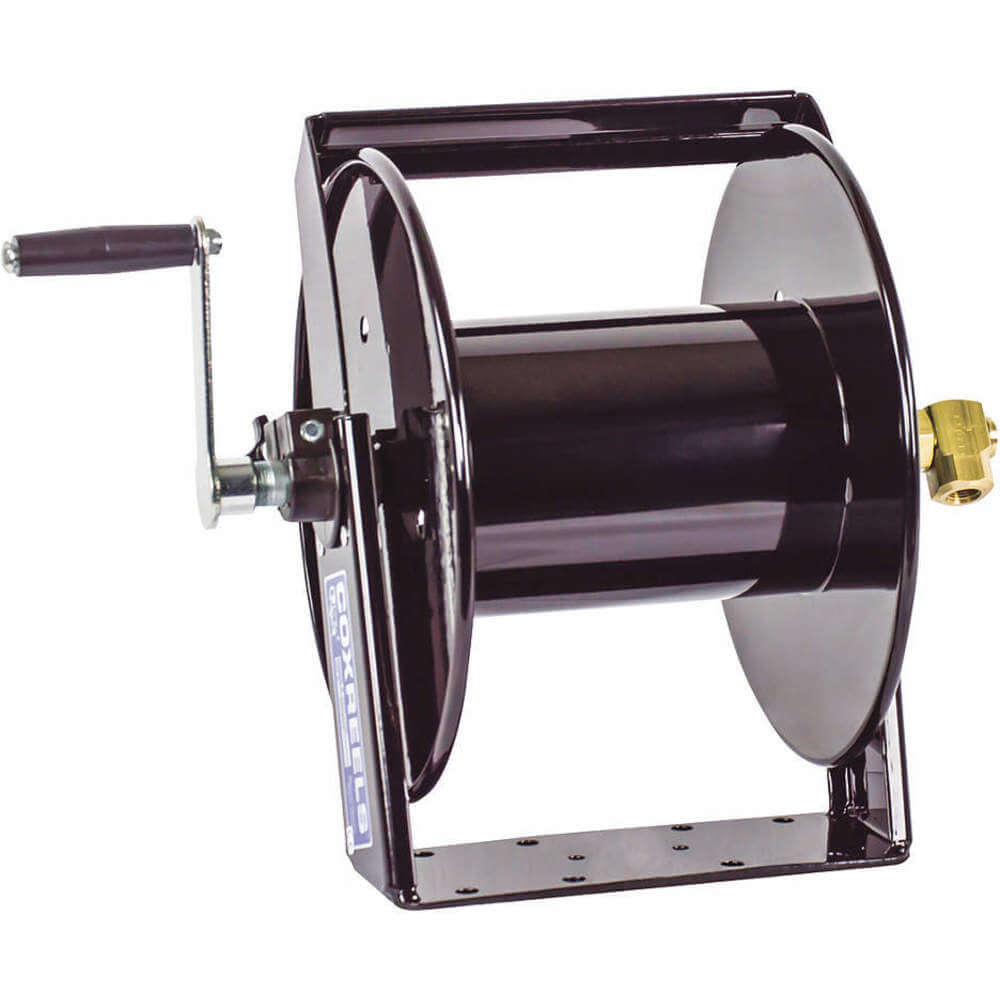

SM17-4-125 | Wall | 125 ft. | 125 ft. | 7/8" | 1/2" | 8" | Viton | 1/2" | €496.54 |
