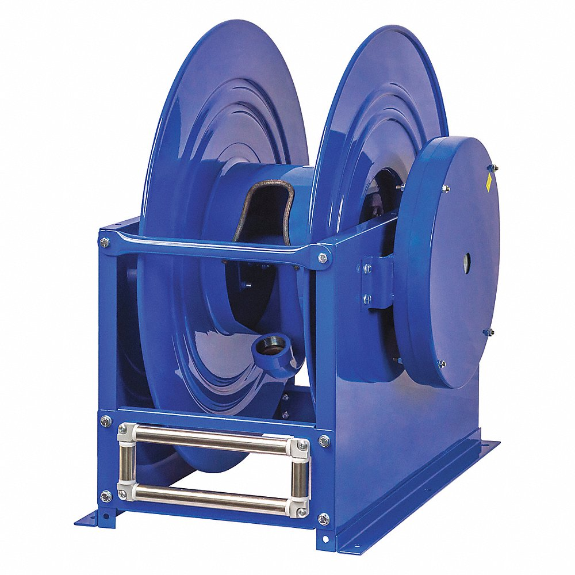

COXREELS SLPL-650 Spring Return Hose Reel, 50 ft. Length, 1 Inch I.D., Nickel Plated Steel, Blue
Get it by Friday, Jul 3
5.00% off
€1,431.62 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Spring Return Hose Reel |
| Base Motion Type | Stationary |
| Base Size | 15.38" x 25" |
| Bearing Type | Permanently Lubricated |
| Corrosion Resistance | Yes |
| Corrosion Resistant | Yes |
| Drive Type | Spring Return |
| Enclosed Reel | No |
| Fasteners Included | No |
| Features | Chip Resistant, External Fluid Path, Multi-Position Lock Ratchet Mechanism Secures Hose At Desired Length, Non-Corrosive Stainless Steel Pawl Spring, Pawl/Zinc Plated Ratchet, Rolled Edges And Ribbed Discs Provide Strength And Safety |
| Finish | Powder Coating |
| For Dual Hose | No |
| Height | 24 1/2" |
| Hose Capacity | 50 ft. |
| Hose Color | Blue |
| Hose Included | No |
| Hose Inside Dia. | 1" |
| Hose Length | 50 ft. |
| Hose Outside Dia. | 1 1/2" |
| Hose Reel Primary Application | Oil |
| Hose Reel Type | Wall Mount Hose Reel |
| Housing Material | Steel |
| Included | Safety Series Heavy Duty Fuel Hose Reel - Spring Rewind Hose Reel - Low Pressure Hose Reel - Fuel Hose Reel - Retractable Reel |
| Included Leader Hose | No |
| Latch Type | Locking |
| Length | 26 3/8" |
| Max. Operating Pressure | 300 psi |
| Max. Operating Temp. | 150°F |
| Max. Pressure | 300 psi |
| Media | Fuel, Water |
| Min. Operating Temp. | -40°F |
| Mount Base Height | 15 3/8" |
| Mount Base Width | 25" |
| Mount Hole Dia. | 1/2" |
| Mounting Hole Center To Center Height | 22" |
| Mounting Hole Center To Center Width | 14" |
| Mounting Size | 14" x 22" |
| No. Of Mounting Holes | 6 |
| Overall Height | 24 1/2" |
| Overall Length | 26 3/8" |
| Overall Width | 19 5/8" |
| Pedestal Type | Dual Pedestal |
| Product Datasheet | coxreels-slpl-650.pdf |
| Reel Color | Blue |
| Reel Dia. | 26 3/8" |
| Reel Finish | Powder Coated |
| Reel Material | Steel |
| Reel Width | 19 5/8" |
| Seal Material | Nitrile |
| Speed Limited Retraction | No |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 1" |
| Swivel Inlet Thread Size | 1"-11.5 |
| Swivel Inlet Type | NPT |
| Swivel Material | Nickel Plated Steel |
| Swivel Outlet Gender | Female |
| Swivel Outlet Size | 1" |
| Swivel Outlet Thread Size | 1"-11 1/2 |
| Swivel Outlet Type | NPT |
| Twin Hose Compatible | No |
| Vacuum | 29 in. hg |
| Width | 19 5/8" |
Shipping Info:
| Ship weight (kg) | 49.05 |
| Ship height (cm) | 62.23 |
| Ship length (cm) | 67.01 |
| Ship width (cm) | 49.86 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Hose Included | Swivel Material | Hose Capacity | Overall Length | Mounting Size | Base Size | Hose Outside Dia. | Hose Inside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| SLP-4100 | Yes | Brass | - | 22 22/25" | 14" x 18.5" | 15.38" x 21.5" | 3/4" | 1/2" | €1,093.09 | |
| SLP-5100 | Yes | Brass | 100 ft. | 26 3/8" | 14" x 22" | 15.38" x 25" | 1 1/16" | 3/4" | €1,828.22 | |
| SLP-550 | Yes | Brass | 50 ft. | 22 7/8" | 14" x 18.5" | 15.38" x 21.5" | 1 1/16" | 3/4" | €1,438.92 | |
| SLP-575 | Yes | Brass | - | 26.38" | 14" x 22" | 15.38" x 25" | 1 1/16" | 3/4" | €1,234.46 | |
| SLP-625 | Yes | - | - | 22 22/25" | 14" x 18.5" | 15.38" x 21.5" | 1 1/2" | 1" | €1,442.07 | |
| SLP-650 | Yes | - | - | 26.38" | 14" x 22" | 15.38" x 25" | 1 1/2" | 1" | €1,287.13 | |
| SLP-675 | Yes | Brass | 75 ft. | 30 3/8" | 14" x 26" | 15.38" x 29" | 1 1/2" | 1" | €1,968.03 |
