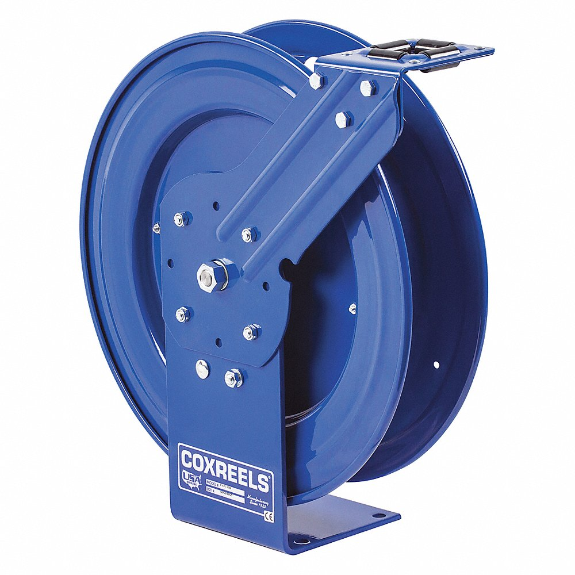

COXREELS P-LPL-325 Spring Return Hose Reel, 25 ft. Length, 3/8 Inch I.D., Brass, Blue
Get it by Tuesday, Dec 23
10.00% off
€355.11 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Spring Return Hose Reel |
| Base Motion Type | Stationary |
| Base Size | 5" x 6" |
| Bearing Type | Permanently Lubricated |
| Corrosion Resistance | Yes |
| Corrosion-resistant | Yes |
| Drive Type | Spring Return |
| Enclosed Reel | No |
| Fasteners Included | No |
| Features | Chip Resistant, External Fluid Path, Multi-Position Lock Ratchet Mechanism Secures Hose At Desired Length, Non-Corrosive Stainless Steel Pawl Spring, Pawl/Zinc Plated Ratchet, Rolled Edges And Ribbed Discs Provide Strength And Safety |
| Finish | Powder Coated |
| For Dual Hose | No |
| Height | 14 7/8" |
| Hose Capacity | 25 ft. |
| Hose Color | Blue |
| Hose Included | No |
| Hose Inside Dia. | 3/8" |
| Hose Outside Dia. | 5/8" |
| Hose Reel Primary Application | Air, Water |
| Hose Reel Type | Wall Mount Hose Reel |
| Housing Material | Steel |
| Includes | Low Pressure Performance Hose Reel - Spring Rewind Hose Reel - Low Pressure Hose Reel - Retractable Hose Reel - Air Compressor Reel |
| Includes Leader Hose | No |
| Latch Type | Locking |
| Length | 13 1/2" |
| Max. Pressure | 300 psi |
| Maximum Operating Pressure | 300 psi |
| Maximum Operating Temperature | 150°F |
| Media | Air, Oil, Water |
| Minimum Operating Temperature | -40°F |
| Mount Base Height | 6" |
| Mount Base Width | 5" |
| Mount Hole Diameter | 1/2" |
| Mounting Hole Center To Center Height | 5" |
| Mounting Hole Center To Center Width | 3" |
| Mounting Size | 3" x 5" |
| Number Of Guide Arms | 1 |
| Number Of Mounting Holes | 4 |
| Overall Height | 14 7/8" |
| Overall Length | 13 1/2" |
| Overall Width | 6 1/2" |
| Pedestal Type | Single Pedestal |
| Product Datasheet | coxreels-p-lpl-325.pdf |
| Reel Color | Blue |
| Reel Diameter | 13 1/2" |
| Reel Finish | Powder Coated |
| Reel Material | Steel |
| Reel Width | 6 1/2" |
| Seal Material | Nitrile |
| Speed Limited Retraction | No |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 3/8" |
| Swivel Inlet Thread Size | 3/8"-18 |
| Swivel Inlet Type | NPT |
| Swivel Material | Brass |
| Swivel Outlet Gender | Female |
| Swivel Outlet Size | 3/8" |
| Swivel Outlet Thread Size | 3/8"-18 |
| Swivel Outlet Type | NPT |
| Twin Hose Compatible | No |
| Vacuum Rating | 29 in. hg |
| Weight | 25 lbs. |
| Width | 6 1/2" |
Shipping Info:
| Ship weight (kg) | 11.25 |
| Ship height (cm) | 37.8 |
| Ship length (cm) | 34.29 |
| Ship width (cm) | 16.51 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Hose Included | Hose Capacity | Fitting Size | Mounting Size | Base Size | Overall Length | Overall Width | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| P-LP-110 | Yes | - | - | 3" x 5" | 5" x 6" | 13 1/2" | 5 22/25" | 14 22/25" | €248.67 | |
| P-LP-115 | Yes | - | - | 3" x 5" | 5" x 6" | 13 1/2" | - | - | €253.76 | |
| P-LP-125 | - | - | - | 3" x 5" | 5" x 6" | 13 1/2" | 5 22/25" | 14 22/25" | €285.36 | |
| P-LP-130 | Yes | - | - | 3" x 5" | 5" x 6" | 13 1/2" | 5 22/25" | - | €298.60 | |
| P-LP-135 | - | - | - | 3" x 5" | 5" x 6" | 13 1/2" | - | - | €390.72 | |
| P-LP-140 | Yes | - | - | 4" x 5" | 6" x 6" | 17.13" | 6 3/4" | - | €365.86 | |
| P-LP-150 | - | - | - | 4" x 5" | 6" x 6" | 17.13" | 6 3/4" | - | €386.25 |
