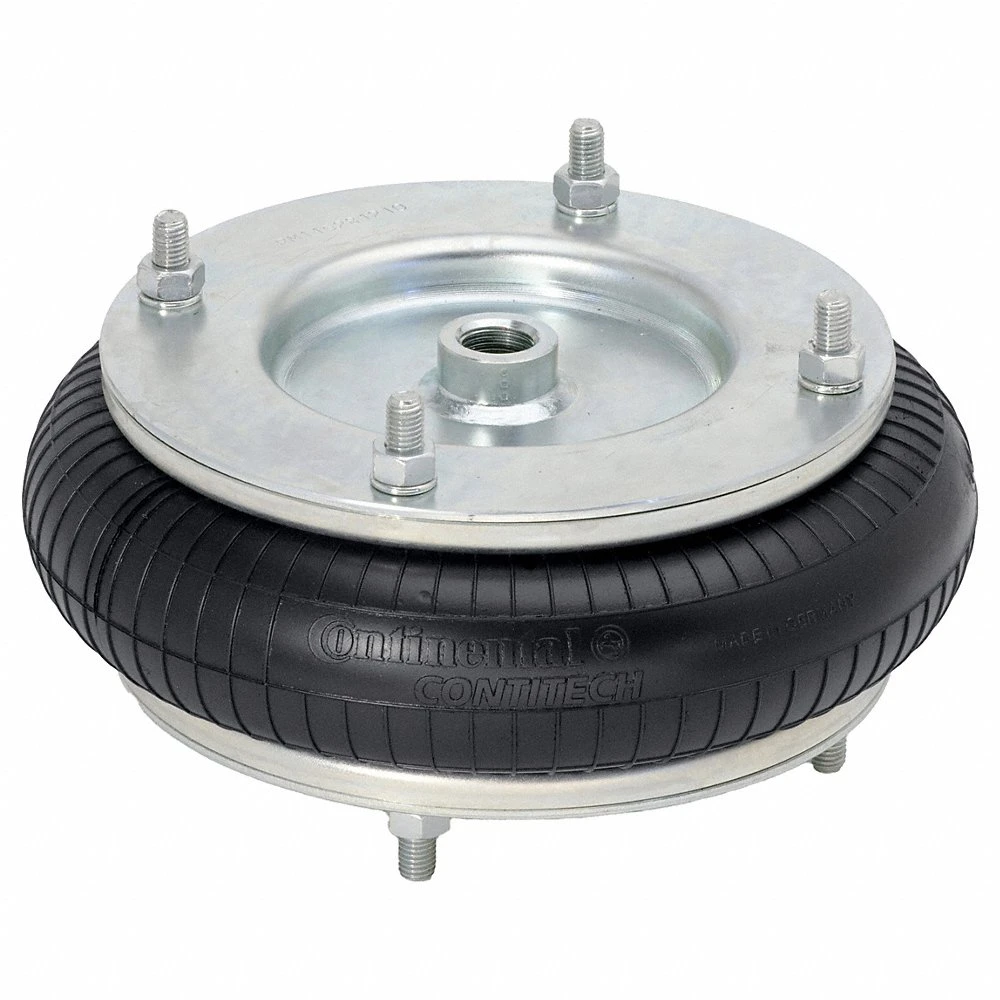

CONTINENTAL FS1388DS Single Convolution Air Actuator, Chloroprene, 60 mm Compressed Ht, 120 mm Extended Ht
Item: EA7RFMModel: FS1388DSCross Ref: 817UN5
7 In Stock
Ships within 2 days via
€267.89 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mechanical |
| Air Inlet | 1/2" |
| Air Inlet Location | Center |
| Air Spring Material | Chloroprene |
| Air Spring Type | Single Convoluted |
| Full Stroke Height | 120 mm |
| Height-compressed | 60 mm |
| Max. Compressed Dia. | 230 mm |
| Max. Dynamic Load Capacity | 13.2 kN @ 7 Bar, 7.2 kN @ 4 Bar, 9.1 kN @ 5 Bar, 11.1 kN @ 6 Bar, 15.3 kN @ 8 Bar, 5.3 kN @ 3 Bar |
| Pressure | 0 psi to 120 psi |
| System Of Measurement | Metric |
| Temp. | -22°F to +194°F |
Shipping Info:
| Ship weight (kg) | 3.08 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 39.37 |
| Ship width (cm) | 26.67 |
| Country of Origin | MX |
