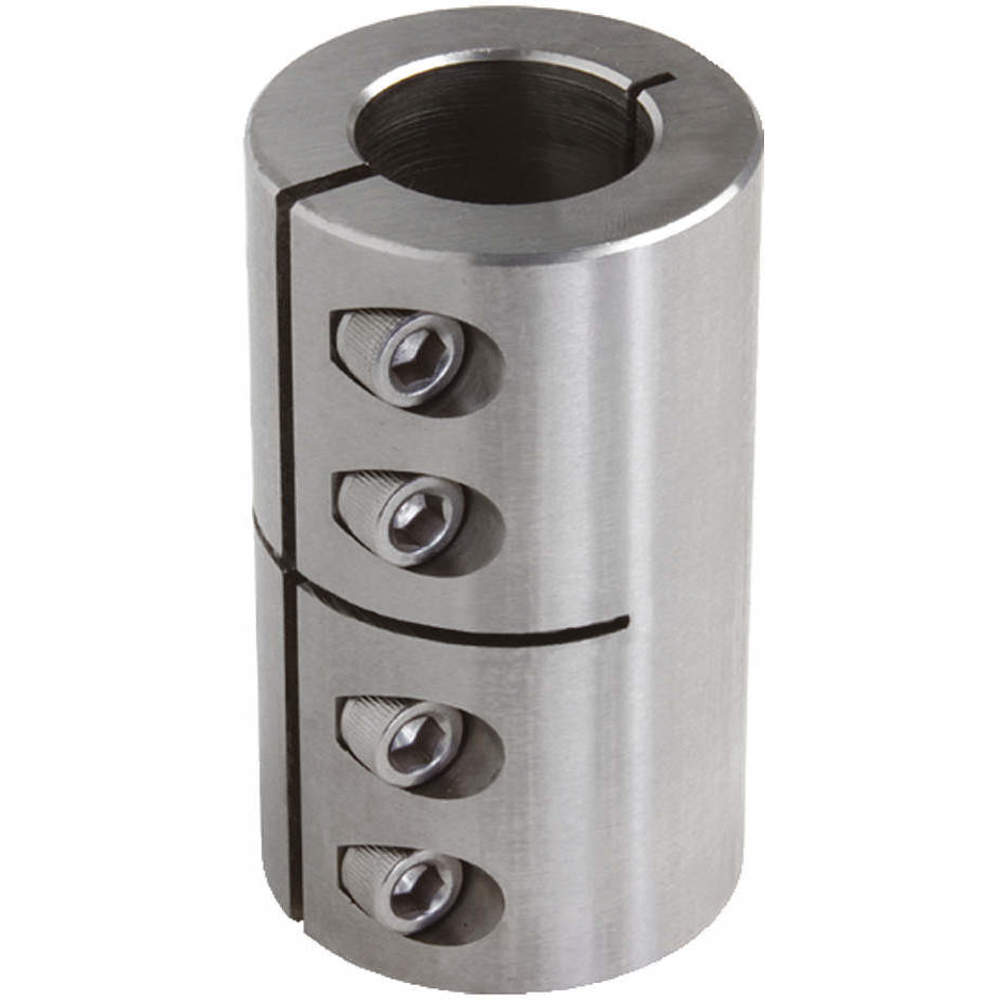

CLIMAX METAL PRODUCTS ISCC-112-112-S Coupling Rigid Steel
Item: AF8YRRModel: ISCC-112-112-SCross Ref: 29NL10
7 In Stock
Ships within 2 days via
10.00% off
€331.99 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rigid Shaft Coupling |
| Bore Diameter 1 | 1 1/8" |
| Bore Diameter 2 | 1 1/8" |
| Bore Tolerance | -0" to +0.003" |
| Bore Type | Round |
| Clearance Dia. | 2.188" |
| Clearance Diameter | 2.19" |
| Coupling Construction | One-Piece |
| Coupling Material | Stainless Steel |
| Coupling Material Finish | Plain |
| Coupling Material Grade | Grade 303 |
| Coupling Outside Diameter | 1 7/8" |
| Different Bore Sizes | No |
| Included Screws | (4) Hex Socket Cap Screw |
| Material | Stainless Steel |
| Max. Rpm | 4000 RPM |
| Max. Torque | 1490 lbs.-in. |
| Maximum Bore Diameter | 1 1/8" |
| Number Of Locking Screws | 4 |
| Outside Dia. | 2.187" |
| Overall Length | 3 1/8" |
| Rated Torque | 1490 lbs.-in. |
| Screw Material | Stainless Steel |
| Screw Material Finish | Plain |
| Screw Material Grade | Grade 304 |
| Screw Thread Size | 1/4"-28 |
| Shaft Locking Type | Clamp On |
| System Of Measurement | Imperial |
| Type | One Piece Clamp, Without Keyway |
| Zero Backlash | Yes |
Shipping Info:
| Ship weight (kg) | 0.62 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 4.78 |
| Ship width (cm) | 4.78 |
| HS code | 8483608000 |
| Country of Origin | US |
Product Variants
| Model | Clearance Dia. | Bore Diameter 1 | Bore Diameter 2 | Coupling Outside Diameter | Overall Length | Coupling Material | Max. Torque | Screw Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| ISCC-050-050SKW | 1 3/8" | 1/2" | 1/2" | 1 1/8" | 1 3/4" | Carbon Steel | 280 lbs.-in. | Carbon Steel | €200.47 | |
| ISCC-062-062SKW | 1.562" | 5/8" | 5/8" | 1 5/16" | 2" | Carbon Steel | 470 lbs.-in. | Carbon Steel | €283.20 | |
| ISCC-075-075SKW | 1.812" | 3/4" | 3/4" | 1 1/2" | 2 1/4" | Stainless Steel | 990 lbs.-in. | Stainless Steel | €325.03 | |
| ISCC-087-087SKW | 1.938" | 7/8" | 7/8" | 1 5/8" | 2 1/2" | Stainless Steel | 1160 lbs.-in. | Stainless Steel | €371.85 | |
| ISCC-100-100SKW | 2.062" | 1" | 1" | 1 3/4" | 3" | Stainless Steel | 1330 lbs.-in. | Stainless Steel | €424.85 | |
| ISCC-112-112SKW | 2.188" | 1 1/8" | 1 1/8" | 1 7/8" | 3 1/8" | Stainless Steel | 1490 lbs.-in. | Stainless Steel | €461.63 | |
| ISCC-125-125SKW | 2.312" | 1 1/4" | 1 1/4" | 2 1/16" | 3 1/4" | Stainless Steel | 1660 lbs.-in. | Stainless Steel | €604.65 |
