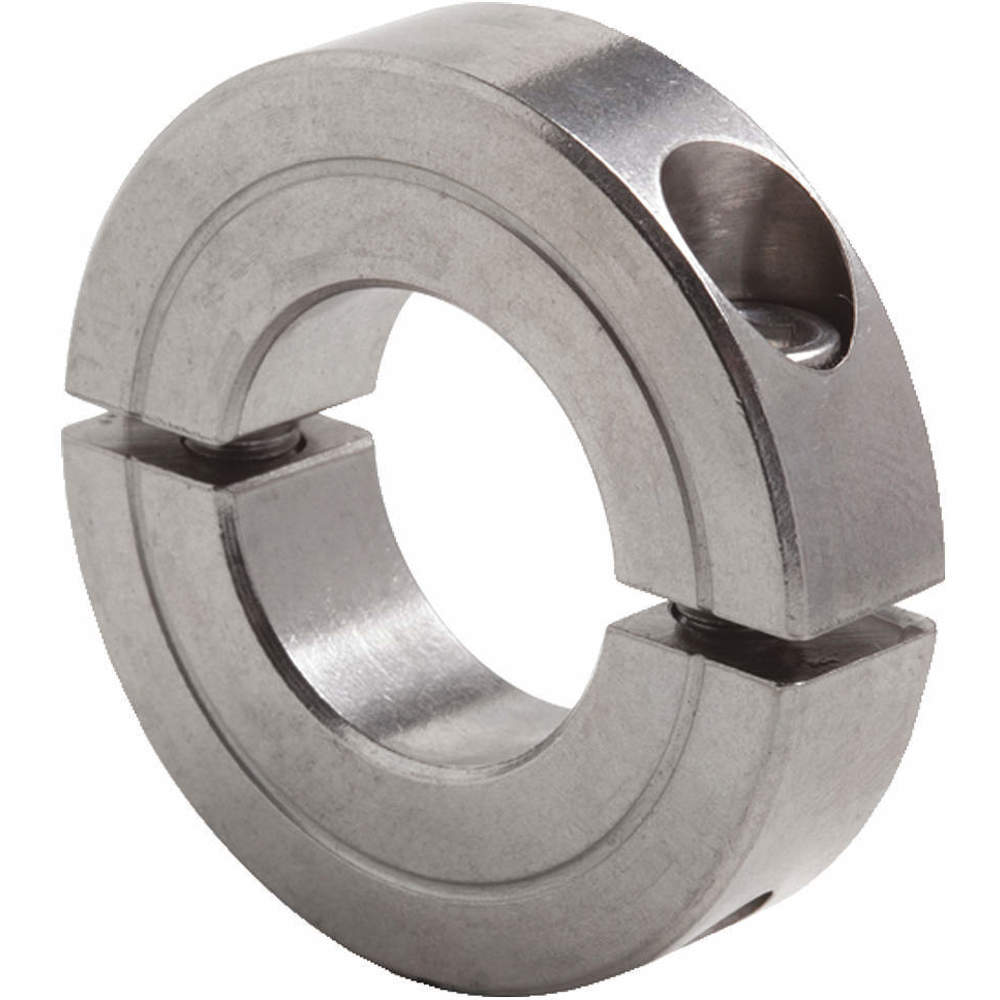

CLIMAX METAL PRODUCTS H2C-237-S Shaft Collar Clamp 2-3/8 Inch Bore Diameter
Get it by Tuesday, Feb 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€411.43 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Shaft Collar |
| Bore Dia. | 2 3/8" |
| Bore Tolerance | 0" to 0.003" |
| Bore Type | Round |
| Clearance Dia. | 3 1/2" |
| Clearance Diameter | 3.5" |
| Collar Construction | 2-Piece |
| Collar Material | Stainless Steel |
| Collar Material Finish | Bright |
| Collar Material Grade | Grade 303 |
| Collar Outside Diameter | 3 1/2" |
| Collar Style | Clamp |
| Collar Width | 5/8" |
| Dimension Type | Standard |
| For Shaft Diameter | 2 3/8" |
| Included Screws | (2) Hex Socket Cap Screw |
| Material | Stainless Steel |
| Maximum Operating Temperature | 300°F |
| Minimum Operating Temperature | -40°F |
| Number Of Pieces | 1 |
| Operating Temp. Range | -40°F to +800°F |
| Outside Dia. | 3 1/2" |
| Product Datasheet | climax-metal-products-h2c-237-s.pdf |
| Resistance Properties | Corrosion Resistant |
| Screw Length | 1" |
| Screw Material | Stainless Steel |
| Screw Material Grade | Grade 304 |
| Screw Seating Torque | 200 lbs.-in. |
| Screw Thread Size | 5/16"-24 |
| Shaft Locking Type | Clamp On |
| System Of Measurement | Imperial |
| Width | 5/8" |
| Width Tolerance | -0.005" to +0.005" |
Shipping Info:
| Ship weight (kg) | 0.38 |
| Ship height (cm) | 1.59 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 8.89 |
| HS code | 8487900080 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Outside Dia. | Collar Material | Bore Dia. | Screw Material | Operating Temp. Range | Material | Number Of Pieces | Screw Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| H2C-325 | 4 1/2" | Carbon Steel | - | Carbon Steel | 0°F to +300°F | Steel | 2 | 1" | €173.87 | |
| H2C-337 | 4 3/4" | Carbon Steel | - | Carbon Steel | 0°F to +300°F | Steel | 2 | 1" | €204.18 | |
| H2C-343 | 4 3/4" | Carbon Steel | 3.437" | Carbon Steel | 0°F to +300°F | Steel | 2 | 1" | €190.52 | |
| H2C-350 | 4 3/4" | Carbon Steel | 3 1/2" | Carbon Steel | 0°F to +300°F | Steel | 2 | 1" | €190.78 | |
| H2C-393 | 5 1/4" | Carbon Steel | 3.938" | Carbon Steel | 0°F to +300°F | Steel | 2 | 1" | €289.28 | |
| H2C-400 | 5 1/4" | Carbon Steel | 4" | Carbon Steel | 0°F to +300°F | Steel | 2 | 1" | €291.37 | |
| H2C-325-S | 4 1/2" | Stainless Steel | - | Stainless Steel | -40°F to +800°F | Stainless Steel | 2 | 1" | €407.15 |
