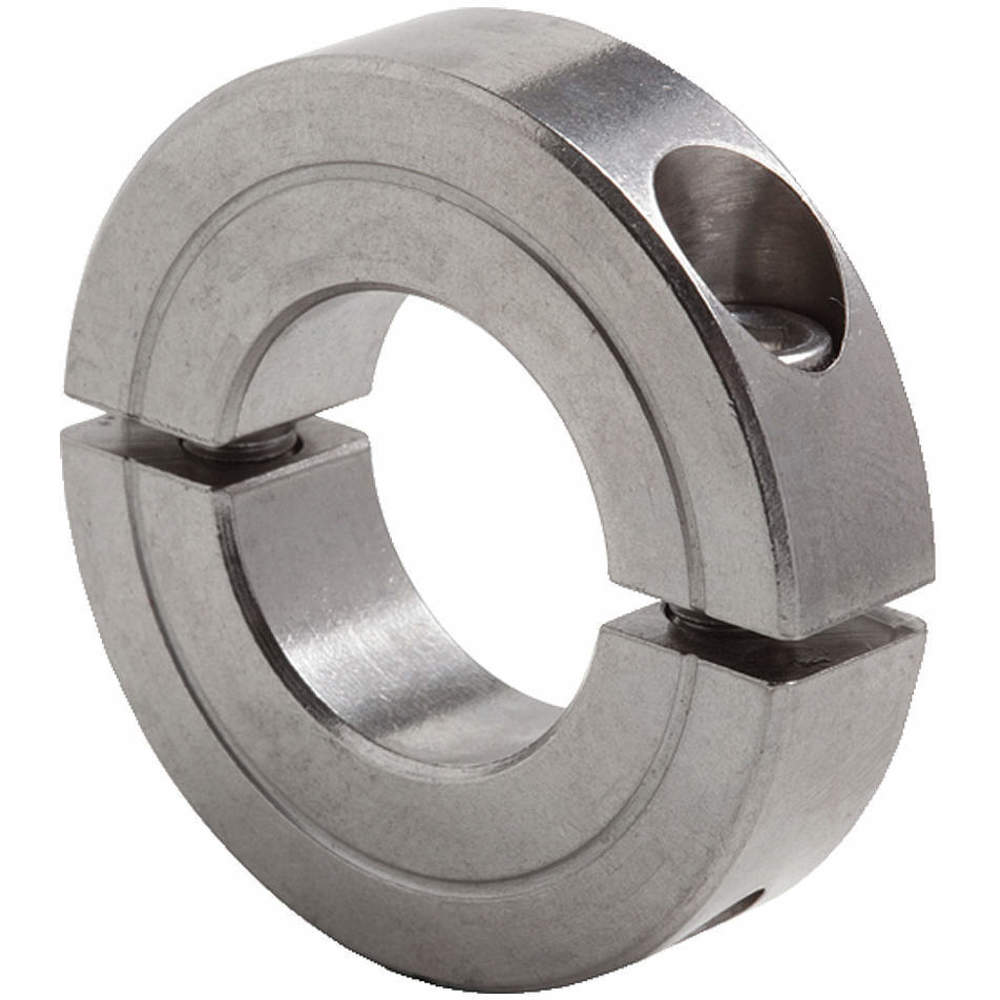

CLIMAX METAL PRODUCTS H2C-100-S Clamping Collar, 1 Inch Bore, 2 Inch O.D, 1/2 Inch Width, Stainless Steel, Recessed Screw, Two Pcs
Item: AF8ZQVModel: H2C-100-SCross Ref: 29NZ11
7 In Stock
Ships within 2 days via
13.00% off
€57.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Clamping Collar |
| Bore Dia. | 1" |
| Bore Tolerance | 0" to 0.003" |
| Bore Type | Round |
| Clearance Dia. | 2" |
| Collar Construction | 2-Piece |
| Collar Material | Stainless Steel |
| Collar Material Finish | Bright |
| Collar Material Grade | Grade 303 |
| Collar Outside Dia. | 2" |
| Collar Style | Clamp |
| Collar Width | 1/2" |
| Dimensions Type | Standard |
| For Shaft Dia. | 1" |
| Included Screws | (2) Hex Socket Cap Screw |
| Material | Stainless Steel |
| Max. Operating Temp. | 300°F |
| Min. Operating Temp. | -40°F |
| No. Of Pieces | 2 |
| Operating Temp. | -40°F to +800°F |
| Outside Dia. | 2" |
| Product Datasheet | climax-metal-products-h2c-100-s.pdf |
| Resistance Properties | Corrosion Resistant |
| Screw Length | 5/8" |
| Screw Material | Stainless Steel |
| Screw Material Grade | Grade 304 |
| Screw Seating Torque | 115 lbs.-in. |
| Screw Thread Size | 1/4"-28 |
| Shaft Locking Type | Clamp On |
| System Of Measurement | Imperial |
| Width | 1/2" |
| Width Tolerance | -0.005" to +0.005" |
Shipping Info:
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 5.08 |
| HS code | 8487900080 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Bore Dia. | Outside Dia. | Collar Material | Screw Material | Material | Clearance Dia. | Collar Width | Collar Material Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| H2C-325 | 3 1/4" | 4 1/2" | Carbon Steel | Carbon Steel | Steel | 4.687" | 7/8" | Black Oxide | €136.43 | |
| H2C-337 | 3 3/8" | 4 3/4" | Carbon Steel | Carbon Steel | Steel | 4.937" | 7/8" | Black Oxide | €159.02 | |
| H2C-343 | 3 7/16" | 4 3/4" | Carbon Steel | Carbon Steel | Steel | 4.937" | 7/8" | Black Oxide | €148.09 | |
| H2C-350 | 3 1/2" | 4 3/4" | Carbon Steel | Carbon Steel | Steel | 4.937" | 7/8" | Black Oxide | €154.90 | |
| H2C-393 | 3 15/16" | 5 1/4" | Carbon Steel | Carbon Steel | Steel | 5.437" | 7/8" | Black Oxide | €222.69 | |
| H2C-400 | 4" | 5 1/4" | Carbon Steel | Carbon Steel | Steel | 5.437" | 7/8" | Black Oxide | €222.69 | |
| H2C-325-S | 3 1/4" | 4 1/2" | Stainless Steel | Stainless Steel | Stainless Steel | 4.687" | 7/8" | Bright | €307.14 |
