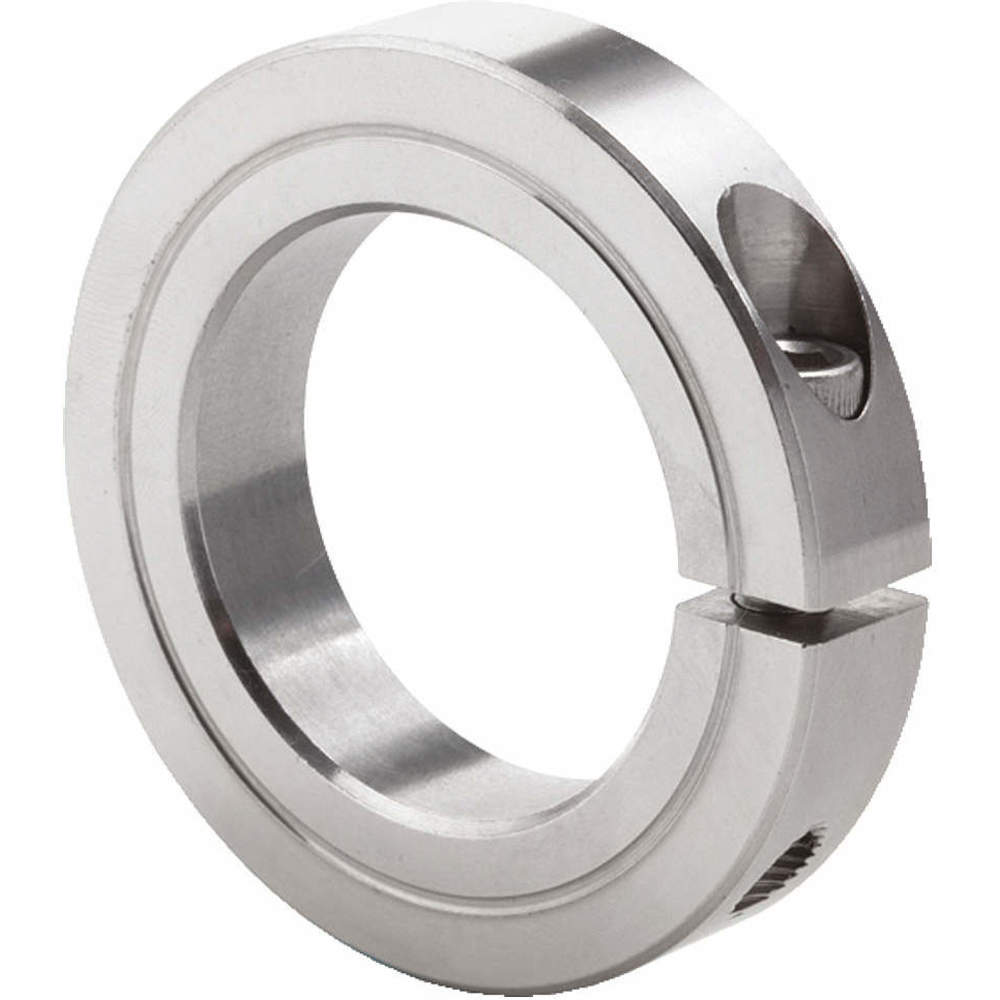

CLIMAX METAL PRODUCTS H1C-237-S Shaft Collar Clamp 3-1/2 Inch Outside Diameter
Item: AH7NDKModel: H1C-237-SCross Ref: 36WZ30
7 In Stock
Ships within 2 days via
10.00% off
€282.53 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shaft Collar |
| Bore Dia. | 2 3/8" |
| Bore Tolerance | 0" to 0.003" |
| Clearance Dia. | 3 1/2" |
| Clearance Diameter | 3.5" |
| Collar Construction | 1-Piece |
| Collar Material | Stainless Steel |
| Collar Material Finish | Bright |
| Collar Material Grade | Grade 303 |
| Collar Outside Diameter | 3 1/2" |
| Collar Style | Clamp |
| Collar Width | 5/8" |
| Dimension Type | Standard |
| For Shaft Diameter | 2 3/8" |
| For Shaft Type | Round |
| Included Screws | (1) Hex Socket Cap Screw |
| Material | Stainless Steel |
| Maximum Operating Temperature | 800°F |
| Minimum Operating Temperature | -40°F |
| Number Of Pieces | 1 |
| Operating Temp. Range | -40°F to +800°F |
| Outside Dia. | 3 1/2" |
| Product Datasheet | climax-metal-products-h1c-237-s.pdf |
| Resistance Properties | Corrosion Resistant |
| Screw Length | 1" |
| Screw Material | Carbon Steel |
| Screw Material Grade | Grade 4140 |
| Screw Seating Torque | 200 lbs.-in. |
| Screw Thread Size | 5/16"-24 |
| Shaft Locking Type | Clamp On |
| System Of Measurement | Imperial |
| Width | 5/8" |
| Width Tolerance | -0.005" to +0.005" |
Shipping Info:
| Ship weight (kg) | 0.38 |
| Ship height (cm) | 1.59 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 8.89 |
| HS code | 8487900080 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Collar Material | Outside Dia. | Bore Dia. | Material | Screw Material | Operating Temp. Range | Screw Length | Collar Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| H1C-325-S | Stainless Steel | 4 1/2" | 3 1/4" | Stainless Steel | Carbon Steel | -40°F to +800°F | 1" | 7/8" | €562.58 | |
| H1C-343-S | Stainless Steel | 4 3/4" | 3.437" | Stainless Steel | Carbon Steel | -40°F to +800°F | 1" | 7/8" | €483.75 | |
| H1C-350-S | Stainless Steel | 4 3/4" | 3 1/2" | Stainless Steel | Carbon Steel | -40°F to +800°F | 1" | 7/8" | €579.97 | |
| H1C-393-S | Stainless Steel | 5 1/4" | 3.938" | Stainless Steel | Carbon Steel | -40°F to +800°F | 1" | 7/8" | €738.17 | |
| H1C-325 | Carbon Steel | 4 1/2" | - | Steel | Carbon Steel | 0°F to +300°F | 1" | 7/8" | €192.19 | |
| H1C-343 | Carbon Steel | 4 3/4" | 3.437" | Steel | Carbon Steel | 0°F to +300°F | 1" | 7/8" | €158.89 | |
| H1C-350 | Carbon Steel | 4 3/4" | 3 1/2" | Steel | Carbon Steel | 0°F to +300°F | 1" | 7/8" | €159.76 |
