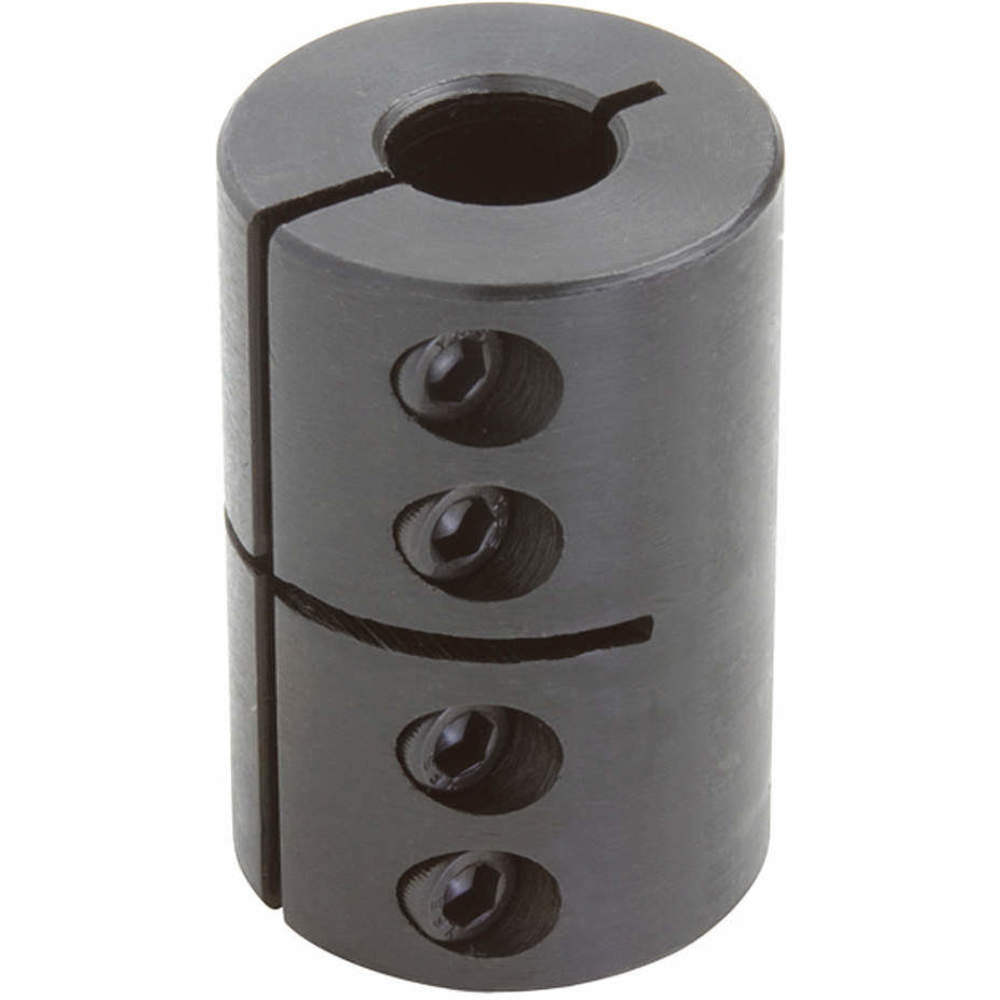

CLIMAX METAL PRODUCTS CC-150-150 Coupling Rigid Steel
Item: AF8YPXModel: CC-150-150Cross Ref: 29NK68
7 In Stock
Ships within 2 days via
10.00% off
€147.24 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rigid Shaft Coupling |
| Bore Diameter 1 | 1 1/2" |
| Bore Diameter 2 | 1 1/2" |
| Bore Tolerance | -0" to +0.003" |
| Bore Type | Round |
| Clearance Dia. | 2 1/2" |
| Clearance Diameter | 2.5" |
| Coupling Construction | One-Piece |
| Coupling Material | Carbon Steel |
| Coupling Material Finish | Black Oxide |
| Coupling Material Grade | Grade 1211 |
| Coupling Outside Diameter | 2 1/2" |
| Different Bore Sizes | No |
| Features | Recessed Screws |
| Included Screws | (4) Hex Socket Cap Screw |
| Material | Steel |
| Max. Rpm | 4000 RPM |
| Max. Torque | 3700 lbs.-in. |
| Maximum Bore Diameter | 1 1/2" |
| Number Of Locking Screws | 4 |
| Outside Dia. | 2 1/2" |
| Overall Length | 3 3/4" |
| Rated Torque | 3070 lbs.-in. |
| Screw Material | Carbon Steel |
| Screw Material Finish | Black Oxide |
| Screw Material Grade | Grade 4140 |
| Screw Thread Size | 1/4"-28 |
| Shaft Locking Type | Clamp On |
| System Of Measurement | Imperial |
| Type | One Piece Clamp, Without Keyway |
| Zero Backlash | Yes |
Shipping Info:
| Ship weight (kg) | 1.39 |
| Ship height (cm) | 9.53 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 6.35 |
| HS code | 8483608000 |
| Country of Origin | US |
Product Variants
| Model | Clearance Dia. | Bore Diameter 1 | Bore Diameter 2 | Coupling Outside Diameter | Overall Length | Max. Torque | Bore Type | Shaft Locking Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CC-075-075 | 1 3/4" | 3/4" | 3/4" | 1 3/4" | 2 5/8" | 1850 lbs.-in. | Round | Clamp On | €87.42 | |
| CC-100-100 | 2" | 1" | 1" | 2" | 3" | 2470 lbs.-in. | Round | Clamp On | €102.13 | |
| CC-125-125 | 2 1/4" | - | - | - | - | 3080 lbs.-in. | - | - | €131.64 | |
| CC-175-175 | 3" | 1 3/4" | 1 3/4" | 3" | 3" | 8310 lbs.-in. | Round | Clamp On | €297.19 | |
| CC-200-200 | 3 1/4" | 2" | 2" | 3 1/4" | - | 9500 lbs.-in. | Round | Clamp On | €337.83 | |
| CC-075-075-KW | 1 3/4" | 3/4" | 3/4" | 1 3/4" | 2 5/8" | 1850 lbs.-in. | Round Keyed | Clamp On | €114.29 | |
| CC-100-100-KW | 2" | 1" | 1" | 2" | 3" | 2470 lbs.-in. | Round Keyed | Clamp On | €129.55 |
