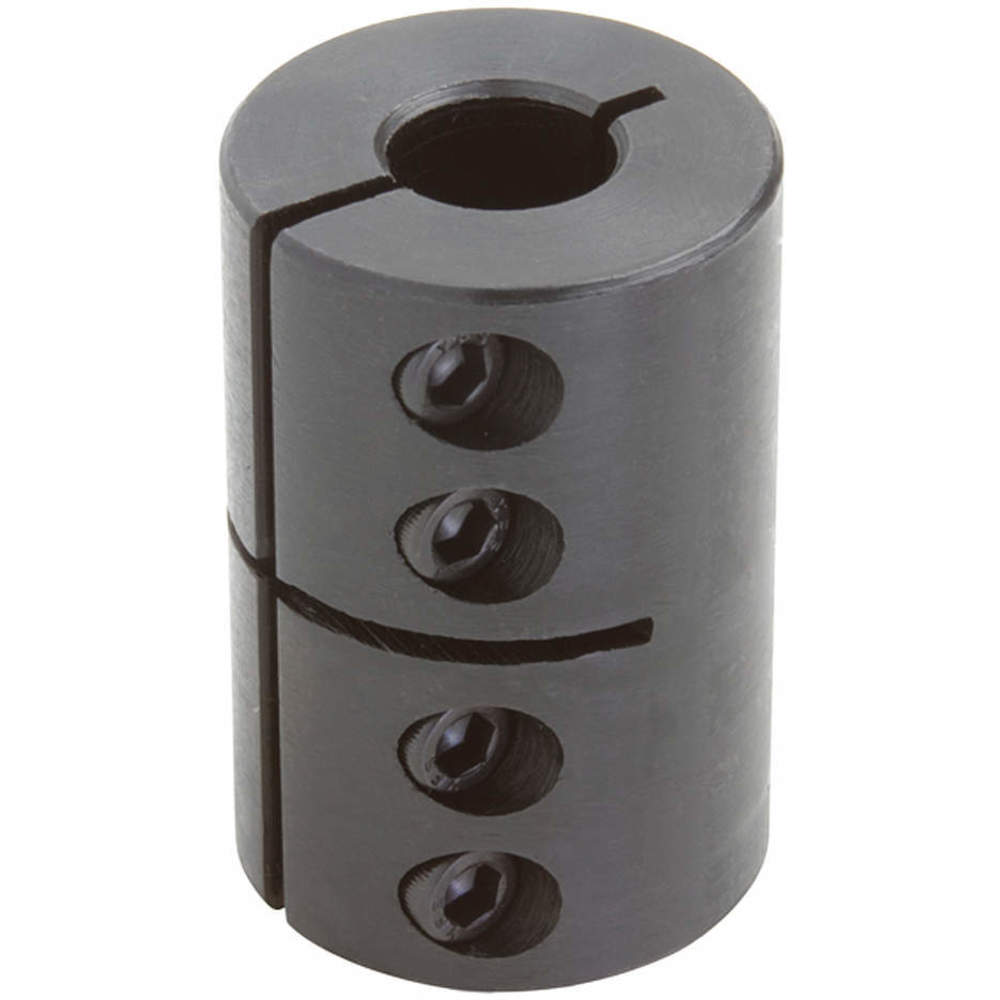

CLIMAX METAL PRODUCTS CC-087-087 Rigid Shaft Coupling One Pc. Clamp Recess Screw 2-7/8 Inch Length
Item: AH7RNWModel: CC-087-087Cross Ref: 38AW22
7 In Stock
Ships within 2 days via
10.00% off
€96.53 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rigid Shaft Coupling |
| Bore Dia. | 7/8" x 7/8" |
| Bore Diameter 1 | 7/8" |
| Bore Diameter 2 | 7/8" |
| Bore Tolerance | -0" to +0.003" |
| Bore Type | Round |
| Clearance Diameter | 1.88" |
| Coupling Construction | One-Piece |
| Coupling Material | Carbon Steel |
| Coupling Material Finish | Black Oxide |
| Coupling Material Grade | Grade 1211 |
| Coupling Outside Diameter | 1 7/8" |
| Different Bore Sizes | No |
| Features | Recessed Screws |
| Included Screws | (4) Hex Socket Cap Screw |
| Material | Steel |
| Maximum Bore Diameter | 7/8" |
| Maximum Speed | 4000 RPM |
| Number Of Locking Screws | 4 |
| Outside Dia. | 1 7/8" |
| Overall Length | 2 7/8" |
| Rated Torque | 2160 lbs.-in. |
| Screw Material | Carbon Steel |
| Screw Material Finish | Black Oxide |
| Screw Material Grade | Grade 4140 |
| Screw Thread Size | 1/4"-28 |
| Shaft Locking Type | Clamp On |
| System Of Measurement | Imperial |
| Type | One Piece Clamp Recessed Screw |
| Zero Backlash | Yes |
Shipping Info:
| Ship weight (kg) | 0.71 |
| Ship height (cm) | 7.3 |
| Ship length (cm) | 4.76 |
| Ship width (cm) | 4.76 |
| HS code | 8483608000 |
| Country of Origin | US |
Product Variants
| Product | Model | Shaft Locking Type | Bore Diameter 1 | Bore Diameter 2 | Coupling Outside Diameter | Coupling Material | Overall Length | Screw Material | Screw Material Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RC-100-A | Set Screw | 1" | 1" | 2" | Aluminum | 3" | Carbon Steel | Grade 4140 | €75.08 | |
 |
RC-125-KW | Set Screw | 1 1/4" | 1 1/4" | 2 1/4" | Carbon Steel | 4" | Carbon Steel | Grade 4140 | €97.33 | |
 |
2CC-050-050 | Clamp On | 1/2" | 1/2" | 1 1/4" | Carbon Steel | 1 7/8" | Carbon Steel | Grade 4140 | €117.37 | |
 |
2CC-050-050-KW | Clamp On | 1/2" | 1/2" | 1 1/4" | Carbon Steel | 1 7/8" | Carbon Steel | Grade 4140 | €159.52 | |
|
2CC-062-062 | Clamp On | 5/8" | 5/8" | 1 1/2" | Carbon Steel | 2 1/4" | Carbon Steel | Grade 4140 | €141.41 | |
|
2CC-062-062-KW | Clamp On | 5/8" | 5/8" | 1 1/2" | Carbon Steel | - | Carbon Steel | Grade 4140 | €175.54 | |
|
2CC-087-087 | Clamp On | 7/8" | 7/8" | 1 7/8" | Carbon Steel | 2 7/8" | Carbon Steel | Grade 4140 | €177.20 |
