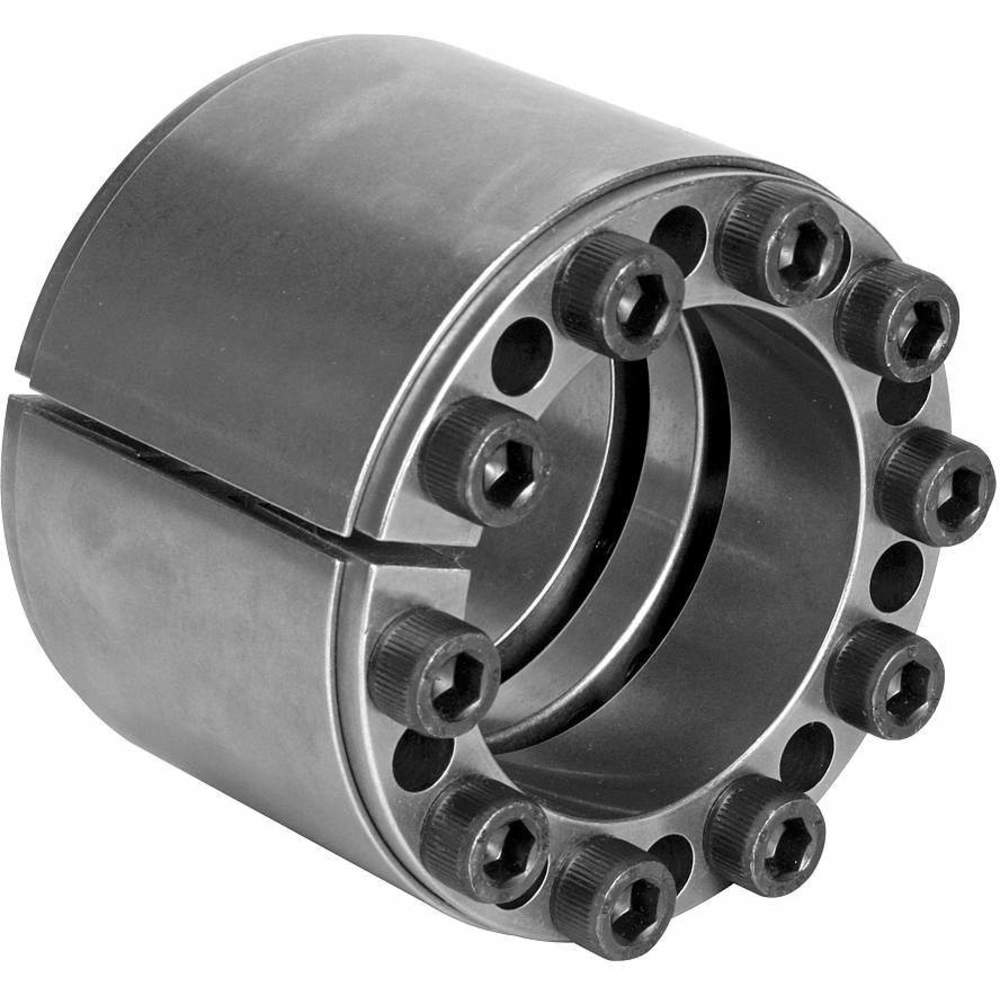

CLIMAX METAL PRODUCTS C405E-243 Locking Assembly, 2 7/16 Inch Shaft Size, 3.740 Inch O.D, 2.205 Inch Length, 4703 ft-lbs Torque
Item: AC7FLVModel: C405E-243Cross Ref: 38G713
7 In Stock
Ships within 2 days via
13.00% off
€403.98 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Assembly |
| Bolt Size | M8 x 55 |
| Finish | Oil Dipped |
| Flange Type | None |
| For Shaft Dia. | 2 7/16" |
| Hub Contact Pressure | 18956 psi |
| Hub Contact Pressure (psi) | 18,956 |
| Keyless Bushing Type | Multi Screw Locking Assembly |
| Locking Bolt Quantity | 10 |
| Material | Steel |
| Max. Transmitted Torque | 4703 lbs.-ft. |
| No. Of Locking Bolts | 10 |
| Outside Dia. | 3.74" |
| Outside Dia. Tolerance | +0.002" |
| Outside Dia./for Bore Dia. | 3 47/64" |
| Overall Length | 2.913" |
| Overall Width | 2.913" |
| Product Datasheet | climax-metal-products-c405e-243.pdf |
| Screw Thread Size | M8 x 55 |
| Shaft Dia. | 2.437" |
| Shaft Dia. Tolerance | -0.002 |
| Transmissible Thrust (lbs.) | 46,302 |
| Transmissible Torque | 4703 lbs.-ft. |
| Transmissible Torque (ft.-lbs.) | 4703 |
| Withstand Temp. | 0°F to +400°F |
Shipping Info:
| Ship weight (kg) | 1.53 |
| Ship height (cm) | 8 |
| Ship length (cm) | 9.7 |
| Ship width (cm) | 9.7 |
| HS code | 8483608000 |
| Country of Origin | IT |
Documentation:
Product Variants
| Model | Finish | For Shaft Dia. | Overall Width | Max. Transmitted Torque | Hub Contact Pressure | Bolt Size | No. Of Locking Bolts | Outside Dia. Tolerance | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| C405E-100 | Oil Dipped | 1" | 1.811" | 626 lbs.-ft. | 19493 psi | M6 x 35 | 6 | +0.002" | €276.41 | |
| C405E-125 | Oil Dipped | 1 1/4" | 2.362" | 914 lbs.-ft. | 14715 psi | M6 x 45 | 7 | +0.002" | €260.71 | |
| C405E-137 | Oil Dipped | 1 3/8" | 2.362" | 1005 lbs.-ft. | 14715 psi | M6 x 45 | 7 | +0.002" | €283.31 | |
| C405E-143 | Oil Dipped | 1 7/16" | 2.362" | 1051 lbs.-ft. | 14715 psi | M6 x 45 | 7 | +0.002" | €225.64 | |
| C405E-150 | Oil Dipped | 1 1/2" | 2.441" | 2026 lbs.-ft. | 21752 psi | M6 x 45 | 7 | +0.002" | €403.74 | |
| C405E-175 | Oil Dipped | 1 3/4" | 2.441" | 2363 lbs.-ft. | - | M6 x 45 | 7 | +0.002" | €437.40 | |
| C405E-193 | Oil Dipped | 1 15/16" | 2.913" | 2990 lbs.-ft. | 18009 psi | M8 x 55 | 8 | +0.002" | €380.79 |
