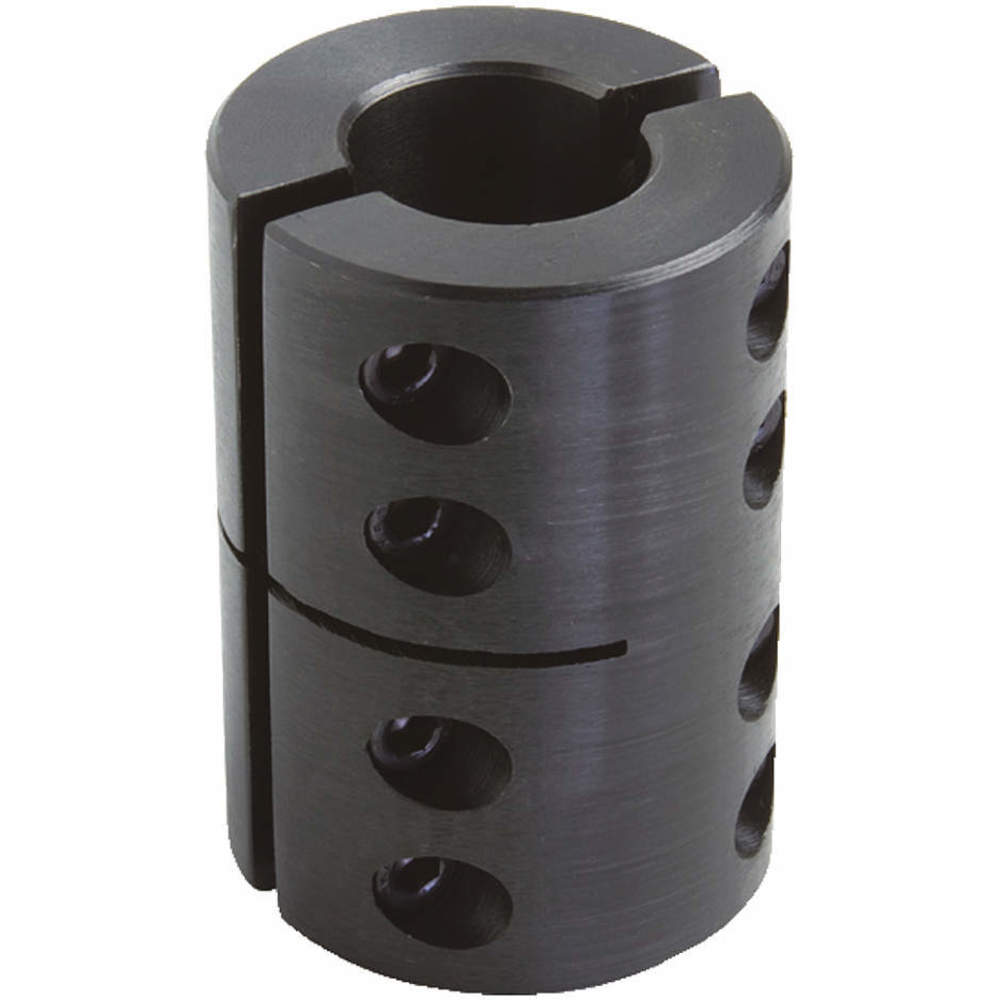

CLIMAX METAL PRODUCTS 2CC-075-075 Clamping Coupling, 3/4 Inch Bore, 1 3/4 Inch O.D, 2 5/8 Inch Length, Steel, Recessed Screw, Two Pcs
Item: AF8YUCModel: 2CC-075-075Cross Ref: 29NL44
7 In Stock
Ships within 2 days via
13.00% off
€112.85 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Clamping Coupling |
| Bore Dia. | 3/4" x 3/4" |
| Bore Dia. 1 | 3/4" |
| Bore Dia. 2 | 3/4" |
| Bore Tolerance | -0" to +0.003" |
| Bore Type | Round |
| Clearance Dia. | 1 3/4" , 2.75" |
| Coupling Construction | Two-Piece |
| Coupling Material | Carbon Steel |
| Coupling Material Finish | Black Oxide |
| Coupling Material Grade | Grade 1211 |
| Coupling Outside Dia. | 1 3/4" |
| Different Bore Size | No |
| Features | Recessed Screws |
| Included Screws | (4) Hex Socket Cap Screw |
| Material | Steel |
| Max. Bore Dia. | 3/4" |
| Max. Speed | 4000 RPM |
| Max. Torque | 1850 lbs.-in. |
| No. Of Locking Screws | 4 |
| Outside Dia. | 1 3/4" |
| Overall Length | 2 5/8" |
| Product Datasheet | climax-metal-products-2cc-075-075.pdf |
| Screw Material | Carbon Steel |
| Screw Material Finish | Black Oxide |
| Screw Material Grade | Grade 4140 |
| Screw Thread Size | 1/4"-28 |
| Shaft Locking Type | Clamp On |
| System Of Measurement | Imperial |
| Torque | 1850 lbs.-in. |
| Type | Two Piece Clamp, Without Keyway |
| Zero Backlash | Yes |
Shipping Info:
| Ship weight (kg) | 0.62 |
| Ship height (cm) | 6.68 |
| Ship length (cm) | 4.45 |
| Ship width (cm) | 4.45 |
| HS code | 8483608000 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Outside Dia. | Bore Dia. | Clearance Dia. | Bore Type | Included Screws | Material | Screw Material | Shaft Locking Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

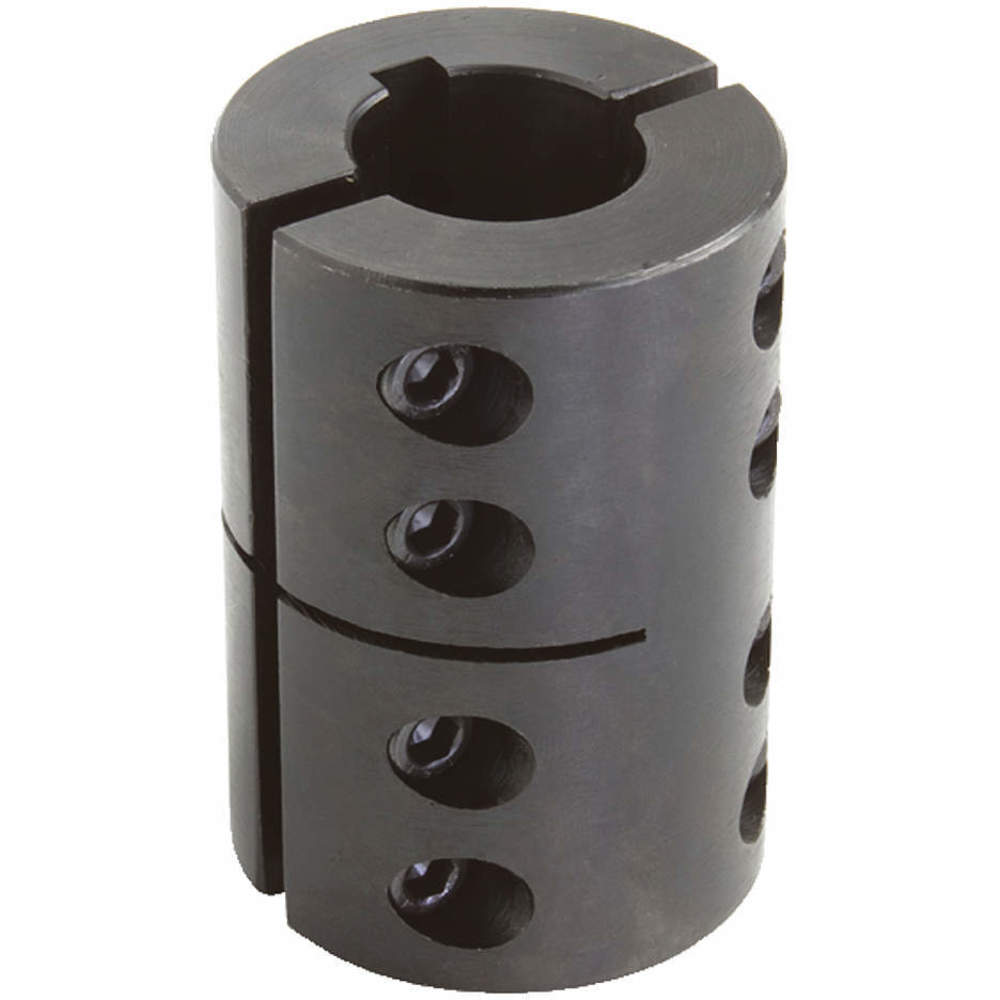

| 2CC-075-075-KW | 1 3/4" | 3/4" x 3/4" | 1 3/4" | Round Keyed | (4) Hex Socket Cap Screws | Steel | Carbon Steel | Clamp On | €149.68 | |
| 2CC-100-100-KW | 2" | - | 2" | Round Keyed | (4) Hex Socket Cap Screws | Steel | Carbon Steel | Clamp On | €171.21 | |
| 2CC-125-125-KW | 2 1/4" | - | 2 1/4" | Round Keyed | (4) Hex Socket Cap Screws | Steel | Carbon Steel | Clamp On | €206.55 | |
| 2CC-150-150-KW | 2 1/2" | - | 2 1/2" | Round Keyed | (4) Hex Socket Cap Screws | Steel | Carbon Steel | Clamp On | €243.02 | |
| 2CC-175-175-KW | 3" | - | 3" | Round Keyed | (4) Hex Socket Cap Screws | Steel | Carbon Steel | Clamp On | €437.70 | |
| 2CC-100-100 | 2" | - | 2" | - | - | Steel | - | - | €151.80 | |
| 2CC-125-125 | 2 1/4" | - | 2 1/4" | Round | (4) Hex Socket Cap Screw | Steel | Carbon Steel | Clamp On | €198.19 |
