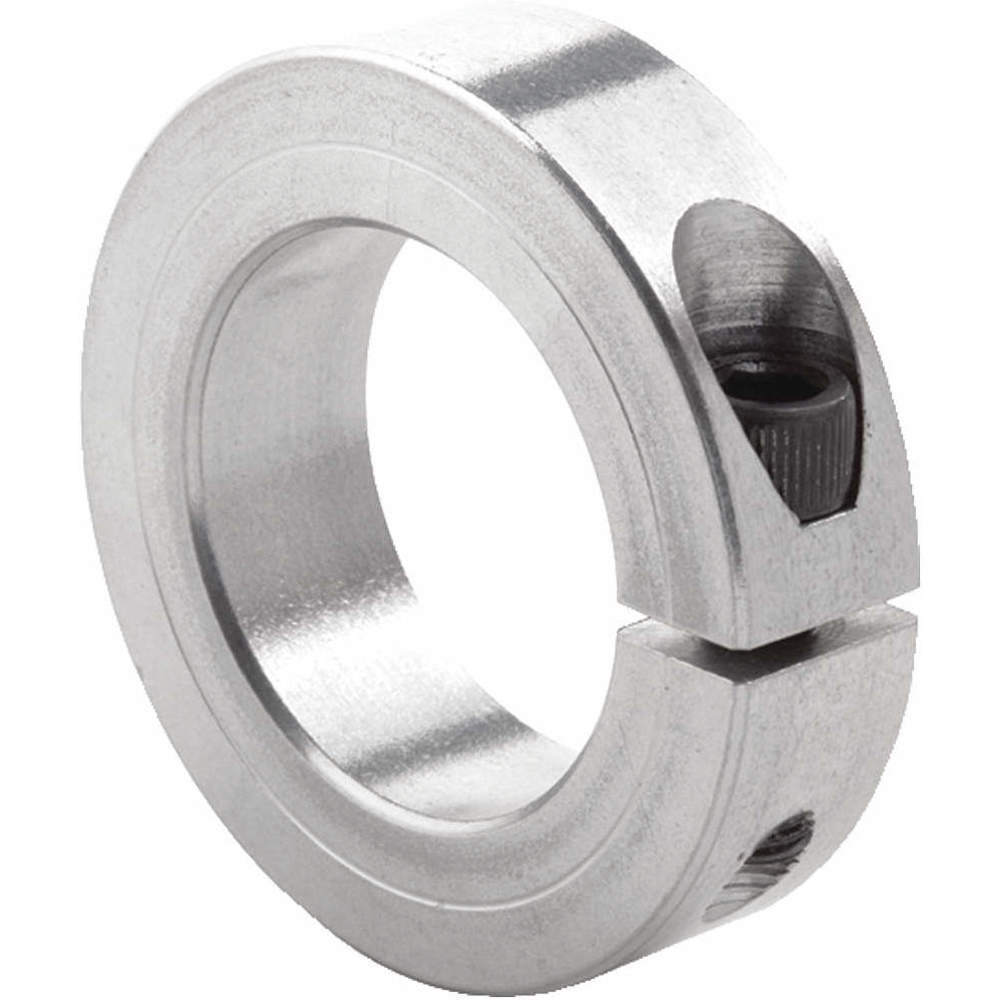

CLIMAX METAL PRODUCTS 1C-162-A Clamping Collar, 1 5/8 Inch Bore, 2 5/8 Inch O.D, 11/16 Inch Width, Aluminum, One Pcs
Item: AH7MXCModel: 1C-162-ACross Ref: 36WX83
7 In Stock
Ships within 2 days via
13.00% off
€44.33 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Clamping Collar |
| Bore Dia. | 1 5/8" |
| Bore Tolerance | 0" to 0.003" |
| Clearance Dia. | 2.938" , 2.94" |
| Collar Construction | 1-Piece |
| Collar Material | Aluminum |
| Collar Material Finish | Bright |
| Collar Material Grade | Grade 6061 |
| Collar Outside Dia. | 2 5/8" |
| Collar Style | Clamp |
| Collar Width | 11/16" |
| Dimensions Type | Standard |
| For Shaft Dia. | 1 5/8" |
| For Shaft Type | Round |
| Included Screws | (1) Hex Socket Cap Screw |
| Material | Aluminum |
| Max. Operating Temp. | 220°F |
| Min. Operating Temp. | -40°F |
| No. Of Pieces | 1 |
| Operating Temp. | -40°F to +220°F |
| Outside Dia. | 2 5/8" |
| Product Datasheet | climax-metal-products-1c-093.pdf |
| Screw Length | 1" |
| Screw Material | Carbon Steel |
| Screw Material Grade | Grade 4140 |
| Screw Seating Torque | 340 lbs.-in. |
| Shaft Locking Type | Clamp On |
| System Of Measurement | Imperial |
| Width | 0.688" |
| Width Tolerance | -0.005" to +0.005" |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 1.75 |
| Ship length (cm) | 6.67 |
| Ship width (cm) | 6.67 |
| HS code | 8487900080 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Outside Dia. | Bore Dia. | Collar Material | Material | Screw Material | Collar Width | Collar Material Finish | For Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1C-093 | 1 3/4" | 15/16" | Carbon Steel | Steel | Carbon Steel | 1/2" | Black Oxide | 15/16" | €15.15 | |
| 1C-100 | 1 3/4" | 1" | Carbon Steel | Steel | Carbon Steel | 1/2" | Black Oxide | 1" | €14.16 | |
| 1C-012-S | 0.688" | 1/8" | Stainless Steel | Stainless Steel | Stainless Steel | 5/16" | Bright | 1/8" | €15.31 | |
| 1C-018-S | 0.688" | 3/16" | Stainless Steel | Stainless Steel | Stainless Steel | 5/16" | Bright | 3/16" | €16.12 | |
| 1C-025-S | 0.688" | 1/4" | Stainless Steel | Stainless Steel | Stainless Steel | 5/16" | Bright | 1/4" | €15.36 | |
| 1C-031-S | 0.688" | 5/16" | Stainless Steel | Stainless Steel | Stainless Steel | 5/16" | Bright | 5/16" | €15.44 | |
| 1C-037-S | 7/8" | 3/8" | Stainless Steel | Stainless Steel | Stainless Steel | 3/8" | Bright | 3/8" | €18.81 |
