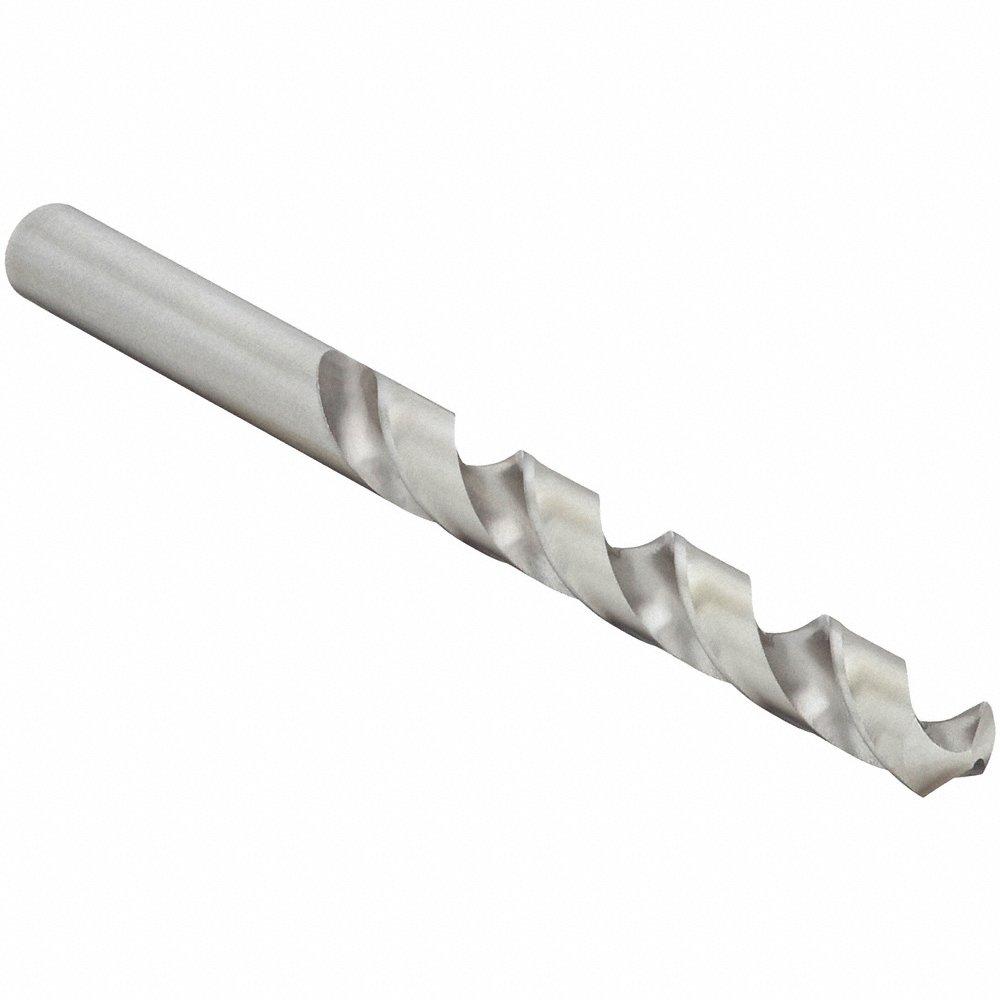

CLEVELAND C72268 2002 Jobber Length Drill Bit, 6.30 mm Size, 63 mm Flute Length, 6.3 mm Shank Dia
Item: CQ9LMPModel: C72268Cross Ref: 406L16 / 2002
7 In Stock
Ships within 2 days via
5.00% off
€10.63 /unit
This product can only be shipped in multiples of 12Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Length Drill Bit |
| Aircraft Drill | No |
| Coolant Fed | Non Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.248 |
| Depth Dia. Ratio | 4Xd |
| Depth X Dia. Ratio | 4xd |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 6.3 mm |
| Drill Dia. Tolerance | -0" to +0.0007" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0745 mm |
| Finish | Bright |
| Finish-machining | Bright (Uncoated) |
| Flute Length | 63 mm |
| Flute Type | Spiral |
| Grade | General Purpose |
| Helix Angle | +21° to +34° |
| Left/right Hand | Right |
| List Number | 2002G |
| Material | Vanadium High Speed Steel |
| Material Grade-machining | General Purpose |
| Material-machining | Vanadium High Speed Steel |
| Max. Drilling Depth | 1 55/64" , 15/16" |
| Mfr. Series | 2002G Series |
| No. Of Flutes | 2 |
| Overall Length | 101 mm |
| Point Angle | 118° |
| Point Type | Conventional Point |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Stainless Steel, Steel |
| Primary Material Application Iso Code | M, N, P |
| Shank Dia. | 6.3 mm |
| Shank Length | 38 mm |
| Shank Type | Straight |
| Shank Type-machining | Straight |
| Sheeter Drill | No |
| Size | 6.3 mm |
| Spiral Direction | Right Hand |
| System Of Measurement | Metric |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.59 |
| Ship length (cm) | 12.9 |
| Ship width (cm) | 2.59 |
| Country of Origin | US |
Product Variants
| Product | Model | Size | Max. Drilling Depth | Primary Material Application Iso Code | Finish | Shank Length | Flute Length | Finish-machining | Drill Bit Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C73101 | #1 | 7/8" | M, N, P | Titanium Carbonitride | 1 1/4" | 2 5/8" | TiCN | #1 | €16.17 | |
 |
C71101 | #1 | 7/8" | K, M, P | Black Oxide | 1 1/4" | 2 5/8" | Black Oxide | #1 | €8.44 | |
 |
C72101 | #1 | 7/8" | M, N, P | Bright | 1 1/4" | 2 5/8" | Bright (Uncoated) | #1 | €8.77 | |
|
C72110 | #10 | 3/4" | M, N, P | Bright | 1 3/16" | 2 7/16" | Bright (Uncoated) | #10 | €7.43 | |
|
C73110 | #10 | 3/4" | M, N, P | Titanium Carbonitride | - | 2 7/16" | TiCN | #10 | €13.16 | |
|
C71110 | #10 | 3/4" | K, M, P | Black Oxide | 1 3/16" | 2 7/16" | Black Oxide | #10 | €7.13 | |
|
C71111 | #11 | 3/4" | K, M, P | Black Oxide | 1 3/16" | 2 5/16" | Black Oxide | #11 | €7.00 |
