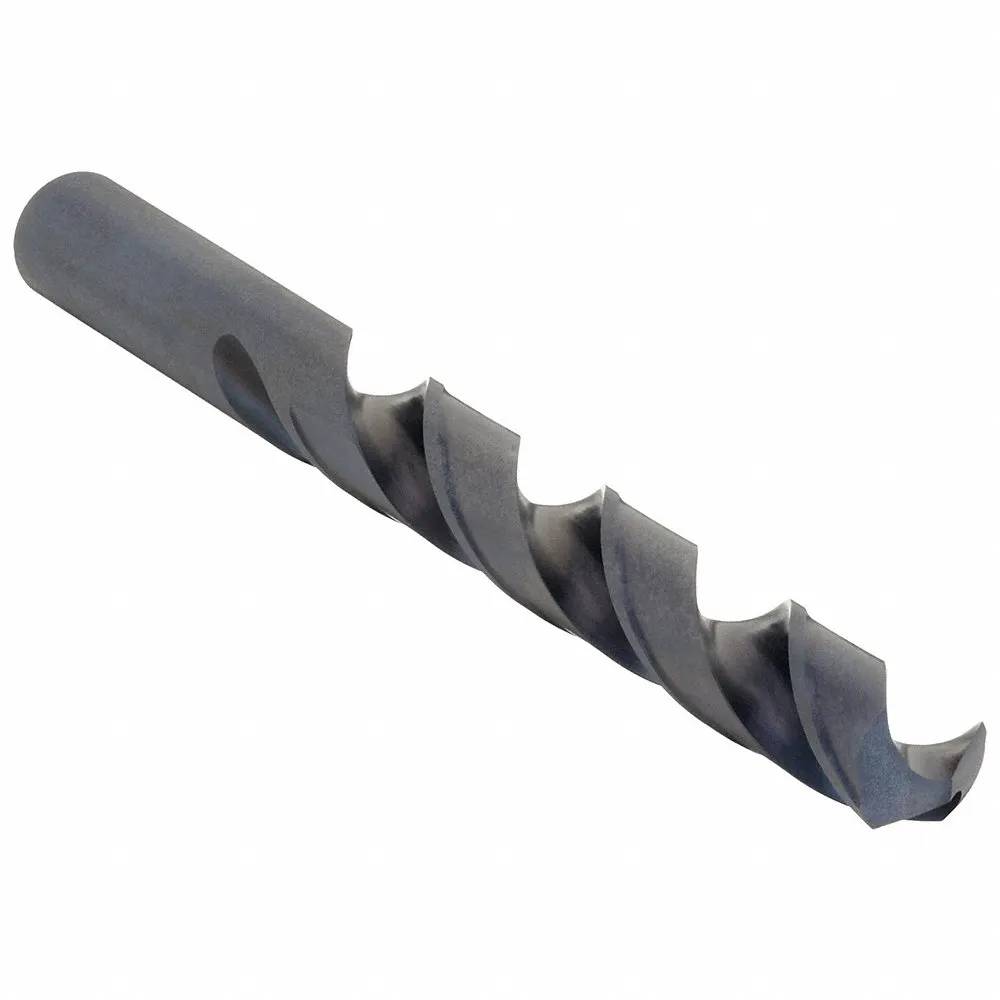

CLEVELAND C71034 Jobber Length Drill Bit, 17/32 Inch Drill Bit Size, 4 13/16 Inch Flute Length
Item: CX7NJTModel: C71034Cross Ref: 406G29
7 In Stock
Ships within 2 days via
10.00% off
€68.22 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Aircraft Drill | No |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.5313 |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 17/32" |
| Drill Diameter Tolerance | -0.0012" to 0" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.1596" |
| Finish - Machining | Black Oxide |
| Flute Length | 4 13/16" |
| Flute Type | Spiral |
| Grade | General Purpose |
| Helix Angle | +21° to +34° |
| Left/right Hand | Right |
| List Number | 2001G |
| Material | High Speed Steel |
| Material - Machining | Vanadium High Speed Steel |
| Material Grade - Machining | General Purpose |
| Maximum Drilling Depth | 2 1/8" |
| Number Of Flutes | 2 |
| Overall Length | 6 5/8" |
| Primary Material Application | Cast Iron, Stainless Steel, Steel |
| Primary Material Application Iso Code | K, M, P |
| Series | 2001G Series |
| Shank Dia. | 33/64" |
| Shank Length | 1 13/16" |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Spiral Direction | Right Hand |
| System Of Measurement | Fractional Inch |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 16.83 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
