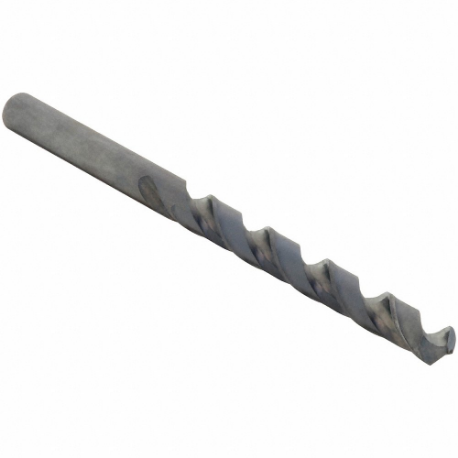

CLEVELAND C71018 2001 Jobber Length Drill Bit, 9/32 Inch Size Size, 17/64 Inch Shank Dia
Item: CQ9LVHModel: C71018Cross Ref: 406G13 / 2001
7 In Stock
Ships within 2 days via
10.00% off
€10.08 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Length Drill Bit |
| Aircraft Drill | No |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.2813 |
| Depth X Dia. Ratio | 4xd |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 9/32" |
| Drill Diameter Tolerance | -0.001" to 0" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0845" |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 2 15/16" |
| Grade | General Purpose |
| Helix Angle | +21° to +34° |
| Left/right Hand | Right |
| List Number | 2001G |
| Material | Vanadium High Speed Steel |
| Material - Machining | Vanadium High Speed Steel |
| Material Grade - Machining | General Purpose |
| Max. Drilling Depth | 1 1/8" |
| Mfr. Series | 2001G Series |
| Number Of Flutes | 2 |
| Overall Length | 4 1/4" |
| Point Angle | 118° |
| Point Type | Conventional Point |
| Primary Material Application | Cast Iron, Stainless Steel, Steel |
| Primary Material Application Iso Code | K, M, P |
| Shank Dia. | 17/64" |
| Shank Length | 1 5/16" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Size | 0.281" |
| Spiral Direction | Right Hand |
| System Of Measurement | Fractional Inch |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.59 |
| Ship length (cm) | 12.5 |
| Ship width (cm) | 2.59 |
| Country of Origin | US |
Product Variants
| Product | Model | Decimal Equivalent | Max. Drilling Depth | Finish | Flute Length | Overall Length | Shank Dia. | Drill Bit Size | Drill Point Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

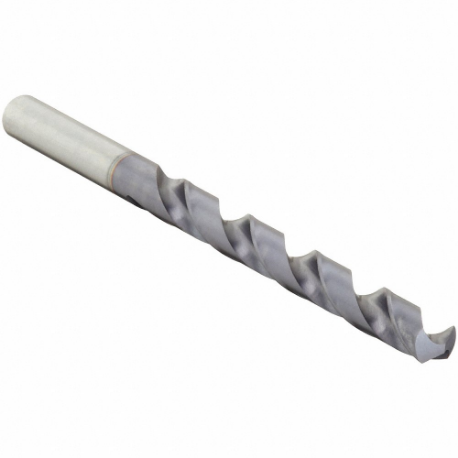

C73101 | 0.228 | 1 31/32" | Titanium Carbonitride | 2 5/8" | 3 7/8" | 7/32" | #1 | 0.0685" | €16.17 | |
|
C71101 | 0.228 | 1 31/32" | Black Oxide | 2 5/8" | 3 7/8" | 7/32" | #1 | 0.0685" | €8.44 | |
 |

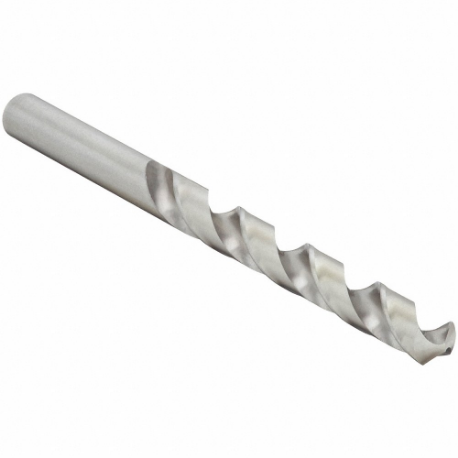

C72101 | 0.228 | 1 31/32" | Bright | 2 5/8" | 3 7/8" | 7/32" | #1 | 0.0685" | €8.77 | |
|
C72110 | 0.1935 | 1 13/16" | Bright | 2 7/16" | 3 5/8" | 3/16" | #10 | 0.0581" | €7.43 | |
|
C73110 | 0.1935 | 1 13/16" | Titanium Carbonitride | 2 7/16" | 3 5/8" | 3/16" | #10 | 0.0581" | €13.16 | |
|
C71110 | 0.1935 | 3/4" | Black Oxide | 2 7/16" | 3 5/8" | 3/16" | #10 | 0.0581" | €7.13 | |
|
C71111 | 0.191 | 3/4" | Black Oxide | 2 5/16" | 3 1/2" | 3/16" | #11 | 0.0574" | €7.00 |
