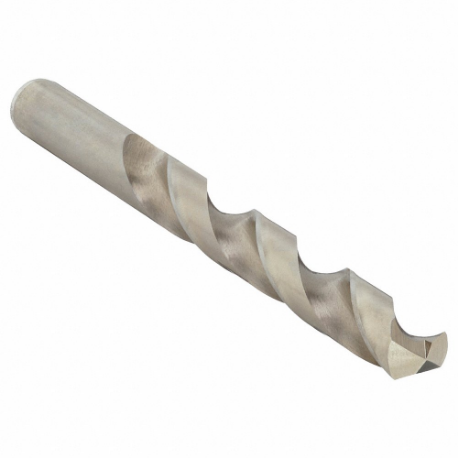

CLEVELAND C70029 2213 Jobber Length Drill Bit, 15/32 Inch Size Size, 5-3/4 Inch Overall Length
Item: CQ9KRJModel: C70029Cross Ref: 435H18 / 2213
7 In Stock
Ships within 2 days via
10.00% off
€43.92 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Length Drill Bit |
| Application | Stainless Steel, Alloy Steel, Titanium, For Abrasion Resistance |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.4688 |
| Depth X Dia. Ratio | 4xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.097" |
| Finish | Straw, Bronze |
| Flute Length | 4.312" |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Helix Angle | +21° to +34° |
| List Number | 2213 |
| Material | Cobalt |
| Max. Drilling Depth | 3 15/64" |
| Number Of Flutes | 2 |
| Overall Length | 5 3/4" |
| Point Angle | 135° |
| Point Type | Split Point |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Stainless Steel, Steel |
| Primary Material Application Iso Code | M, N, P |
| Secondary Material Application | Cast Iron, Hi-Temp Alloy |
| Secondary Material Application Iso Code | K, S |
| Shank Dia. | 0.469" |
| Shank Length | 1.438" |
| Shank Type | Straight |
| Sheeter Drill | No |
| Size | 0.469" |
| Spiral Direction | Right Hand |
| System Of Measurement | Fractional Inch |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 3.51 |
| Ship length (cm) | 15.8 |
| Ship width (cm) | 3.51 |
| Country of Origin | US |
Product Variants
| Product | Model | Coolant Fed | Decimal Equivalent | Flute Length | Flute Type | Cutting Direction | Shank Dia. | Max. Drilling Depth | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C15577 | Non-Coolant Through | 0.4823 | 101 mm | - | Right Hand | 0.469" | 2.969" | 151 mm | €117.67 | |
 |
C16612 | Non-Coolant Through | 0.228 | 2 5/8" | Parabolic | Right Hand | 0.219" | 1.969" | 3 7/8" | €44.05 | |
 |
C11401 | Non-Coolant Through | 0.228 | 2 5/8" | Parabolic | Right Hand | 0.219" | 1 31/32" | 3 7/8" | €53.40 | |
 |
C70134 | Non-Coolant Through | 0.228 | 2 5/8" | Spiral | Right Hand | 0.219" | 1.969" | 3 7/8" | €15.18 | |
|
C70143 | Non-Coolant Through | 0.1935 | 2 7/16" | Spiral | - | 0.188" | 1 13/16" | 3 5/8" | €11.78 | |
 |
C15940 | Non-Coolant Through | 0.1935 | 1 3/16" | Spiral | Right Hand | 0.188" | 7/8" | 3 5/8" | €12.68 | |
|
C16621 | Non-Coolant Through | 0.1935 | 2 7/16" | Parabolic | Right Hand | 0.188" | 1.812" | 3 5/8" | €36.37 |
