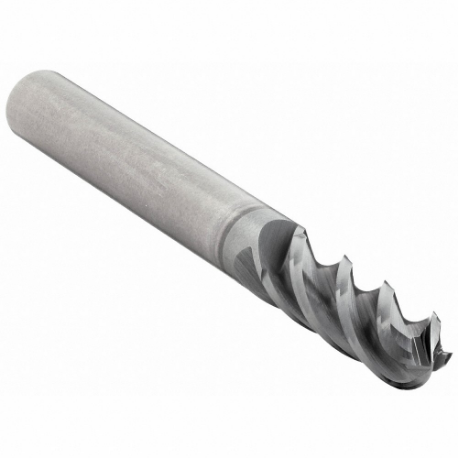

CLEVELAND C60109 0 Ball End Mill, 4 Flutes, 0.1875 Inch Milling Dia, 2 Inch Overall Length
Item: CQ9DURModel: C60109Cross Ref: 32ZX12 / 0
7 In Stock
Ships within 2 days via
10.00% off
€59.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball End Mill |
| Cast Iron (k) Compatibility | No |
| Chip-breaker | No |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right Hand |
| Cutting Length | 0.438" |
| Cutting Type | Center Cutting |
| Dimension Type | Fractional Inch |
| Drilling Tool Configuration | Individual |
| End Mill Application | Roughing/Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Ball Nose |
| End Type | Single End |
| Finish | Bright, Uncoated |
| Finish - Machining | Bright (Uncoated) |
| Grade | General Purpose |
| Hardened Compatibility | Yes |
| Helix Angle | 38° |
| Length Of Cut | 7/16" |
| List Number | CEM-V-4B |
| Material | Carbide |
| Material - Machining | Carbide |
| Material Application | Carbon Steel, Alloy Steel, Stainless Steel |
| Material Grade - Machining | High Performance |
| Milling Dia. | 3/16" |
| Neck Dia. | Not Applicable |
| Neck Length | Not Applicable |
| Non Ferrous (n) Compatibility | No |
| Number Of Flutes | 4 |
| Overall Length | 2" |
| Primary Material Application | Hardened Steel, Nickel, Stainless Steel, Steel, Titanium |
| Primary Material Application Iso Code | P, M |
| Shank Dia. | 3/16" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Single End/double End | Single End |
| Spiral Direction | Right Hand |
| Stainless (m) Compatibility | Yes |
| Steel (p) Compatibility | Yes |
| Super Alloy (s) Compatibility | Yes |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Milling Dia. | Shank Dia. | Finish | Overall Length | List Number | Length Of Cut | Cutting Length | End Mill Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| C60108 | 1/8" | 1/8" | Bright, Uncoated | 1 1/2" | CEM-V-4B | - | 3/8" | Ball Nose | €52.41 | |
| C80108 | 1/8" | 1/8" | AP, Max | 1 1/2" | CEM-V-4B-TA | 3/8" | - | Ball Nose | €55.45 | |
| C80109 | 3/16" | 3/16" | AP, Max | 2" | CEM-V-4B-TA | 7/16" | 0.438" | Ball Nose | €71.81 | |
| C80110 | 1/4" | 1/4" | AP, Max | 2 1/2" | - | - | 3/4" | Ball Nose | €88.31 | |
| C60110 | 1/4" | 1/4" | Bright, Uncoated | 2 1/2" | CEM-V-4B | - | 3/4" | Ball Nose | €78.45 | |
| C80111 | 0.312" | 0.312" | AP, Max | 2 1/2" | - | - | 0.812" | Ball Nose | €101.76 | |
| C60111 | 5/16" | 5/16" | Bright, Uncoated | 2 1/2" | CEM-V-4B | 13/16" | 0.812" | Ball Nose | €91.96 |
