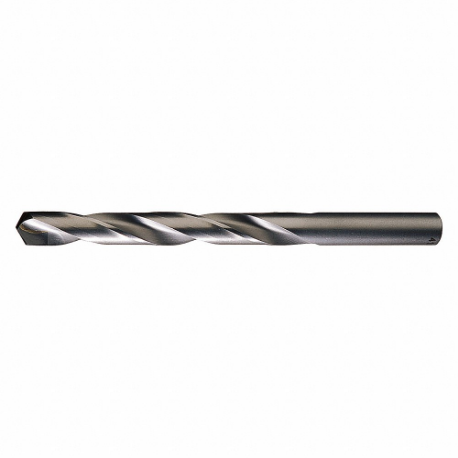

CLEVELAND C48784 Jobber Length Drill Bit, 11/32 Inch Drill Bit Size, 4 3/4 Inch Overall Length | CQ9KMN 60HC28

CLEVELAND C48784 2727 Jobber Length Drill Bit, 11/32 Inch Size, 4 3/4 Inch Overall Length

Item: CQ9KMNModel: C48784Cross Ref: 60HC28 / 2727
7 In Stock

Ships within 2 days via

€119.48
5.00% off
€113.51 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Jobber Length Drill Bit
Aircraft Drill No
Coolant Fed Non Coolant Through
Cutting Direction Right Hand
Decimal Equivalent 0.3438
Depth Dia. Ratio 4Xd
Depth X Dia. Ratio 4xd
Drill Bit Point Angle 118°
Drill Bit Point Type 4 Facet
Drill Bit Size 11/32"
Drill Dia. Tolerance -0.001" to 0"
Drill Length Class Jobber Length
Finish Bright
Finish-machining Bright (Uncoated)
Flute Length 3 7/16"
Flute Type Spiral
Helix Angle +21° to +34°
List Number 2727
Material Carbide Tipped
Material-machining Carbide Tipped
Max. Drilling Depth 2 9/16" , 2.562"
No. Of Coolant Holes 0
No. Of Flutes 2
Overall Length 4 3/4"
Point Angle 118°
Point Type Facet
Primary Material Application Aluminum And Non Ferrous Material, Cast Iron, Steel
Primary Material Application Iso Code K, N, P
Secondary Material Application Alloy Steel, Stainless Steel
Secondary Material Application Iso Code M, P
Shank Length 1 5/16"
Shank Type Straight
Shank Type-machining Straight
Sheeter Drill No
Size 0.344"
Spiral Direction Right Hand
System Of Measurement Imperial
Web Thinning Thinned

Shipping Info:

Ship weight (kg) 0.05
Ship height (cm)2.54
Ship length (cm)12.5
Ship width (cm)2.54
Country of OriginUS

Product Variants

ProductModelMax. Drilling DepthPrimary Material Application Iso CodeSizeFlute LengthMaterialShank LengthFinishFinish-machiningPrice
CLEVELAND C72311 Jobber Drill Bit, 11.20 mm Drill Bit Size, 94 mm Flute Length, 142 mm Overall Length | CQ9HPY 406L52 C723112.766"N11.2 mm94 mmVanadium High Speed Steel48 mmBrightBright (Uncoated)€30.28
CLEVELAND C71311 Jobber Drill Bit, 11.20 mm Drill Bit Size, 94 mm Flute Length, 142 mm Overall Length | CQ9HPZ 406J29 C713112 49/64"K, M, P11.2 mm94 mmVanadium High Speed Steel48 mmBlack OxideBlack Oxide€29.50
CLEVELAND C71315 Jobber Drill Bit, 12.20 mm Drill Bit Size, 101 mm Flute Length, 151 mm Overall Length | CQ9HQA 406J32 C713152 31/32"K, M, P12.2 mm101 mmVanadium High Speed Steel50 mmBlack OxideBlack Oxide€33.53
CLEVELAND C72315 Jobber Drill Bit, 12.20 mm Drill Bit Size, 101 mm Flute Length, 151 mm Overall Length | CQ9HQB 406L55 C723152 31/32"N12.2 mm101 mmVanadium High Speed Steel50 mmBrightBright (Uncoated)€34.00
CLEVELAND C03039 Jobber Length Drill Bit, #10 Drill Bit Size, 3-5/8 Inch Overall Length | CQ9HQV 434U69 C030391.812"N, P#102 7/16"High Speed Steel1 3/16"BrightBright (Uncoated)€9.41
CLEVELAND C03756 Jobber Length Drill Bit, #10 Drill Bit Size, 3-5/8 Inch Overall Length | CQ9HRA 434W35 C037561.812"M, P#102 7/16"High Speed Steel1 3/16"-Tin€22.46
CLEVELAND C16177 Jobber Length Drill Bit, #10 Drill Bit Size, 3-5/8 Inch Overall Length | CQ9HRB 435C84 C161771.812"N#102 7/16"High Speed Steel1 3/16"BrightBright (Uncoated)€12.56
