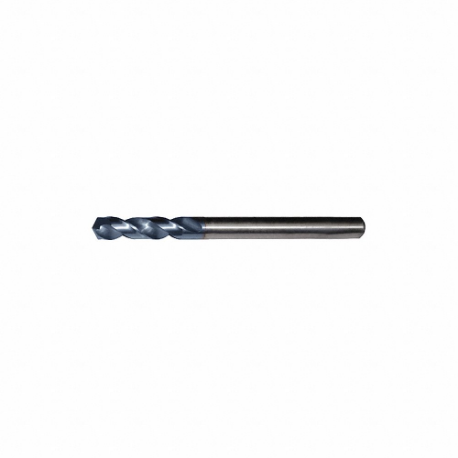

CLEVELAND C19929 Jobber Length Drill Bit, #19 Size, 3-1/4 Inch Overall Length
Item: CQ9HXNModel: C19929Cross Ref: 435G27
7 In Stock
Ships within 2 days via
5.00% off
€7.43 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Length Drill Bit |
| Aircraft Drill | No |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.166 |
| Depth Dia. Ratio | 4Xd |
| Depth X Dia. Ratio | 4xd |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | #19 |
| Drill Dia. Tolerance | -0" to +0.0007" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0344" |
| Finish | Titanium Carbonitride |
| Finish-machining | TiCN |
| Flute Length | 1 1/16" |
| Flute Type | Spiral |
| Grade | Grade M42 |
| Helix Angle | +35° to +45° |
| Material | Cobalt |
| Material Grade-machining | Grade M42 |
| Material-machining | Cobalt |
| Max. Drilling Depth | 0.797" , 51/64" |
| Measurement System | Wire |
| Mfr. Series | 378TC |
| No. Of Flutes | 2 |
| Overall Length | 3 1/4" |
| Point Angle | 135° |
| Point Type | Split Point |
| Primary Material Application | High Temperature Alloy, Stainless Steel, Steel |
| Primary Material Application Iso Code | M, P, S |
| Series | 378TC Series |
| Shank Dia. | 0.156" , 5/32" |
| Shank Length | 2 3/16" |
| Shank Type | Straight |
| Shank Type-machining | Straight |
| Sheeter Drill | No |
| Size | #19 |
| Spiral Direction | Right Hand |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Max. Drilling Depth | Primary Material Application Iso Code | Flute Length | Size | Shank Length | Finish-machining | Drill Bit Size | Drill Dia. Tolerance | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C15577 | 2.969" | N | 101 mm | 12.25 mm | 50 mm | Straw, Bronze | 12.25 mm | -0.001" to 0" | €117.67 | |
 |
C16612 | 1.969" | P | 2 5/8" | #1 | 1 1/4" | Tin | #1 | -0" to +0.0007" | €44.05 | |
 |
C11401 | 1 31/32" | K, M | 2 5/8" | #1 | 1 1/4" | TiAlN | #1 | -0" to +0.0007" | €53.40 | |
 |
C70134 | 1.969" | M, N, P | 2 5/8" | #1 | 1 1/4" | Straw, Bronze | #1 | -0" to +0.0007" | €15.18 | |
|
C70143 | 1 13/16" | M, N, P | 2 7/16" | #10 | 1 3/16" | Straw, Bronze | #10 | -0" to +0.0007" | €11.78 | |
 |
C15940 | 7/8" | K, M, P, S | 1 3/16" | #10 | 2 7/16" | Black Oxide | #10 | -0" to +0.0007" | €12.68 | |
|
C16621 | 1.812" | P | 2 7/16" | #10 | 1 3/16" | Tin | #10 | -0" to +0.0007" | €36.37 |
