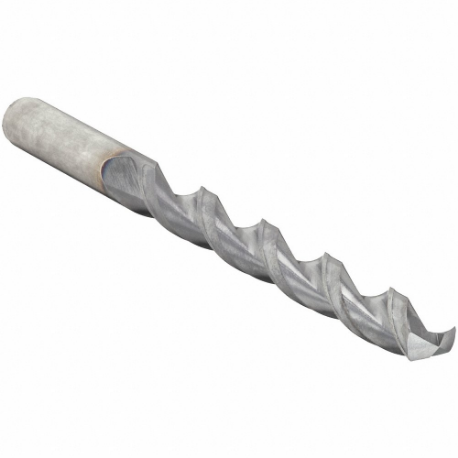

CLEVELAND C16969 2075 Jobber Length Drill Bit, 3/8 Inch Size Size, 5 Inch Overall Length, Cobalt
Item: CQ9LDTModel: C16969Cross Ref: 435F82 / 2075
7 In Stock
Ships within 2 days via
10.00% off
€93.19 /unit
This product can only be shipped in multiples of 5Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Length Drill Bit |
| Aircraft Drill | No |
| Application | Carbon Steel, Tool Steel, Alloy Steel, Free-Machining Steel |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.375 |
| Depth X Dia. Ratio | 10xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 3/8" |
| Drill Diameter Tolerance | -0.001" to 0" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0777" |
| Finish | Titanium Carbonitride |
| Finish - Machining | TiCN |
| Flute Length | 3 5/8" |
| Flute Type | Parabolic |
| Grade | High Performance |
| Helix Angle | +35° to +45° |
| Material | Cobalt |
| Material - Machining | Cobalt |
| Material Grade - Machining | Grade M42 |
| Max. Drilling Depth | 2.719" |
| Maximum Drilling Depth | 2 23/32" |
| Number Of Flutes | 2 |
| Overall Length | 5" |
| Point Angle | 135° |
| Point Type | Split Point |
| Primary Material Application | Aluminum And Non Ferrous Material, Steel |
| Primary Material Application Iso Code | N, P |
| Secondary Material Application | Cast Iron, Stainless Steel |
| Secondary Material Application Iso Code | K, M |
| Series | 2075-TC Series |
| Shank Dia. | 3/8" |
| Shank Length | 1 3/8" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Size | 3/8" |
| Spiral Direction | Right Hand |
| System Of Measurement | Fractional Inch |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 3.51 |
| Ship length (cm) | 13 |
| Ship width (cm) | 3.51 |
| Country of Origin | US |
