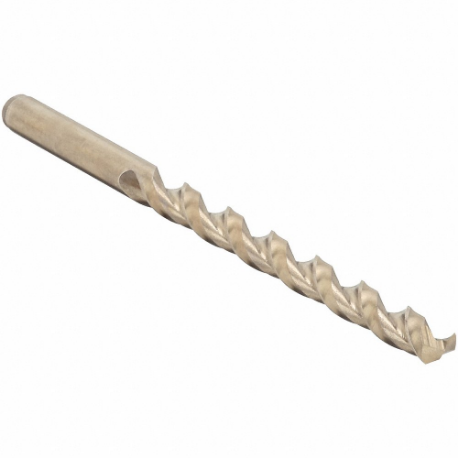

CLEVELAND C16591 2075 Jobber Length Drill Bit, 5 mm Size, 86 mm Overall Length, M42
Item: CQ9LHBModel: C16591Cross Ref: 435D24 / 2075
7 In Stock
Ships within 2 days via
10.00% off
€25.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Length Drill Bit |
| Aircraft Drill | No |
| Application | Carbon Steel, Tool Steel, Alloy Steel, Free-Machining Steel |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.1969 |
| Depth X Dia. Ratio | 10xd |
| Drill Bit Dimension Type | Metric |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 5 mm |
| Drill Diameter Tolerance | -0" to +0.0007" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0408 mm |
| Finish | Straw, Bronze |
| Finish - Machining | Straw, Bronze |
| Flute Length | 52 mm |
| Flute Type | Parabolic |
| Grade | High Performance |
| Helix Angle | +35° to +45° |
| List Number | 2075 |
| Material | Cobalt |
| Material - Machining | Cobalt |
| Material Grade - Machining | Grade M42 |
| Max. Drilling Depth | 1 17/32" |
| No. Of Pieces | 0 |
| Number Of Flutes | 2 |
| Overall Length | 86 mm |
| Point Angle | 135° |
| Point Type | Split Point |
| Primary Material Application Iso Code | N |
| Secondary Material Application | Steel |
| Secondary Material Application Iso Code | P |
| Series | 2075 Series |
| Shank Dia. | 5 mm |
| Shank Length | 34 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Size | 5 mm |
| Spiral Direction | Right Hand |
| System Of Measurement | Metric |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 9.4 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Coolant Fed | Decimal Equivalent | Flute Length | Flute Type | Cutting Direction | Shank Dia. | Max. Drilling Depth | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C15577 | Non-Coolant Through | 0.4823 | 101 mm | - | Right Hand | 0.469" | 2.969" | 151 mm | €117.67 | |
 |
C16612 | Non-Coolant Through | 0.228 | 2 5/8" | Parabolic | Right Hand | 0.219" | 1.969" | 3 7/8" | €44.05 | |
 |
C11401 | Non-Coolant Through | 0.228 | 2 5/8" | Parabolic | Right Hand | 0.219" | 1 31/32" | 3 7/8" | €53.40 | |
 |
C70134 | Non-Coolant Through | 0.228 | 2 5/8" | Spiral | Right Hand | 0.219" | 1.969" | 3 7/8" | €15.18 | |
|
C70143 | Non-Coolant Through | 0.1935 | 2 7/16" | Spiral | - | 0.188" | 1 13/16" | 3 5/8" | €11.78 | |
 |
C15940 | Non-Coolant Through | 0.1935 | 1 3/16" | Spiral | Right Hand | 0.188" | 7/8" | 3 5/8" | €12.68 | |
|
C16621 | Non-Coolant Through | 0.1935 | 2 7/16" | Parabolic | Right Hand | 0.188" | 1.812" | 3 5/8" | €36.37 |
