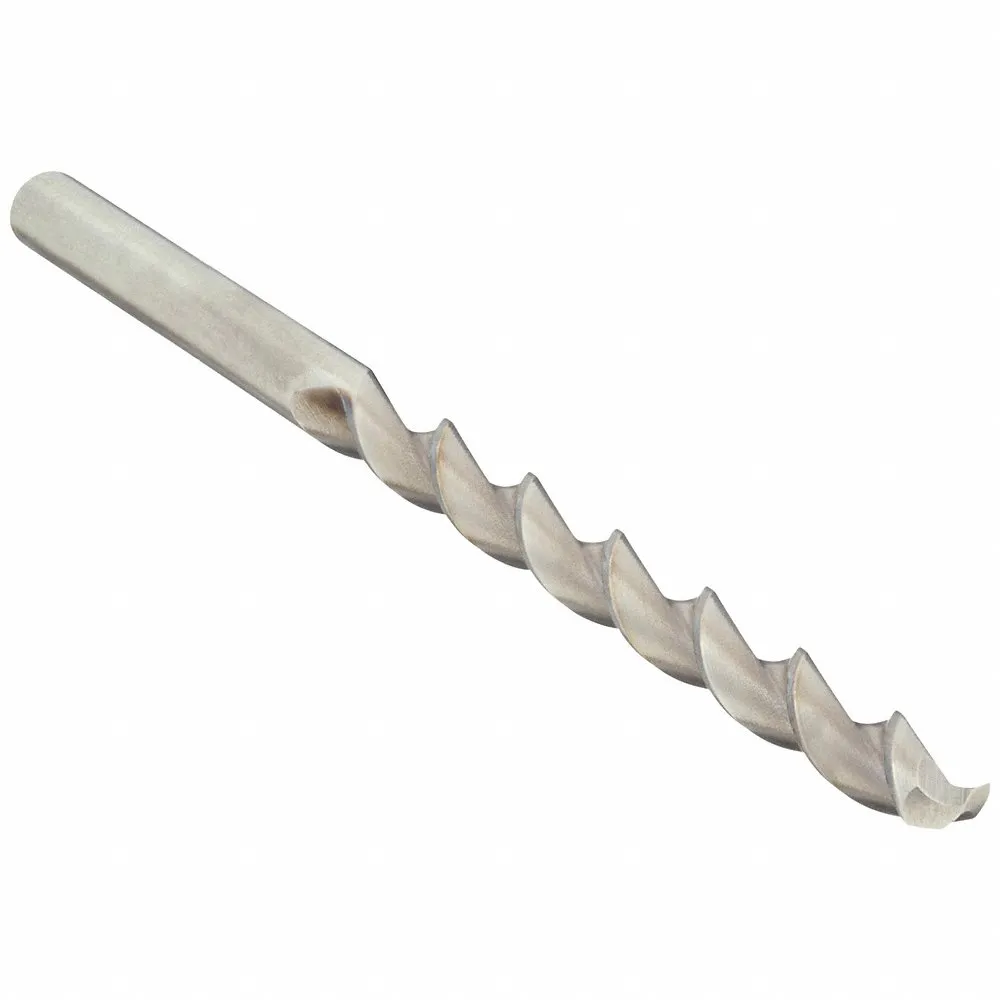

CLEVELAND C16192 Jobber Length Drill Bit, #25 Drill Bit Size, 1-7/8 Inch Flute Length
Item: CX7JKPModel: C16192Cross Ref: 435C95
7 In Stock
Ships within 2 days via
10.00% off
€10.07 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Aircraft Drill | No |
| Application | Low Carbon Steel, Soft Alloy Steel, Aluminum, Non-Ferrous Materials, Copper Alloys, Free-Mach Stainless |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.1495 |
| Depthdia. Ratio | 8xd |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | #25 |
| Drill Diameter Tolerance | -0" to +0.0007" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0449" |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 1 7/8" |
| Flute Type | Spiral |
| Grade | Heavy Duty , High Performance |
| Helix Angle | +35° to +45° |
| List Number | 2065 |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | HIGH PERFORMANCE |
| Maximum Drilling Depth | 1 13/32" |
| Measurement System | Wire |
| Number Of Coolant Holes | 0 |
| Number Of Flutes | 2 |
| Overall Length | 3" |
| Primary Material Application | Aluminum And Non Ferrous Material |
| Primary Material Application Iso Code | N |
| Secondary Material Application | Stainless Steel, Steel |
| Secondary Material Application Iso Code | M, P |
| Series | 2065 Series |
| Shank Length | 1 1/8" |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Spiral Direction | Right Hand |
| Web Thinning | Thinned |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
