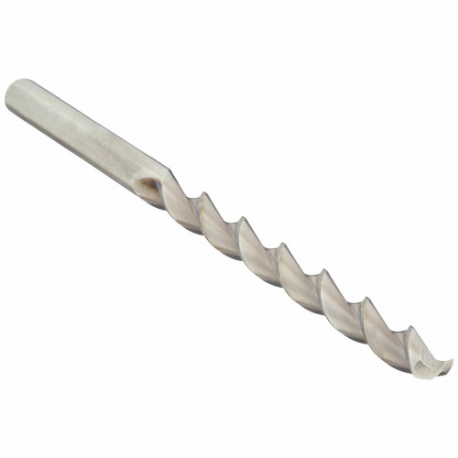

CLEVELAND C16183 2065 Jobber Length Drill Bit, #16 Size, 3-3/8 Inch Overall Length
Item: CQ9HVWModel: C16183Cross Ref: 435C89 / 2065
7 In Stock
Ships within 2 days via
10.00% off
€10.34 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Length Drill Bit |
| Aircraft Drill | No |
| Application | Low Carbon Steel, Soft Alloy Steel, Aluminum, Non-Ferrous Materials, Copper Alloys, Free-Mach Stainless |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.177 |
| Depth X Dia. Ratio | 8xd |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | #16 |
| Drill Diameter Tolerance | -0" to +0.0007" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0532" |
| Finish | Bright |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 2 3/16" |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Helix Angle | +35° to +45° |
| List Number | 2065 |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | HIGH PERFORMANCE |
| Max. Drilling Depth | 1 5/8" |
| Measurement System | Wire |
| No. Of Pieces | 0 |
| Number Of Coolant Holes | 0 |
| Number Of Flutes | 2 |
| Overall Length | 3 3/8" |
| Point Angle | 118° |
| Point Type | Split Point |
| Primary Material Application | Aluminum And Non Ferrous Material |
| Primary Material Application Iso Code | N |
| Secondary Material Application | Stainless Steel, Steel |
| Secondary Material Application Iso Code | M, P |
| Series | 2065 Series |
| Shank Length | 1 3/16" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Size | #16 |
| Spiral Direction | Right Hand |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8.99 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Coolant Fed | Flute Length | Decimal Equivalent | Max. Drilling Depth | Overall Length | Cutting Direction | Flute Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C72311 | Non-Coolant Through | 94 mm | 0.4409 | 2.766" | 142 mm | Right Hand | Spiral | Vanadium High Speed Steel | €30.28 | |
 |
C71311 | Non-Coolant Through | 94 mm | 0.4409 | 2 49/64" | 142 mm | - | Spiral | Vanadium High Speed Steel | €29.50 | |
|
C71315 | Non-Coolant Through | 101 mm | 0.4803 | 2 31/32" | 151 mm | Right Hand | Spiral | Vanadium High Speed Steel | €33.53 | |
|
C72315 | Non-Coolant Through | 101 mm | 0.4803 | 2 31/32" | 151 mm | Right Hand | Spiral | Vanadium High Speed Steel | €34.00 | |
 |
C03039 | Non-Coolant Through | 2 7/16" | 0.1935 | 1.812" | - | Right Hand | Fast Spiral | High Speed Steel | €9.41 | |
 |
C03756 | Non-Coolant Through | 2 7/16" | 0.1935 | 1.812" | 3 5/8" | Right Hand | Spiral | High Speed Steel | €22.46 | |
 |
C16177 | Non-Coolant Through | 2 7/16" | 0.1935 | 1.812" | 3 5/8" | Right Hand | Spiral | High Speed Steel | €12.56 |
