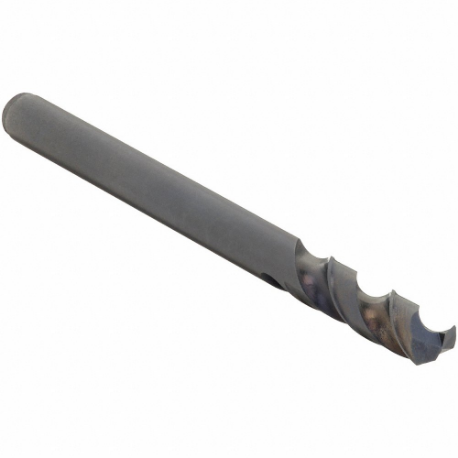

CLEVELAND C15946 3780 Jobber Length Drill Bit, #5 Size, 3-3/4 Inch Overall Length
Item: CQ9JTQModel: C15946Cross Ref: 435C16 / 3780
7 In Stock
Ships within 2 days via
5.00% off
€13.42 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Length Drill Bit |
| Aircraft Drill | No |
| Application | Alloy Steel, Tool Steel, Carbon Steel, Stainless Steel, Inconel |
| Coolant Fed | Non Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.2055 |
| Depth Dia. Ratio | 4Xd |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | #5 |
| Drill Dia. Tolerance | -0" to +0.0007" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0426" |
| Finish | Black Oxide |
| Finish-machining | Black Oxide |
| Flute Length | 1 1/4" |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Helix Angle | +35° to +45° |
| List Number | 3780 |
| Material | Cobalt |
| Material Grade-machining | Grade M42 |
| Material-machining | Cobalt |
| Max. Drilling Depth | 15/16" |
| Measurement System | Wire |
| No. Of Flutes | 2 |
| Overall Length | 3 3/4" |
| Point Angle | 135° |
| Point Type | Split Point |
| Primary Material Application | Cast Iron, Hi-Temp Alloy, Stainless Steel, Steel |
| Primary Material Application Iso Code | K, M, P, S |
| Series | 3780 Series |
| Shank Dia. | 0.203" , 13/64" |
| Shank Length | 2 1/2" |
| Shank Type | Straight |
| Shank Type-machining | Straight |
| Sheeter Drill | No |
| Size | #5 |
| Spiral Direction | Right Hand |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.59 |
| Ship length (cm) | 12.6 |
| Ship width (cm) | 2.59 |
| Country of Origin | US |
Product Variants
| Product | Model | Max. Drilling Depth | Shank Dia. | Decimal Equivalent | Flute Length | Flute Type | Cutting Direction | Overall Length | Drill Bit Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C15577 | 2.969" | 0.469" | 0.4823 | 101 mm | - | Right Hand | 151 mm | 12.25 mm | €117.67 | |
 |
C16612 | 1.969" | 0.219" | 0.228 | 2 5/8" | Parabolic | Right Hand | 3 7/8" | #1 | €44.05 | |
 |
C11401 | 1 31/32" | 0.219" | 0.228 | 2 5/8" | Parabolic | Right Hand | 3 7/8" | #1 | €53.40 | |
 |
C70134 | 1.969" | 0.219" | 0.228 | 2 5/8" | Spiral | Right Hand | 3 7/8" | #1 | €15.18 | |
|
C70143 | 1 13/16" | 3/16" | 0.1935 | 2 7/16" | Spiral | - | 3 5/8" | #10 | €11.78 | |
 |
C15940 | 7/8" | 3/16" | 0.1935 | 1 3/16" | Spiral | Right Hand | 3 5/8" | #10 | €12.68 | |
|
C16621 | 1.812" | 3/16" | 0.1935 | 2 7/16" | Parabolic | Right Hand | 3 5/8" | #10 | €36.37 |
