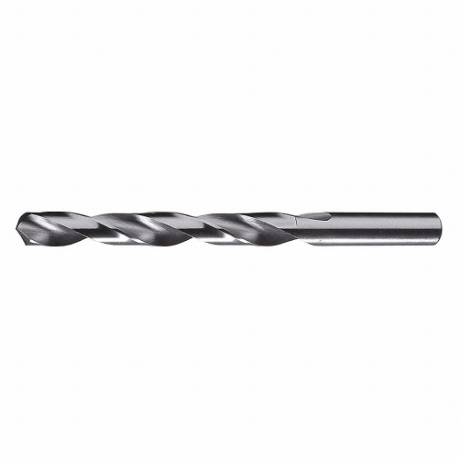

CLEVELAND C03563 2020 Jobber Length Drill Bit, #16 Size, 3-3/8 Inch Overall Length
Get it by Tuesday, Dec 23
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Jobber Length Drill Bit |
| Aircraft Drill | No |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right |
| Decimal Equivalent | 0.177 |
| Depthdia. Ratio | 4Xd |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | #16 |
| Drill Diameter Tolerance | -0" to +0.0007" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0532" |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 2 3/16" |
| Flute Type | Slow Spiral |
| Helix Angle | 10° to 20° |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | General Purpose |
| Maximum Drilling Depth | 1 5/8" |
| Measurement System | Wire |
| Number Of Coolant Holes | 0 |
| Number Of Flutes | 2 |
| Overall Length | 3 3/8" |
| Primary Material Application | Aluminum And Non Ferrous Material, Steel |
| Primary Material Application Iso Code | N, P |
| Series | 2020 Series |
| Shank Length | 1 3/16" |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Spiral Direction | Right Hand |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8.99 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Coolant Fed | Flute Length | Decimal Equivalent | Max. Drilling Depth | Overall Length | Cutting Direction | Flute Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C72311 | Non-Coolant Through | 94 mm | 0.4409 | 2.766" | 142 mm | Right Hand | Spiral | Vanadium High Speed Steel | €30.28 | |
 |
C71311 | Non-Coolant Through | 94 mm | 0.4409 | 2 49/64" | 142 mm | - | Spiral | Vanadium High Speed Steel | €29.50 | |
|
C71315 | Non-Coolant Through | 101 mm | 0.4803 | 2 31/32" | 151 mm | Right Hand | Spiral | Vanadium High Speed Steel | €33.53 | |
|
C72315 | Non-Coolant Through | 101 mm | 0.4803 | 2 31/32" | 151 mm | Right Hand | Spiral | Vanadium High Speed Steel | €34.00 | |
 |
C03039 | Non-Coolant Through | 2 7/16" | 0.1935 | 1.812" | - | Right Hand | Fast Spiral | High Speed Steel | €9.41 | |
 |
C03756 | Non-Coolant Through | 2 7/16" | 0.1935 | 1.812" | 3 5/8" | Right Hand | Spiral | High Speed Steel | €22.46 | |
 |
C16177 | Non-Coolant Through | 2 7/16" | 0.1935 | 1.812" | 3 5/8" | Right Hand | Spiral | High Speed Steel | €12.56 |
