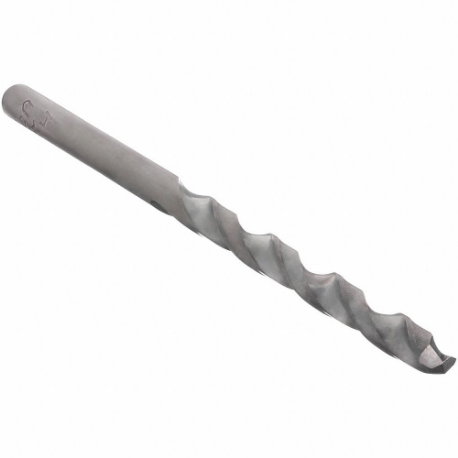

CLEVELAND C02872 Jobber Length Drill Bit, 15/32 Inch Size Drill Bit Size, 5-3/4 Inch Overall Length | CQ9KRE 434T85

CLEVELAND C02872 2011 Jobber Length Drill Bit, 15/32 Inch Size Size, 5-3/4 Inch Overall Length

Item: CQ9KREModel: C02872Cross Ref: 434T85 / 2011
7 In Stock

Ships within 2 days via

€36.89
10.00% off
€33.19 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Jobber Length Drill Bit
Aircraft Drill No
Application Alloy-Tool Steel, Free-Mach Stainless, Cast Iron, Heavy Duty
Coolant Fed Non-Coolant Through
Coolant Through No
Cutting Direction Right Hand
Decimal Equivalent 0.4688
Depth X Dia. Ratio 4xd
Depthdia. Ratio 4Xd
Drill Bit Dimension Type Fractional Inch
Drill Bit Finish Black Oxide
Drill Bit Grouping Drill Bit
Drill Bit Material High Speed Steel
Drill Bit Point Angle 135°
Drill Bit Point Type Split Point
Drill Bit Size 15/32"
Drill Diameter Tolerance -0.001" to 0"
Drill Length Class Jobber Length
Drill Point Length 0.0971"
Finish Black Oxide
Finish - Machining Black Oxide
Flute Length 4 5/16"
Flute Type Spiral
Grade Heavy Duty
Helix Angle +21° to +34°
Left/right Hand Right
List Number 2011
Material High Speed Steel
Material - Machining High Speed Steel
Material Grade - Machining HIGH PERFORMANCE
Max. Drilling Depth 3.234"
Maximum Drilling Depth 3 15/64"
Number Of Coolant Holes 0
Number Of Flutes 2
Overall Length 5 3/4"
Point Angle 135°
Point Type Split Point
Primary Material Application Cast Iron, Steel
Primary Material Application Iso Code K, P
Secondary Material Application Stainless Steel
Secondary Material Application Iso Code M
Series 2011 Series
Shank Length 1 7/16"
Shank Type Straight
Shank Type - Machining Straight
Sheeter Drill No
Size 0.469"
Spiral Direction Right Hand
System Of Measurement Fractional Inch
Web Thinning Thinned

Shipping Info:

Ship weight (kg) 0.1
Ship height (cm)3.51
Ship length (cm)15.8
Ship width (cm)3.51
Country of OriginUS

Product Variants

ProductModelCoolant FedFlute LengthDecimal EquivalentMax. Drilling DepthOverall LengthCutting DirectionFlute TypeMaterialPrice
CLEVELAND C72311 Jobber Drill Bit, 11.20 mm Drill Bit Size, 94 mm Flute Length, 142 mm Overall Length | CQ9HPY 406L52 C72311Non-Coolant Through94 mm0.44092.766"142 mmRight HandSpiralVanadium High Speed Steel€30.28
CLEVELAND C71311 Jobber Drill Bit, 11.20 mm Drill Bit Size, 94 mm Flute Length, 142 mm Overall Length | CQ9HPZ 406J29 C71311Non-Coolant Through94 mm0.44092 49/64"142 mm-SpiralVanadium High Speed Steel€29.50
CLEVELAND C71315 Jobber Drill Bit, 12.20 mm Drill Bit Size, 101 mm Flute Length, 151 mm Overall Length | CQ9HQA 406J32 C71315Non-Coolant Through101 mm0.48032 31/32"151 mmRight HandSpiralVanadium High Speed Steel€33.53
CLEVELAND C72315 Jobber Drill Bit, 12.20 mm Drill Bit Size, 101 mm Flute Length, 151 mm Overall Length | CQ9HQB 406L55 C72315Non-Coolant Through101 mm0.48032 31/32"151 mmRight HandSpiralVanadium High Speed Steel€34.00
CLEVELAND C03039 Jobber Length Drill Bit, #10 Drill Bit Size, 3-5/8 Inch Overall Length | CQ9HQV 434U69 C03039Non-Coolant Through2 7/16"0.19351.812"-Right HandFast SpiralHigh Speed Steel€9.41
CLEVELAND C03756 Jobber Length Drill Bit, #10 Drill Bit Size, 3-5/8 Inch Overall Length | CQ9HRA 434W35 C03756Non-Coolant Through2 7/16"0.19351.812"3 5/8"Right HandSpiralHigh Speed Steel€22.46
CLEVELAND C16177 Jobber Length Drill Bit, #10 Drill Bit Size, 3-5/8 Inch Overall Length | CQ9HRB 435C84 C16177Non-Coolant Through2 7/16"0.19351.812"3 5/8"Right HandSpiralHigh Speed Steel€12.56
