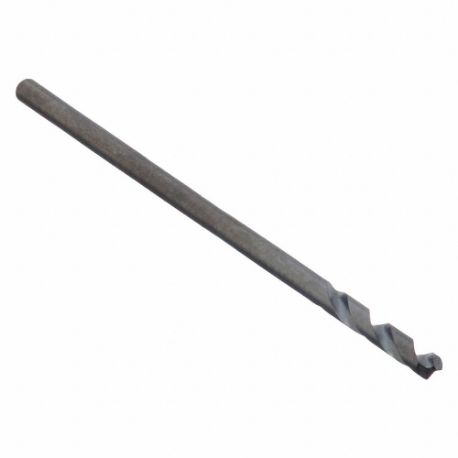

CLEVELAND C01014 2001 Jobber Length Drill Bit, #79 Size, 3/4 Inch Overall Length
Item: CQ9KCDModel: C01014Cross Ref: 434R75 / 2001
7 In Stock
Ships within 2 days via
10.00% off
€14.23 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Length Drill Bit |
| Aircraft Drill | No |
| Application | Carbon Steel, Cast Iron, Non-Ferrous Materials |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.0145 |
| Depth X Dia. Ratio | 4xd |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | #79 |
| Drill Diameter Tolerance | -0" to +0.0005" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0044" |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 1/8" |
| Flute Type | Spiral |
| Grade | High Performance |
| Helix Angle | +21° to +34° |
| Left/right Hand | Right |
| List Number | 2001 |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | HIGH PERFORMANCE |
| Max. Drilling Depth | 3/32" |
| Measurement System | Wire |
| No. Of Pieces | 26 |
| Number Of Coolant Holes | 0 |
| Number Of Flutes | 2 |
| Overall Length | 3/4" |
| Point Angle | 118° |
| Point Type | Conventional Point |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Series | 2001 Series |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Size | #79 |
| Spiral Direction | Right Hand |
| Web Thinning | Thinned |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8.51 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Coolant Fed | Flute Length | Decimal Equivalent | Max. Drilling Depth | Overall Length | Cutting Direction | Flute Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C72311 | Non-Coolant Through | 94 mm | 0.4409 | 2.766" | 142 mm | Right Hand | Spiral | Vanadium High Speed Steel | €30.28 | |
 |
C71311 | Non-Coolant Through | 94 mm | 0.4409 | 2 49/64" | 142 mm | - | Spiral | Vanadium High Speed Steel | €29.50 | |
|
C71315 | Non-Coolant Through | 101 mm | 0.4803 | 2 31/32" | 151 mm | Right Hand | Spiral | Vanadium High Speed Steel | €33.53 | |
|
C72315 | Non-Coolant Through | 101 mm | 0.4803 | 2 31/32" | 151 mm | Right Hand | Spiral | Vanadium High Speed Steel | €34.00 | |
 |
C03039 | Non-Coolant Through | 2 7/16" | 0.1935 | 1.812" | - | Right Hand | Fast Spiral | High Speed Steel | €9.41 | |
 |
C03756 | Non-Coolant Through | 2 7/16" | 0.1935 | 1.812" | 3 5/8" | Right Hand | Spiral | High Speed Steel | €22.46 | |
 |
C16177 | Non-Coolant Through | 2 7/16" | 0.1935 | 1.812" | 3 5/8" | Right Hand | Spiral | High Speed Steel | €12.56 |
