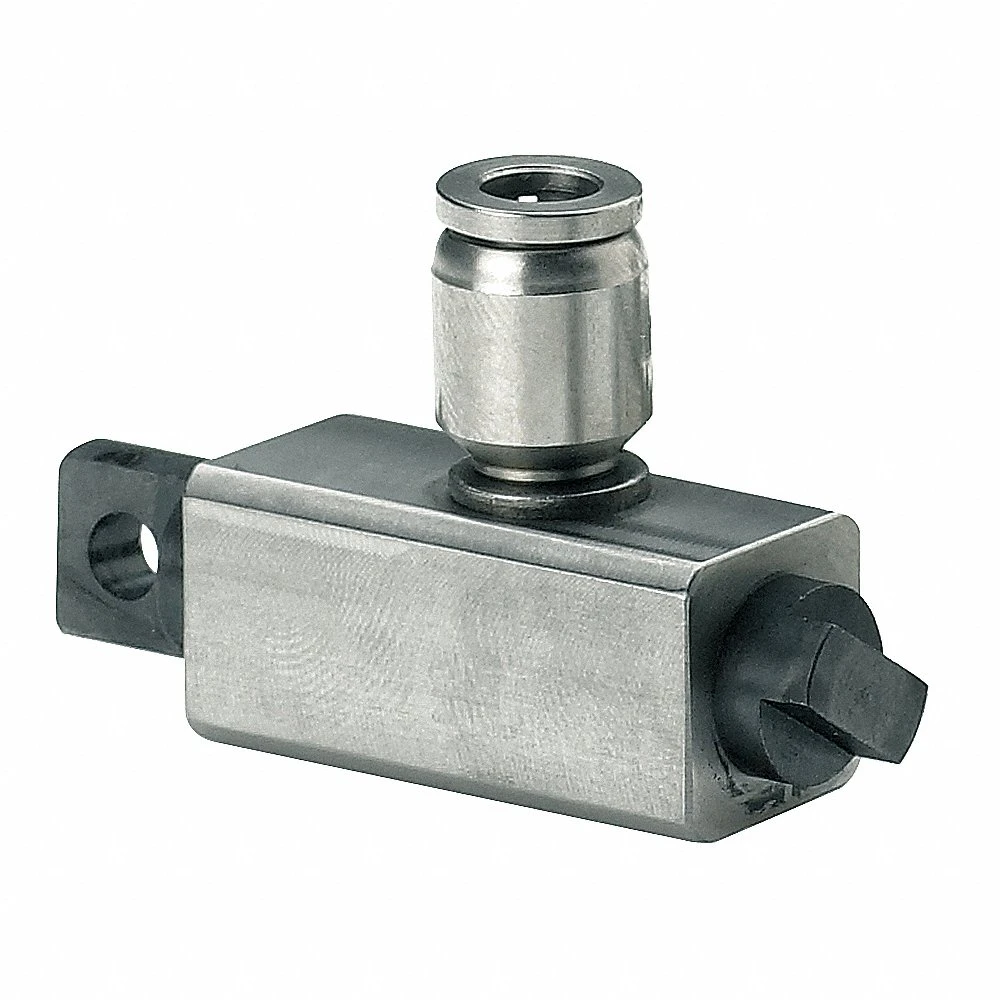

CLEVELAND VIBRATOR CO. VM-25 VM-25 Miniature Piston Vibrator, 3/16 Inch Inlet OD, 16000 VPM Frequency at 80 psi
Item: AA8KLWModel: VM-25Cross Ref: 18K850 / VM-25
7 In Stock
Ships within 2 days via
13.00% off
€176.96 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Miniature Piston Vibrator |
| Airflow Rate | 2 CFM @ 80 psi |
| Application | Chemical Plants, Filling Machines, Manufacturing, Packaging, Parts Tracks, Pharmaceutical |
| Bin Weight Capacity | 100 lbs. |
| Bin Weight Capacity | 100 lb. |
| Cfm @ 60 Psi | 2.3 CFM |
| Cfm @ 60 Psi | 2.3 |
| Cfm @ 80 Psi | 2 |
| Cfm @ 80 Psi | 2 CFM |
| Compatible Muffler Grainger Part Number | 1EJX3 |
| Db @ 60 Psi | 95 |
| Db @ 60 Psi | 95 dBA |
| Db @ 80 Psi | 95 |
| Duty | Intermittent |
| Duty Cycle | Intermittent |
| Features | Dual Diameter Piston Allows For Mounting At Any Angle, Tight Tolerance Bore And Spring Less Design |
| Force @ Psi | 15 lbf. @ 80 psi |
| Force Rating | 15 lb. |
| Force Rating | 15 lbs. |
| Housing Material | Stainless Steel |
| Housing Material Grade | 304 |
| Included | Grade 5 Mounting Hardware, Push-Fit Hose Connection |
| Inlet Connection | 3/4" x 1/4" |
| Inlet Connection Size | #10-32 |
| Inlet Connection Type | UNF |
| Inlet Port | 1/4" OD Hose |
| Max. Force | 15 lbf. |
| Max. Inlet Pressure | 80 psi |
| Max. Pressure | 80 psi |
| Max. Temp. | 200°F |
| Max. Vibration Speed | 13500 VPM |
| Mounting | Universal |
| Mounting Plate | No |
| Mounting Type | End |
| Muffler | 1EJX3 |
| Outlet Port | #10-32 UNF |
| Overall Height | 0.94" |
| Overall Length | 2.19" |
| Overall Width | 0.63" |
| Pneumatic Vibrator Type | Piston |
| Product Datasheet | cleveland-vibrator-co-2290025.pdf |
| Series | VM Series |
| Sound Level | 95 dBA |
| Speed @ 60 Psi | 13500 VPM |
| Speed @ 60 Psi | 13,500 vpm |
| Speed @ 80 Psi | 16000 VPM |
| Speed @ 80 Psi | 16,000 vpm |
| Vibration Speeds @ Psi | 13500 VPM @ 60 psi, 16000 VPM @ 80 psi |
| Vibrator Type | Piston |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 5.56 |
| Ship width (cm) | 1.6 |
| HS code | 8412390080 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Overall Length | Overall Width | Overall Height | Speed @ 60 Psi | Force Rating | Cfm @ 80 Psi | Speed @ 80 Psi | Cfm @ 60 Psi | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

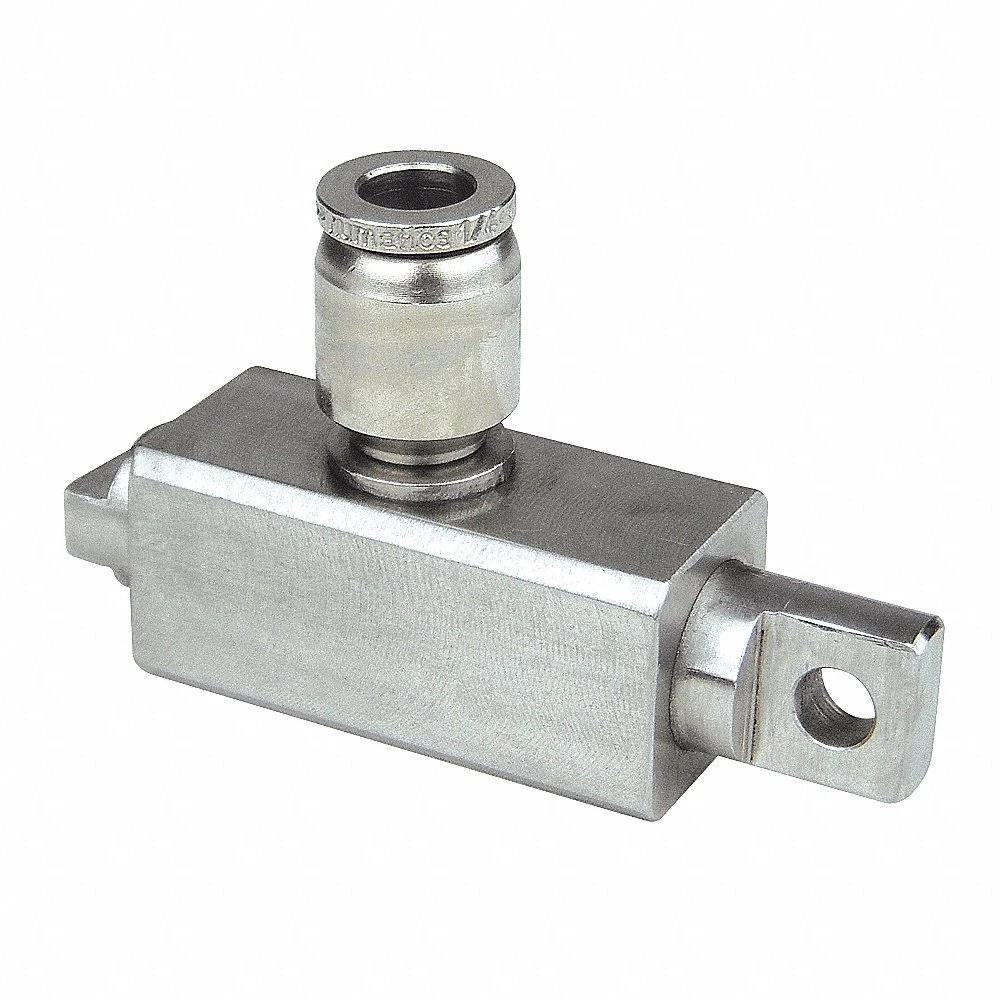

VM-25 SS | 2.19" | 1/2" | 0.94" | 13500 VPM | 15 lbs. | 2 CFM | 16000 VPM | 2.3 CFM | €391.35 | |
|
VM-38 | 2.88" | 0.63" | 1 1/4" | 10600 VPM | 21 lbs. | 2.1 CFM | 11400 VPM | 1.2 CFM | €239.32 | |
 |
1290025 | - | - | - | - | - | - | - | - | €130.43 | |
|
2290027 | - | - | - | - | - | - | - | - | €146.21 | |
|
2290039 | - | - | - | - | - | - | - | - | €146.21 | |
|
2291039 | - | - | - | - | - | - | - | - | €238.78 |
