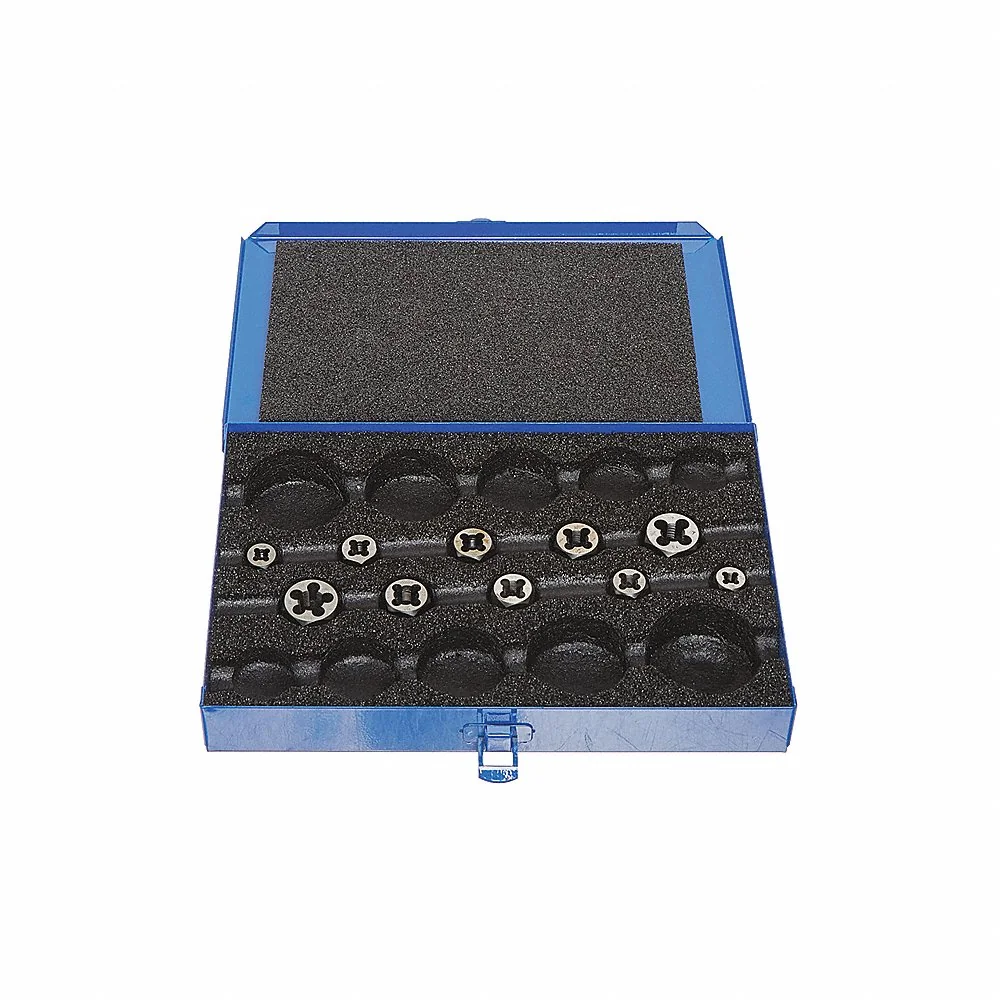

CLE-LINE C67284 Tap and Die Set, 1/4 Inch Size-20 Smallest Thread Size
Item: CQ9CZMModel: C67284Cross Ref: 50AT18
7 In Stock
Ships within 2 days via
10.00% off
€628.70 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tap and Die Set |
| 55% Thread Drill Size | #3, 10.2 mm, 11.3 mm, 11.8 mm, 11/32", 5.7 mm, 8.4 mm, 9/32", I, W |
| 65% Thread Drill Size | #5, 10 mm, 11 mm, 11.6 mm, 17/64", 7/32", J, P, R, V |
| 75% Thread Drill Size | #7, 11.4 mm, 27/64", 5.45 mm, 5/16", 8.5 mm, 9.95 mm, F, I, U |
| Case Type | Metal |
| Class Of Fit | Class 2B |
| Coolant Fed | Non-Coolant Through |
| Die Material | High Speed Steel |
| Die Type | Solid |
| Dimensions Standard | Fractional Inch |
| Extended Neck | No |
| Extended Shank | No |
| Extension Tap | No |
| Features | Rethreading |
| Largest Thread Size | 1/2"-20 |
| Material | High Speed Steel |
| Measurement System | Fractional Inch |
| Number Of Dies In Set | 10 |
| Number Of Flutes | 0 |
| Number Of Pieces | 10 |
| Number Of Taps | 0 |
| Powdered Metal Base Material | No |
| Primary Material Application | All Materials |
| Primary Material Application Iso Code | H, K, M, N, P, S |
| Secondary Material Application | Stainless Steel |
| Secondary Material Application Iso Code | M |
| Smallest Thread Size | 1/4"-20 |
| Spiral Direction | Neutral |
| System Of Measurement | Imperial |
| Tap Finish | Bright Uncoated |
| Tap Material | High Speed Steel |
| Thread Direction | Right Hand |
| Thread Sizes Included | 1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20 |
| Thread Standard | UNC, UNF |
| Threads Per Inch | 13, 14, 16, 18, 20, 24, 28 |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Thread Sizes Included | Number Of Dies In Set | Die Material | Largest Thread Size | Smallest Thread Size | Thread Standard | Die Thickness | Hex Sizes Included | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C67278 | 1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13, 9/16"-12, 5/8"-11, 3/4"-10, 7/8"-9, 1"-8 | 10 | - | 1"-8 | 1/4"-20 | Coarse | 1" | 1"-8, 1/2"-13, 1/4"-20, 3/4"-10, 3/8"-16, 5/16"-18, 5/8"-11, 7/16"-14, 7/8"-9, 9/16"-12 | €700.73 | |
 |
C67275 | 1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13, 9/16"-12, 5/8"-11, 3/4"-10 | 8 | Carbon Steel | 5/8" | 1/4"-20 | Coarse | 5/8" | 1/2"-13, 1/4"-20, 3/4"-10, 3/8"-16, 5/16"-18, 5/8"-11, 7/16"-14, 9/16"-12 | €489.59 | |
 |
C67276 | 1/4"-28, 5/16"-24, 3/8"-24, 7/16"-20, 1/2"-20, 9/16"-18, 5/8"-18, 3/4"-16 | 8 | Carbon Steel | 9/16"-18 | 1/4"-28 | Coarse | 3/4" | 1/2"-20, 1/4"-28, 3/4"-16, 3/8"-24, 5/16"-24, 5/8"-18, 7/16"-20, 9/16"-18 | €528.65 | |
 |
C67283 | M6 x 1, M8 x 1.25, M10 x 1.5, M12 x 1.75, M14 x 2, M16 x 2, M20 x 2.5 | 7 | Carbon Steel | M20 x 2.5 | M6 x 1 | Metric | 3/32" | M10X1.5, M12X1.75, M14X2, M16X2, M20X2.5, M6X1, M8X1.25 | €500.34 |
