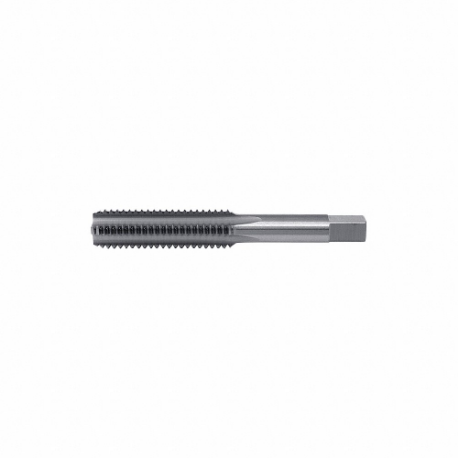

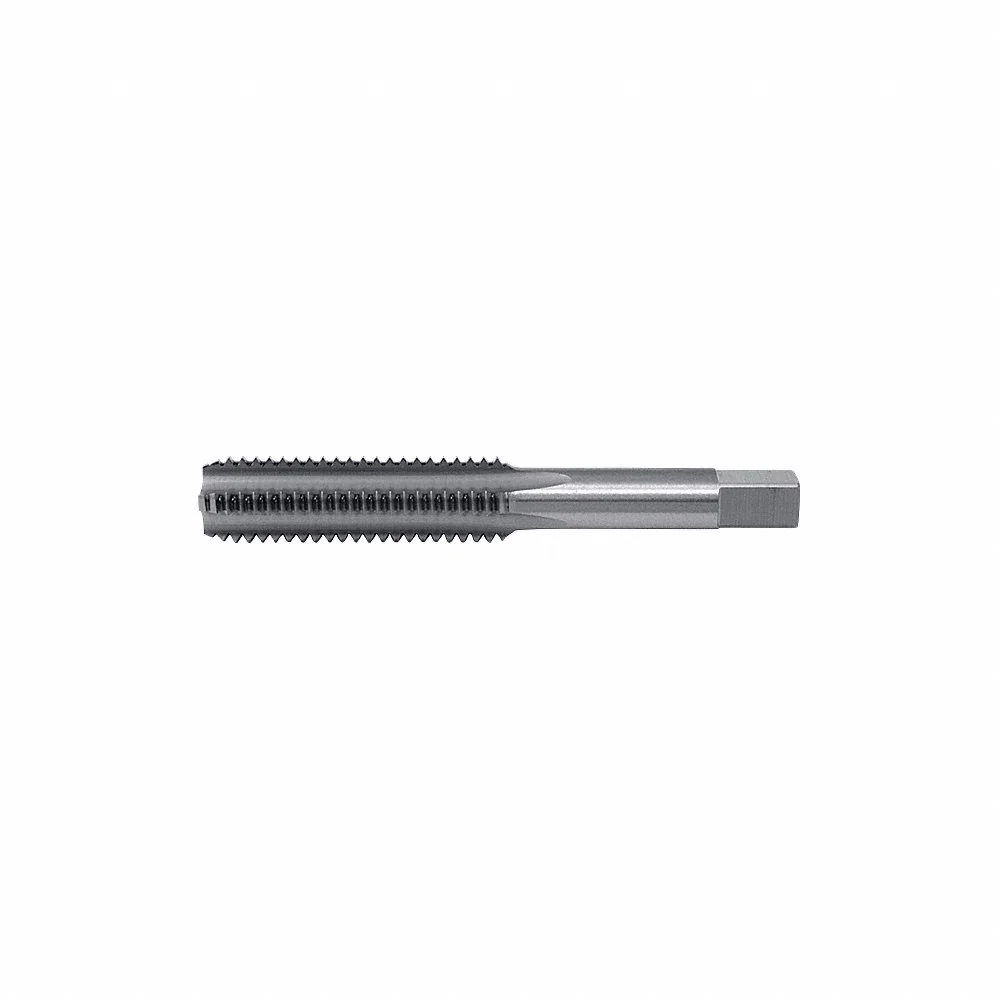

CLE-LINE C62079 Straight Flute Tap, 5/8-11 Thread Size, 1 13/16 Inch Thread Length, 3 13/16 Inch Length
Item: CQ9CVMModel: C62079Cross Ref: 50CA96
7 In Stock
Ships within 2 days via
10.00% off
€63.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Straight Flute Tap |
| 55% Thread Drill Size | 14.2 mm |
| 65% Thread Drill Size | 13.9 mm |
| 75% Thread Drill Size | 13.6 mm |
| Extended Neck | Yes |
| Finish | Bright |
| Fits Class | Class 3B |
| Measurement System | Fractional Inch |
| Number Of Flutes | 4 |
| Overall Length | 3 13/16" |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| Primary Material Application Iso Code | K, N, P |
| Shank Dia. | 15/32" |
| Shank Length | 2" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 0.11" |
| Standards | USCTI Table 302 |
| System Of Measurement | Imperial |
| Tap Chamfer | Bottoming |
| Tap Finish | Bright |
| Tap Length Standard | USCTI |
| Tap Material | High Speed Steel |
| Tap Shank Standard | USCTI |
| Tap Style | Straight Flute (Hand) |
| Thread Direction | Right Hand |
| Thread Length | 1 13/16" |
| Thread Limit | H3 |
| Thread Limit / Class Of Fit | H3, 3B |
| Thread Size | 5/8"-11 |
| Thread Standard | Coarse |
| Threads Per Inch | 11 |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Thread Length | Thread Limit | Overall Length | Thread Size | Number Of Flutes | 75% Thread Drill Size | Shank Dia. | Thread Standard | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C00766 | - | H1 | 1 5/8" | #0-80 | 2 | 1.2 mm | 9/64" | Fine | €38.38 | |
 |
C00770 | 5/16" | H1 | 1 5/8" | #0-80 | 2 | 1.2 mm | 9/64" | Fine | €38.67 | |
 |
C00761 | 5/16" | H1 | 1 5/8" | #0-80 | 2 | 1.2 mm | 9/64" | Fine | €36.74 | |
 |
C62155 | 7/8" | H3 | 2 3/8" | #10-24 | 2 | #25 | 3/16" | Coarse | €18.15 | |
 |
C00730 | 7/8" | H2 | 2 3/8" | #10-24 | 4 | #25 | 5/32" | Coarse | €17.09 | |
 |
C62019 | 7/8" | H3 | 2 3/8" | #10-24 | 4 | #25 | 3/16" | Coarse | €16.34 | |
 |
C62018 | 7/8" | H3 | 2 3/8" | #10-24 | 4 | #25 | 3/16" | Coarse | €16.34 |
