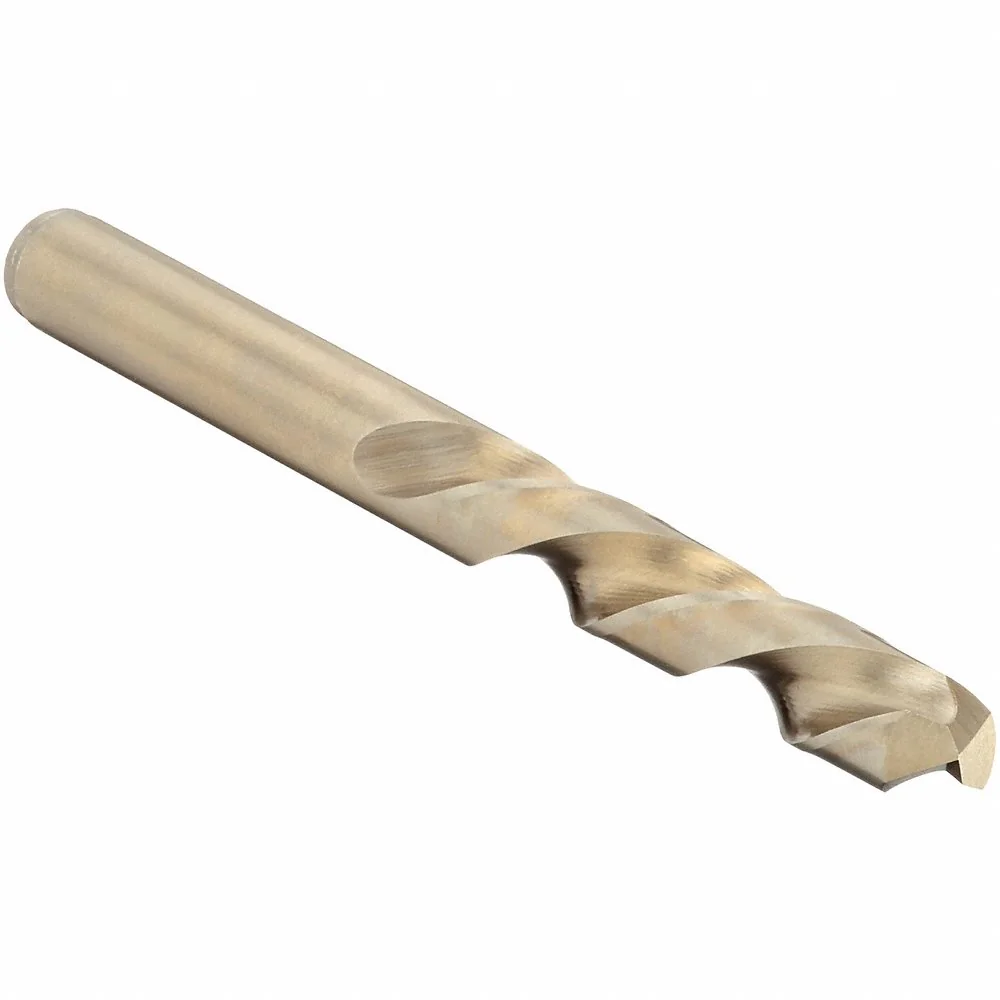

CLE-LINE C30505 Heavy Duty Mechanics Drill Bit, 5/64 Inch Drill Size, 2 Inch Overall Length, 135 deg Split Point, Cobalt, Straw Oxide
Item: CQ9BVZModel: C30505Cross Ref: 1TPE8
7 In Stock
Ships within 2 days via
5.00% off
€5.48 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mechanics Drill Bit |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Left Hand |
| Decimal Equivalent | 0.0781 |
| Depth Dia. Ratio | 4Xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt Steel |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 5/64" |
| Drill Length Class | Mechanics Length |
| Finish | Straw, Bronze |
| Finish-machining | Straw, Bronze |
| Flute Length | 1" |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Helix Angle | 28° |
| Left/right Hand | Left |
| List Number | 1880 |
| Material | Cobalt |
| Material-machining | Cobalt |
| Max. Drilling Depth | 5/16" |
| No. Of Flutes | 2 |
| No. Of Pieces | 1 |
| Overall Length | 2" |
| Point Angle | 135° |
| Point Type | Split Point |
| Primary Material Application | Cast Iron, Hardened Steel, Nickel, Stainless Steel, Steel, Titanium |
| Primary Material Application Iso Code | H, K, M, P, S |
| Shank Dia. | 5/64" |
| Shank Length | 1" |
| Shank Type | Straight |
| Shank Type-machining | Straight |
| Size | 0.078" |
| Spiral Direction | Left Hand |
| System Of Measurement | Imperial |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Flute Length | Material-machining | Finish-machining | Material | Drill Bit Material | Finish | Shank Dia. | Max. Drilling Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C23830 | 7/8" | High Speed Steel | Black Oxide | High Speed Steel | High Speed Steel | Black Oxide | 1/16" | 1/4" | €3.01 | |
|
C30532 | 3 3/8" | Cobalt | Straw, Bronze | Cobalt | Cobalt Steel | Straw, Bronze | 1/2" | 2" | €40.93 | |
 |
C23859 | 3 3/8" | High Speed Steel | Black Oxide | High Speed Steel | High Speed Steel | Black Oxide | 1/2" | 2" | €26.07 | |
|
C30516 | 2" | Cobalt | Straw, Bronze | Cobalt | Cobalt Steel | Straw, Bronze | 1/4" | 1" | €11.47 | |
|
C23842 | 2" | High Speed Steel | Black Oxide | High Speed Steel | High Speed Steel | Black Oxide | 1/4" | 1" | €7.52 | |
|
C23834 | 1 7/16" | High Speed Steel | Black Oxide | High Speed Steel | High Speed Steel | Black Oxide | 1/8" | 1/2" | €4.59 | |
 |
C23702 | 1 7/16" | High Speed Steel | Black Oxide | - | - | - | 1/8" | 1/2" | - | RFQ
|
