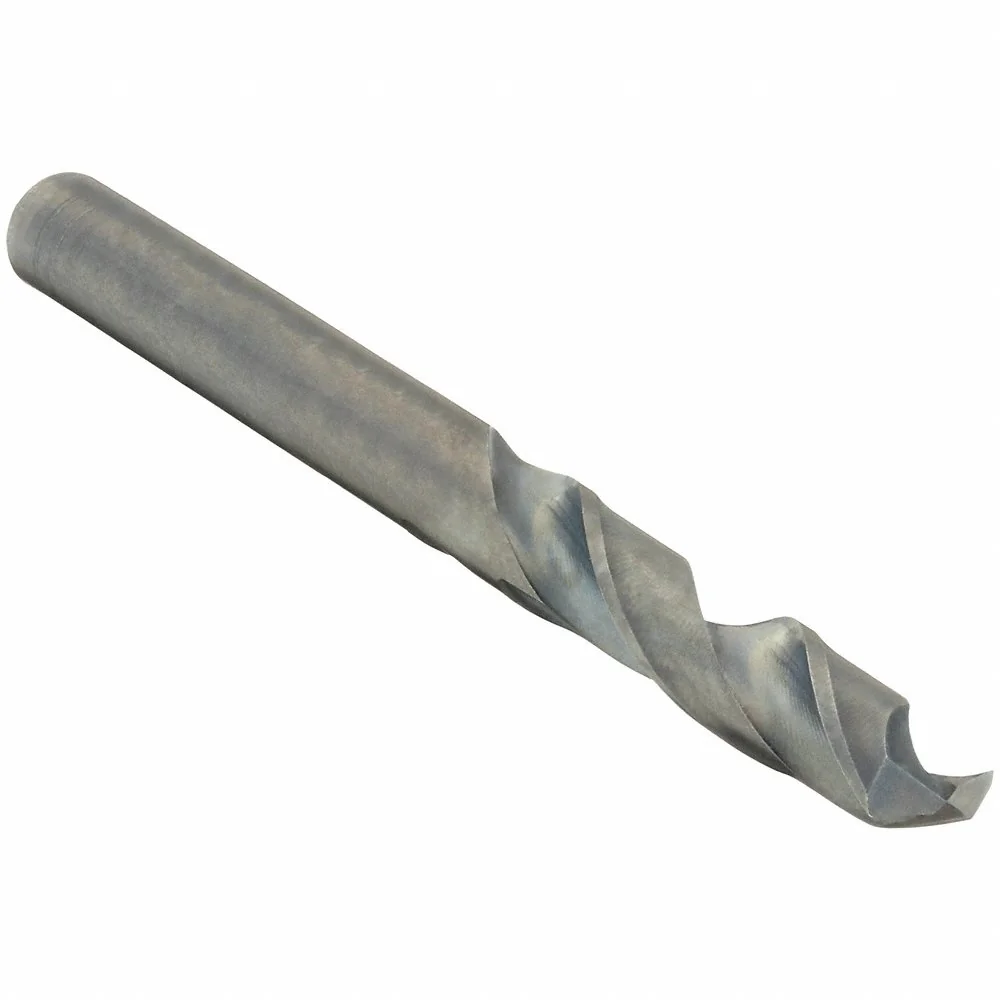

CLE-LINE C23472BP Screw Machine Drill Bit, 1/4 Inch Size, 1 3/8 Inch Flute Length
Item: CQ9CGZModel: C23472BPCross Ref: 439Y98
7 In Stock
Ships within 2 days via
10.00% off
€4.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Screw Machine Drill Bit |
| Application | For Drilling Carbon Steel, Cast Iron, Stainless Steel, Tool Steel |
| Coolant Fed | Non Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.25 |
| Depth X Dia. Ratio | 4xd |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 1/4" |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.0518" |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 1 3/8" |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Helix Angle | 28° |
| List Number | 1896 |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | Heavy Duty |
| Max. Drilling Depth | 1 3/8" |
| Measurement System | Fractional Inch |
| No. Of Pieces | 0 |
| Number Of Flutes | 2 |
| Overall Length | 2 1/2" |
| Shank Dia. | 1/4" |
| Shank Length | 1 1/8" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Drill Bit Size | Decimal Equivalent | Overall Length | Shank Dia. | Max. Drilling Depth | Price | |
|---|---|---|---|---|---|---|---|
| C23559 | #1 | 0.228 | 2 7/16" | 0.234" | 1 5/16" | €4.95 | |
| C23550 | #10 | 0.1935 | 2 1/4" | 0.188" | - | €3.96 | |
| C23550BP | #10 | 0.1935 | 2 1/4" | 0.188" | - | €3.75 | |
| C23549 | #11 | 0.191 | 2 1/4" | 0.188" | 1 3/16" | €4.25 | |
| C23548 | #12 | 0.189 | 2 1/4" | 0.188" | 1 3/16" | €3.67 | |
| C23547 | #13 | 0.185 | 2 3/16" | 0.188" | 1 1/8" | €4.00 | |
| C23546 | #14 | 0.182 | 2 3/16" | 0.188" | 1 1/8" | €4.33 |
