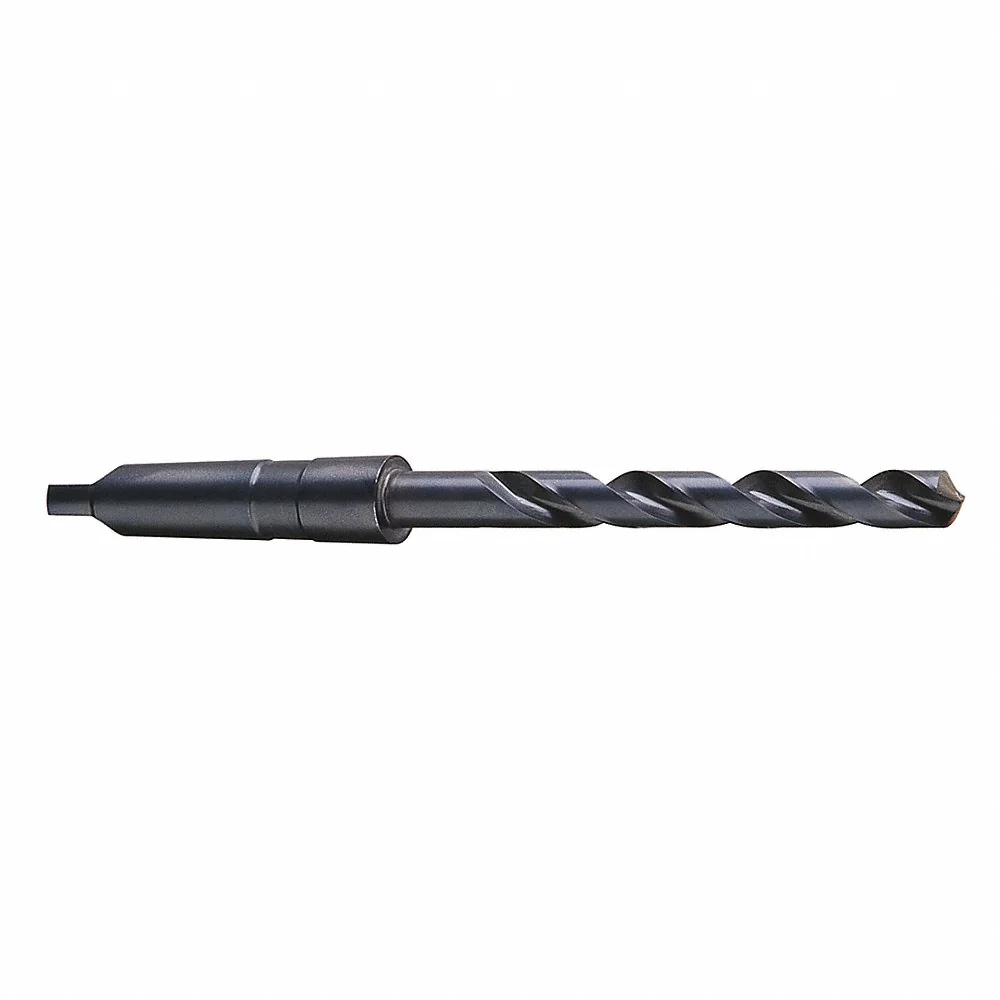

CLE-LINE C20030 Drill Bit, 3/4 Inch Drill Bit Size, 5 7/8 Inch Flute Length, Mt3 Taper Shank
Item: CQ8YXEModel: C20030Cross Ref: 50AZ19
7 In Stock
Ships within 2 days via
10.00% off
€111.01 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Drill Bit |
| Application | General Purpose Drilling |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.75 |
| Depth X Dia. Ratio | 4xd |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 3/4" |
| Drill Diameter Tolerance | -0.0012" to 0" |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 5 7/8" |
| Flute Type | Spiral |
| Helix Angle | +21° to +34° |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Max. Drilling Depth | 5 7/8" |
| Number Of Flutes | 2 |
| Overall Length | 5 1/2" |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Shank Type | Taper |
| Shank Type - Machining | Taper |
| Spiral Direction | Right Hand |
| System Of Measurement | Fractional Inch |
| Taper Shank Size | MT3 |
Shipping Info:
| Ship weight (kg) | 0.52 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Drill Bit Size | Decimal Equivalent | Max. Drilling Depth | Overall Length | Price | |
|---|---|---|---|---|---|---|
| C20568 | 1 1/16" | 1.0625 | 6 5/8" | 11 1/4" | €164.10 | |
| C20596 | 1 1/2" | 1.5 | 9 3/8" | 15" | €487.52 | |
| C20566 | 1 1/32" | 1.0039 | 6 1/2" | 11 1/8" | €154.03 | |
| C20043 | 1 1/4" | 1.25 | 7 7/8" | 12 1/2" | €283.64 | |
| C20580 | 1 1/4" | 1.25 | 7 7/8" | 13 1/2" | €218.86 | |
| C20040 | 1 1/8" | 1.125 | 7 1/8" | 11 3/4" | €211.80 | |
| C20572 | 1 1/8" | 1.125 | 7 1/8" | 12 3/4" | €181.73 |
