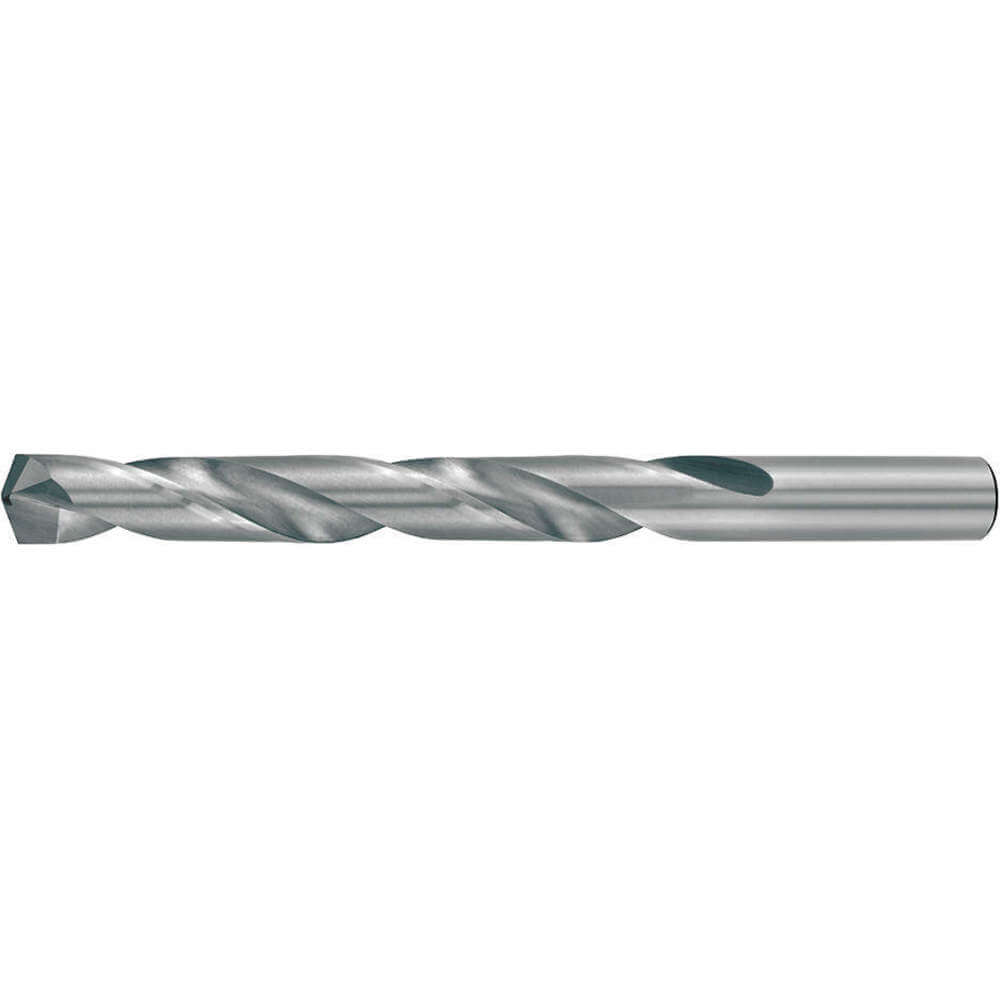

CJT KOOLCARB 12502340 Jobber Drill Bit Letter A 135 Degrees
Item: AH9RLKModel: 12502340Cross Ref: 41AG62
7 In Stock
Ships within 2 days via
10.00% off
€40.68 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Drill Bit |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.234 |
| Depthdia. Ratio | 9xd |
| Dimension Type | Letter |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | 4 Facet Point |
| Drill Bit Size | A |
| Drill Diameter Tolerance | -0" to +0.0007" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 1.23 mm |
| Finish | Uncoated |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 2 3/4" |
| Flute Type | Spiral |
| Helix Angle | 30° |
| Material - Machining | Carbide Tipped |
| Measurement System | Letter |
| Number Of Flutes | 2 |
| Overall Length | 4" |
| Point Angle | 135° |
| Point Type | 4 Facet Split |
| Primary Material Application | All Materials |
| Primary Material Application Iso Code | H, K, M, N, O, P, S |
| Shank Dia. | 0.234" |
| Shank Diameter | 5.9 mm |
| Shank Length | 1 1/4" |
| Shank Type - Machining | Straight |
| Size | A |
| Spiral Direction | Right Hand |
| Standards | Not Rated |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 1.27 |
| Country of Origin | US |
Product Details:
- Coolant Through : No
Product Variants
| Model | Decimal Equivalent | Flute Length | Drill Bit Size | Coolant Fed | Shank Dia. | Overall Length | Shank Length | Drill Point Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 12501470 | 0.147" | 2" | - | - | 0.147" | 3 1/8" | - | - | €32.20 | |
| 12501570 | 0.157 | 2" | #22 | Non Coolant Through | - | 3 1/8" | 1 1/8" | 0.83 mm | €30.75 | |
| 12501935 | 0.1935 | 2 1/2" | #10 | Non Coolant Through | 0.194" | 3 3/4" | 1 1/4" | 1.02 mm | - | RFQ
|
| 12502055 | 0.2055 | 2 1/2" | #5 | Non Coolant Through | 0.206" | - | 1 1/4" | 1.08 mm | €37.88 | |
| 12502380 | 0.238 | 2 3/4" | B | Non Coolant Through | 0.238" | 4" | 1 1/4" | 1.25 mm | €43.13 | |
| 12502460 | 0.246 | 2 3/4" | D | Non Coolant Through | 0.246" | 4" | 1 1/4" | 1.29 mm | - | RFQ
|
| 12502610 | 0.261 | 2 15/16" | G | Non Coolant Through | 0.261" | 4 1/4" | 1 5/16" | 1.37 mm | - | RFQ
|
