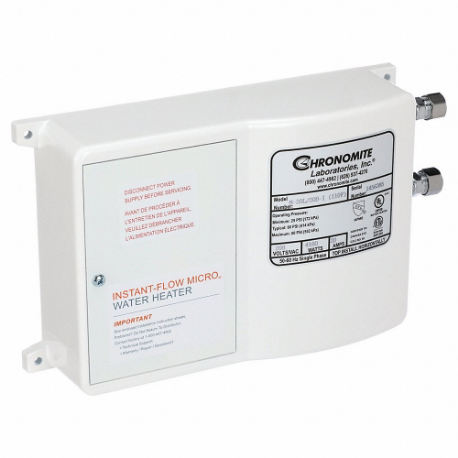

CHRONOMITE LABS M20L/208HTR 110F-I Electric Tankless Water Heater, Indoor, 4,160 W, 1.5 gpm Max. Flow Rate, 80 psi Max. Water Pressure
Item: CQ8YAFModel: M20L/208HTR 110F-ICross Ref: 54EL09
7 In Stock
Ships within 2 days via
13.00% off
€322.13 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Electric Tankless Water Heater |
| Adjustable Thermostat | No |
| Amps | 20A |
| Application | Bar Sinks, Metering Sinks, Sensor Hand Washing Faucet, Utility Sinks |
| Cold Inlet Size | 3/8" |
| Cold Inlet Type | Compression |
| Commercial/residential | Both |
| Cord Conductor Gauge | 12 AWG |
| Element Material | Celcon Plastic |
| Elements | Bare Wire Nickel Chrome |
| Environment | Indoor |
| Hot Outlet Size | 3/8" |
| Hot Outlet Type | Compression |
| Housing Material | Aluminum |
| Included | Compression Fittings, Faucet Flow Control |
| Market | Commercial, Residential |
| Material | Aluminum |
| Max. Delivered Temp. | 160°F |
| Max. Flow Rate | 1.5 GPM |
| Max. Water Pressure | 80 psi |
| Min. Delivered Temp. | 110°F |
| Min. Flow Activation | 0.35 GPM |
| Min. Water Pressure | 25 psi |
| Motor Mounting Position | Horizontal |
| Mounting | Horizontal |
| Mounting Orientation | Horizontal |
| Mounting Type | Wall Mounting |
| Nema Rating | 1 |
| Operating Voltage | 208V AC |
| Orientation | Horizontal |
| Overall Depth | 2 3/4" |
| Overall Height | 6 1/4" |
| Overall Width | 9.63" |
| Phase | 1 |
| Power Consumption | 4160 W |
| Pressure | 25 psi to 150 psi |
| Residential/commercial | Both |
| Sub-brand | Electric Tankless Water Heater |
| Temp. | 110°F |
| Temp. Rise @ Flow | 28°F @ 1 GPM, 36°F @ 0.80 GPM |
| Water Heater Application | Undersink |
| Water Heaters | Electric Tankless Water Heater |
| Wire Size | 10 AWG |
Shipping Info:
| Ship weight (kg) | 2.08 |
| Ship height (cm) | 15.88 |
| Ship length (cm) | 6.99 |
| Ship width (cm) | 24.46 |
| Country of Origin | US |
Product Variants
| Model | Max. Flow Rate | Min. Flow Activation | Amps | Overall Depth | Max. Water Pressure | Overall Height | Phase | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| SR-15L/120 HTR-I | 1.5 GPM | 0.4 GPM | 15A | 2 3/4" | 80 psi | 6 1/4" | 1 | 9.63" | €278.85 | |
| M20L/208HTR 104F-I | 1.5 GPM | 0.65 GPM | 20A | 2 3/4" | 80 psi | 6 1/4" | 1 | 9.63" | €381.57 | |
| SR-20L/208 HTR-I | 1.5 GPM | 0.4 GPM | 20A | 2 3/4" | 80 psi | 6 1/4" | 1 | 9.63" | €298.84 | |
| SR-20L/277 HTR-I | 1.5 GPM | 0.4 GPM | 20A | 2 3/4" | 80 psi | 6 1/4" | 1 | 9.63" | €331.83 | |
| SR-30/277 HTR-I | 2 GPM | 0.65 GPM | 30A | 2 3/4" | 80 psi | 6 1/4" | 1 | 9.63" | €313.34 | |
| SR-30/208 HTR-I | 2 GPM | 0.65 GPM | 30A | 2 3/4" | 80 psi | 6 1/4" | 1 | 9.63" | €308.01 | |
| M30/208HTR 110F-I | 2 GPM | 0.4 GPM | 30A | 2 3/4" | 80 psi | 6 1/4" | 1 | 9.63" | €365.92 |
