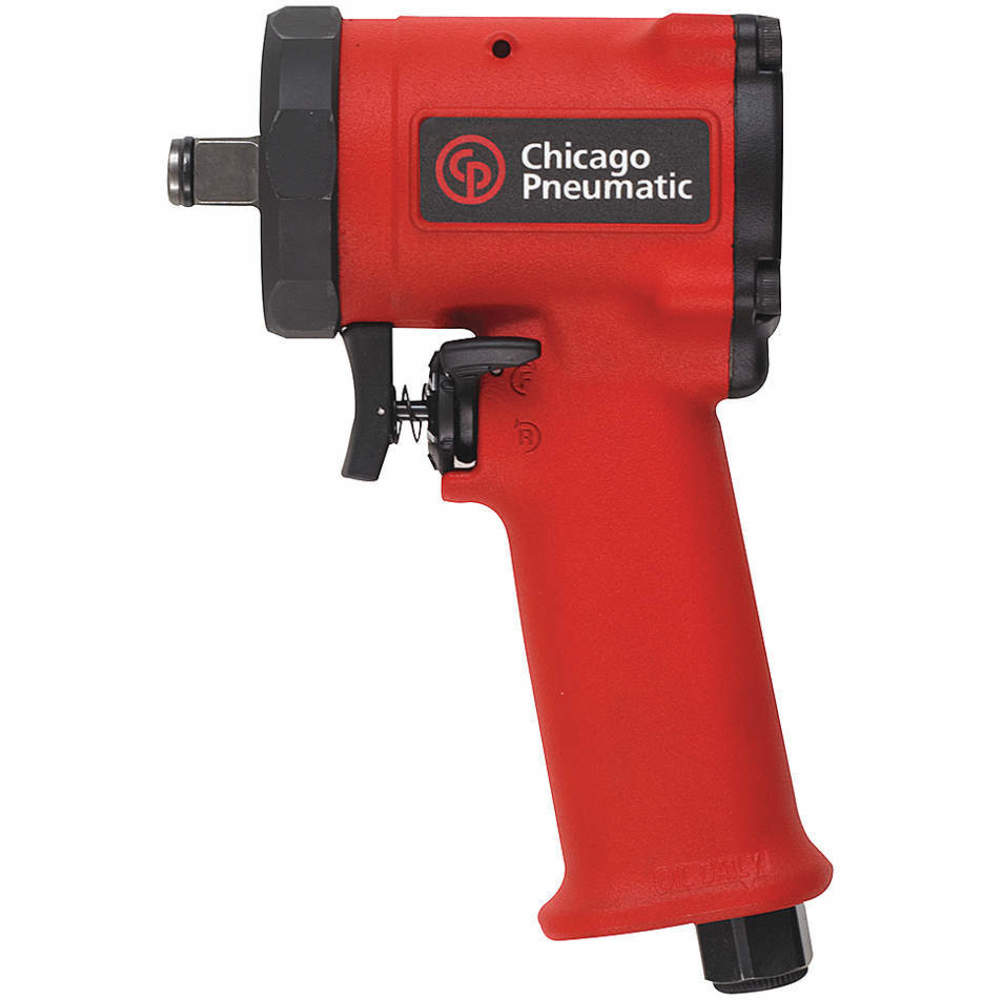

CHICAGO PNEUMATIC CP7732 Impact Wrench Compact Stubby 1/2 Inch
Item: AH7LYNModel: CP7732Cross Ref: 36WC72
7 In Stock
Ships within 2 days via
10.00% off
€281.67 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Impact Wrench Compact Stubby 1/2" |
| Air Consumption | 20 CFM |
| Air Inlet Size | 1/4" |
| Air Inlet Type | NPT |
| Air Pressure | 90 psi |
| Breakaway Torque | 450 lbs.-ft. |
| Built-in Light | No |
| Clutch Style | Rocking Dog |
| Drive Size | 1/2" |
| Drive Type | Standard |
| Duty Rating | General Duty |
| Exhaust Location | Bottom |
| Fastening Torque | 310 lbs.-ft. |
| Features | Jumbo Hammer, One Hand Operation Forward Reverse By Either Left Or Right Handed Users |
| Free Speed | 9000 RPM |
| Handle Material | Aluminum |
| Handle Type | Pistol Grip |
| Housing Material | Steel |
| Impact Rated | Yes |
| Impact Sound Level | 106 dB |
| Impacts Per Minute | 1400 |
| Includes | Hook |
| Maximum Air Pressure | 90 psi |
| Maximum Bolt Capacity | 1/2" |
| Minimum Air Pressure | 90 psi |
| Minimum Hose Size | 3/8" |
| Number Of Speed Settings | 3 |
| Overall Length | 4 3/8" |
| Power Source | Air Powered |
| Power To Weight Ratio | 155.2 lbs.-ft. |
| Retainer Type | Friction Ring |
| Tool Style | Compact |
| Tool Weight | 2.9 lbs. |
| Vibration Level | 12.1 m/sq. sec. |
Shipping Info:
| Ship weight (kg) | 1.58 |
| Ship height (cm) | 7.11 |
| Ship length (cm) | 19.81 |
| Ship width (cm) | 18.03 |
| Country of Origin | TW |
Product Variants
| Product | Model | Drive Size | Fastening Torque | Breakaway Torque | Free Speed | Air Consumption | Impact Sound Level | Impacts Per Minute | Vibration Level | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

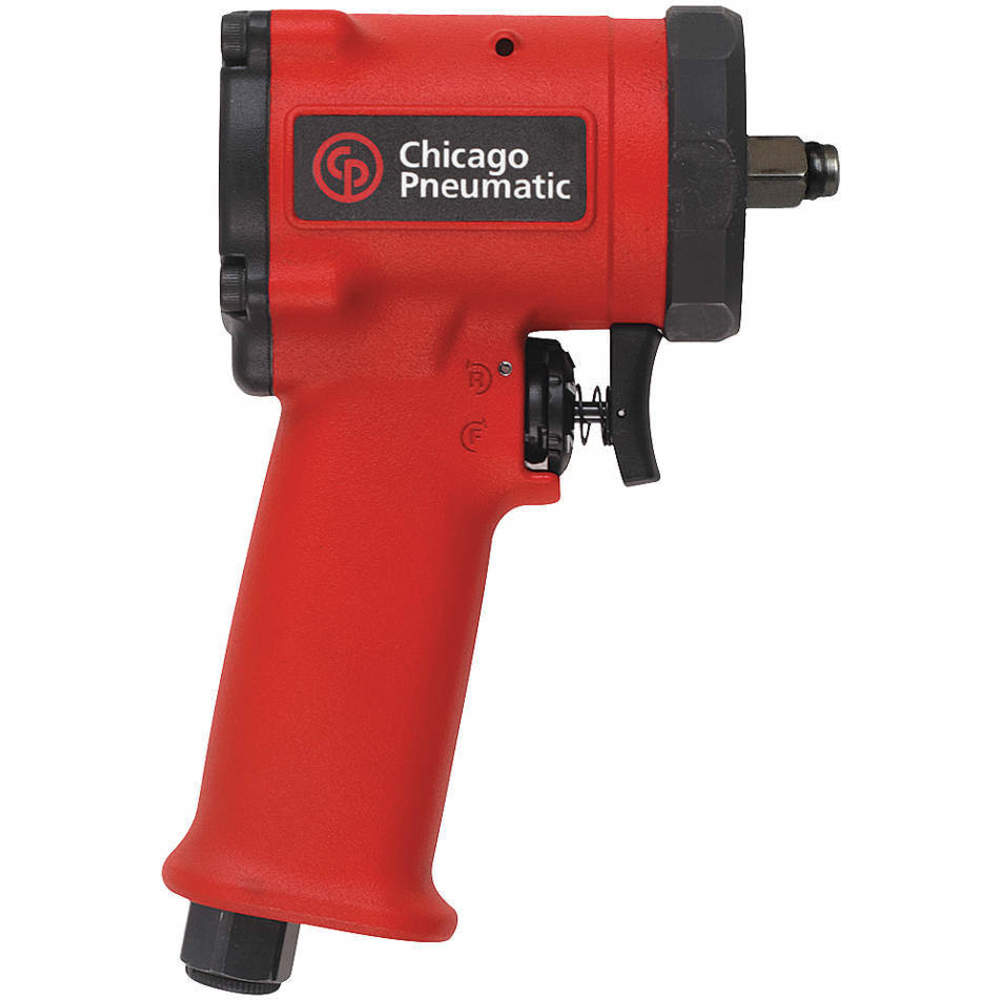

CP7731 | 3/8" | 240 lbs.-ft. | 305 lbs.-ft. | 6400 RPM | 18 CFM | 104 dB | 1200 | 8.5 m/sq. sec. | €321.32 |
