Product Specifications:
| Item | Air Impact Wrench |
| Air Consumption | 25 CFM |
| Air Inlet Size | 1/4" |
| Air Inlet Type | NPT |
| Anvil | Standard |
| Anvil Type | Standard |
| Anvil Type - Air Impacts | Standard |
| Average Cfm @ 15 Second Run Time | 6.2 CFM |
| Body Style | Pistol |
| Breakaway Torque | 625 lbs.-ft. |
| Built-in Light | No |
| Cfm @ Full Load | 25 CFM |
| Clutch Style | Double Rocking Dog |
| Drive Size | 1/2" Square |
| Drive Type | Standard |
| Duty | Industrial |
| Duty Cycle | Industrial Duty |
| Duty Rating | Industrial Duty |
| Exhaust Location | Bottom |
| Fastening Torque | 502 lbs.-ft. |
| Features | Regulator 4 Settings And One-Hand Reverse |
| Free Speed | 6400 RPM |
| Handle Material | Aluminum |
| Handle Type | Pistol Grip |
| Housing Material | Steel |
| Impact Rated | Yes |
| Impact Sound Level | 107 dB |
| Impacts Per Minute | 1320 |
| Max. Bolt Capacity | 5/8" |
| Maximum Air Pressure | 90 psi |
| Min. Hose Size | 3/8" |
| Minimum Air Pressure | 90 psi |
| Number Of Speed Settings | 4 |
| Overall Length | 7" |
| Power Source | Air Powered |
| Power To Weight Ratio | 107.8 lbs.-ft. |
| Product Datasheet | chicago-pneumatic-cp6500rs.pdf |
| Required Pressure | 90 psi |
| Retainer Type | Pin Detent |
| Square Drive Size | 1/2" |
| Style | Pistol Grip |
| Tool Style | Compact |
| Tool Weight | 5.8 lbs. |
| Torque Range | 103 lbs.-ft. to 354 lbs.-ft. |
| Vibration Level | 8 m/sq. sec. |
Shipping Info:
| Ship weight (kg) | 2.9 |
| Ship height (cm) | 8.38 |
| Ship length (cm) | 21.84 |
| Ship width (cm) | 21.08 |
| HS code | 8467115040 |
| Country of Origin | JP |
Documentation:
Product Variants
| Product | Model | Retainer Type | Clutch Style | Handle Type | Drive Type | Tool Style | Duty Rating | Drive Size | Fastening Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

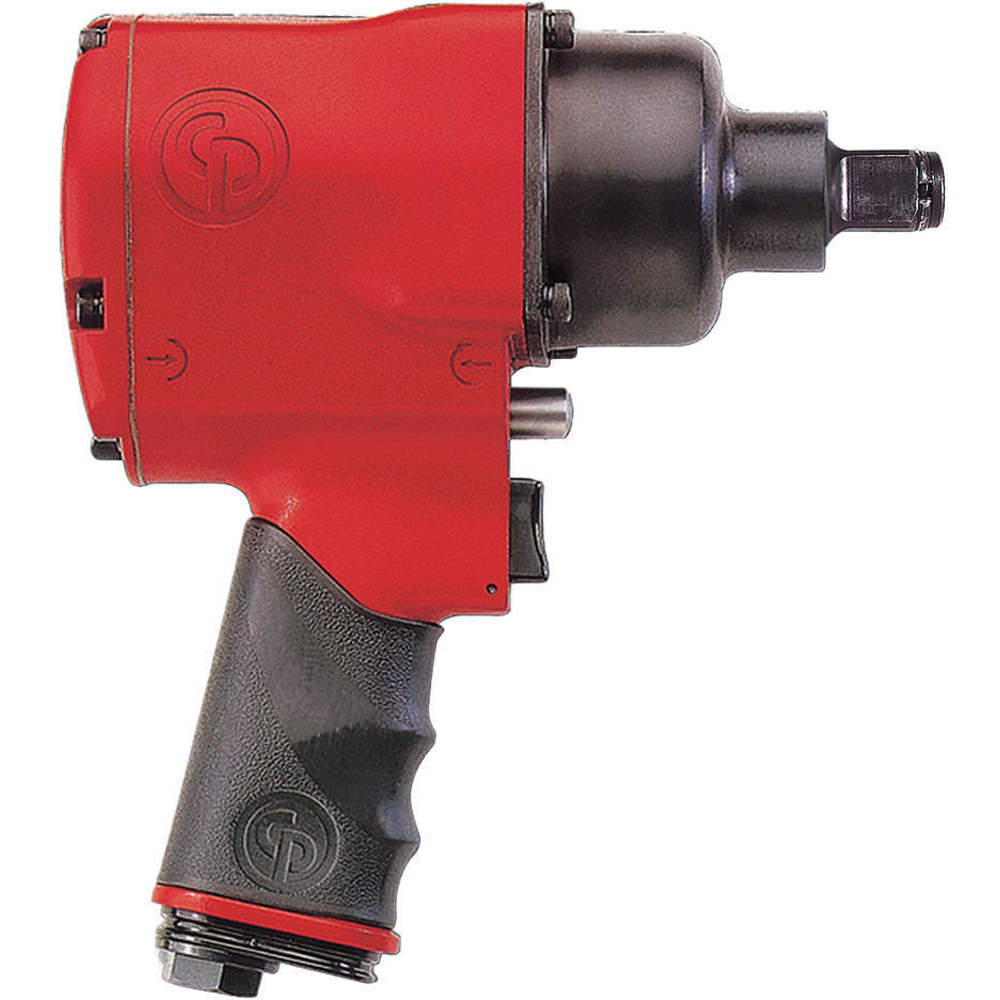

CP6500-RSR | Friction Ring | Twin Hammer | Pistol Grip | Standard | Compact | Industrial Duty | 1/2" Square | 502 lbs.-ft. | €722.33 |
Explore Products
- SOUTHWIRE COMPANY F160241200 Copper Wire, 26 Strand, 16 Awg, Black
- APPROVED VENDOR M51110.050.0016 Machine Screw, M5x0.8 Thread Size, SS, 16 mm Lg., Flat, Plain, Slotted
- SPEARS VALVES 3329-9082P Reducer Coupling, Gasket, 125 PSI, PIP, 24 x 8 Size, PVC
- SEALMASTER NP-20R HTA Pillow Block Bearing, 2 Bolt, 1.25 Inch Dia, Setscrew Locking, Nomex Seal
- DAYTON 7AD16 Exhaust Fan 20 Inch 115/208-230 V
- HEXARMOR 17-22001 Rain Cover
- MAXPURE TE2C926L3.0-PC Elbow, 316L Stainless Steel, Clamp X Orbital Weld, 3 Inch X 3 Inch Tube Od, Light Polish
- EATON DT221UGK Heavy Duty Non-Fused Safety Switch, Double-Throw, 30A, 2-Pole, Two-Wire, 240 Vac, 250 Vdc
Explore More
- KEYSHAFT
- SURE-FOOT
- E.D. BULLARD
- MAIN FILTER INC.
- NITRA
- Drawer Bin Cabinets
- Motor Accessories
- Transformer Cooling Fans
- Plier Clamps
- Pump Control Boxes
- DESTACO 424, 441 Series Squeeze Action Plier Clamps
- HELICOIL High Spiral Flute Bottoming Taps, UNF, 3B
- CONDOR Coated Gloves, Nitrile, Palm Dotted/Double Dipped
- RUD CHAIN WPP-VIP Powerpoint Direct Vip Chain Connection Hoist Rings
- ANVIL AS150H Series Channels With Holes
- HONEYWELL Rebuild Kits
- ZURN Straight Service Sink Faucet
- COOPER B-LINE Type 12 Hinge Cover Pushbutton Enclosures
- INGERSOLL-RAND Air Powered Diggers
- 80/20 10 Series 1001 Single Open T-Slotted Profile Extrusions
Contact us
Contact your account manager right away to get personal advice.
We're available Monday through Friday, from 07:30 until 17:00.

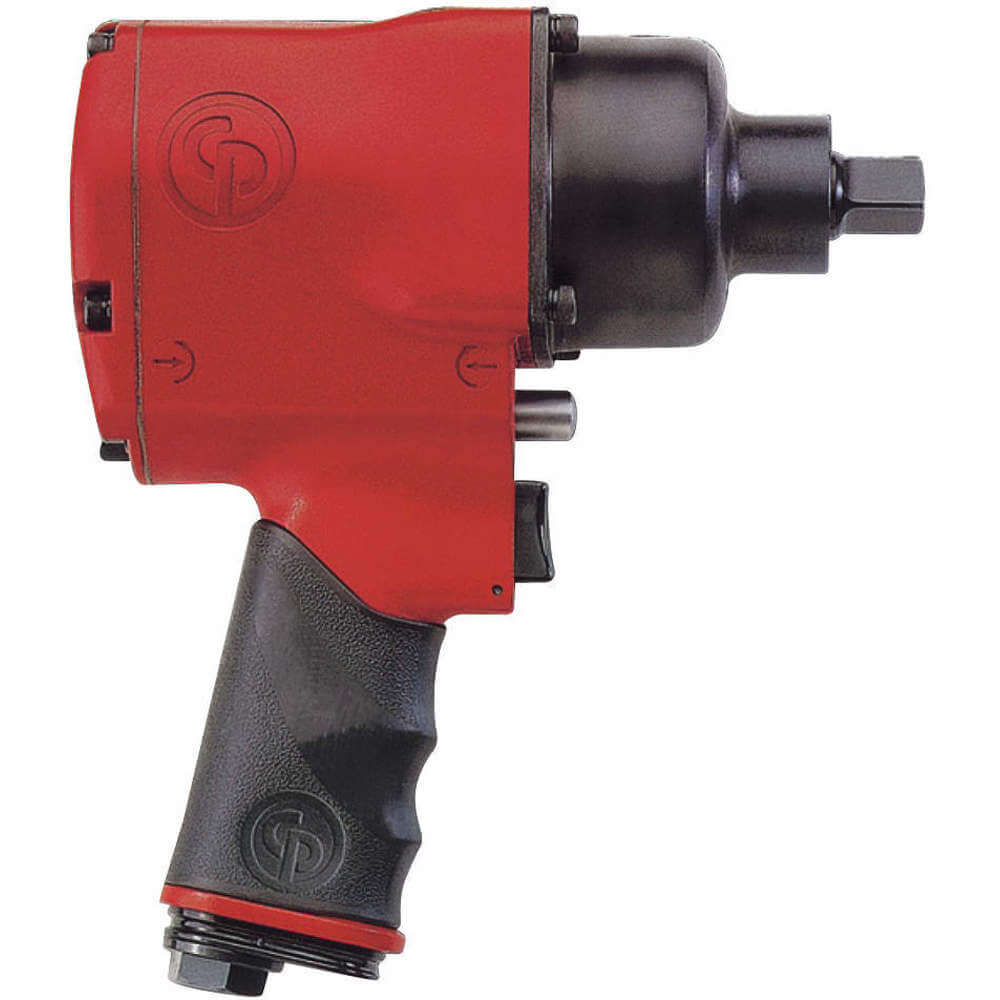

CHICAGO PNEUMATIC CP6500RS Air Impact Wrench 1/2 Inch Drive 6400 rpm
