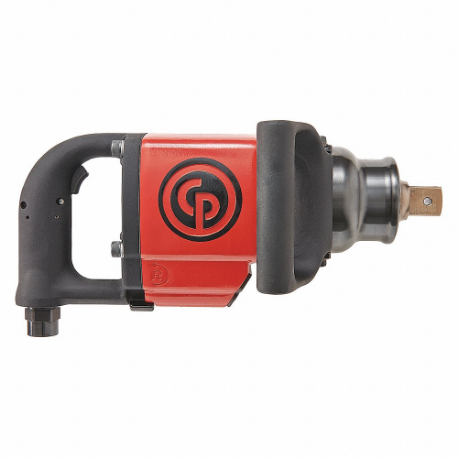

CHICAGO PNEUMATIC CP0611-D28H Impact Wrench, D-Handle, Std, Compact, Industrial Duty, 1 Inch Square Drive Size
Get it by Friday, Aug 28
5.00% off
€4,913.59 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Impact Wrench |
| Air Consumption | 68 CFM |
| Air Inlet Size | 1/2" |
| Air Inlet Type | NPT |
| Air Pressure | 90 psi |
| Body Style | D Handle |
| Breakaway Torque | 2800 lbs.-ft. |
| Built In Light | No |
| Clutch Style | Two Jaw Clutch |
| Drive Type | Standard |
| Duty Rating | Industrial |
| Exhaust Location | Bottom |
| Features | 360° Adjustable D-Type Side Handle, Compact 3-Part Construction & Easy Maintenance, Full Teasing (Inside) Trigger With Durable Reverse, Hole Type Socket Retainer With O-Ring, Operator Comfort And Control Thanks To Perfect Ergonomic Design Even At Very Hig |
| Free Speed | 3500 RPM |
| Handle Material | Aluminum |
| Handle Type | D Handle |
| Housing Material | Steel |
| Impact Rated | Yes |
| Impact Sound Level | 110 dB |
| Max. Air Pressure | 90 psi |
| Max. Bolt Capacity | 1 3/8" |
| Min. Air Pressure | 90 psi |
| Min. Hose Size | 1" |
| No. Of Speed Settings | 3 |
| Overall Length | 14 1/8" |
| Power Source | Air Power |
| Power To Weight Ratio | 122.3 lbs.-ft. |
| Retainer Type | Through Hole |
| Tool Style | Compact |
| Tool Weight | 22.9 lbs. |
| Vibration Level | 18 m/sq. sec. |
Shipping Info:
| Ship weight (kg) | 12.67 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Min. Hose Size | Power Source | Max. Bolt Capacity | Drive Size | Handle Type | Duty Rating | Body Style | Tool Weight | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

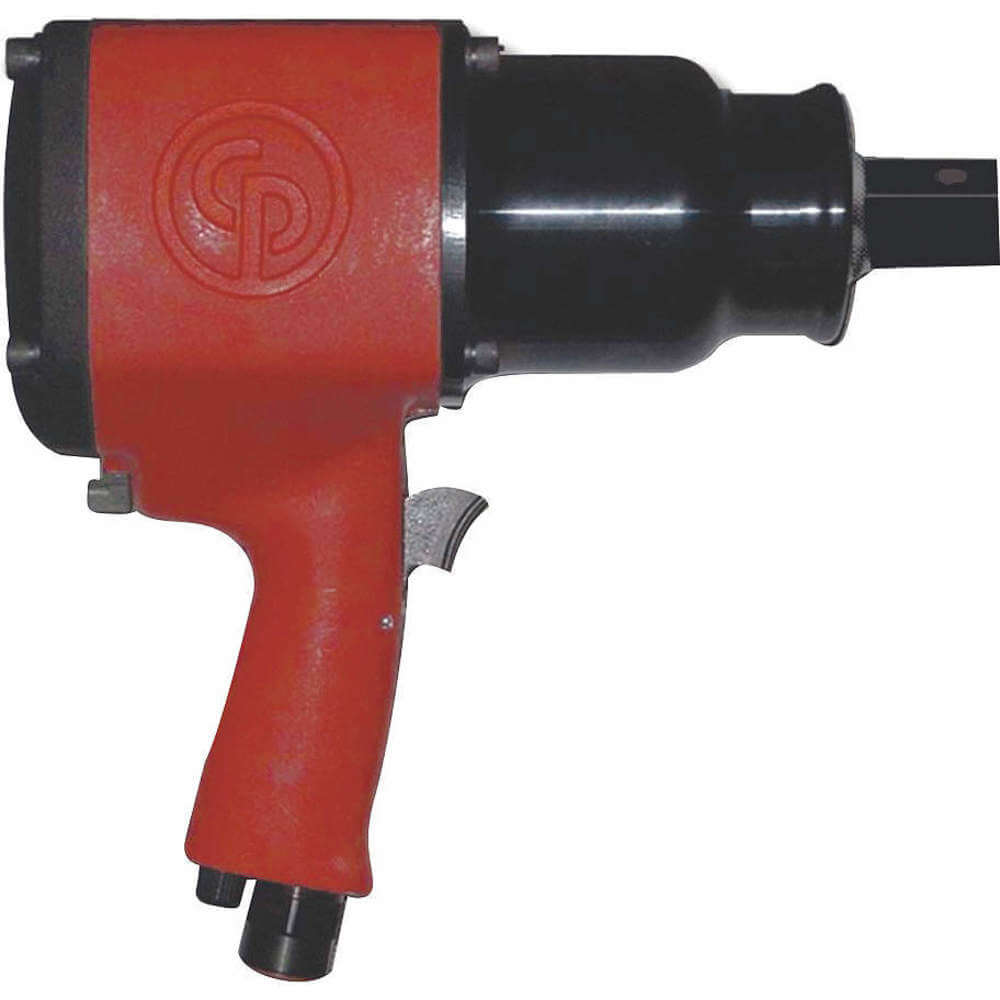

CP0611PRS | 5/8" | Air Powered | 1 3/8" | 1" | Pistol Grip | Industrial Duty | Pistol | 23.1 lbs. | €4,538.70 | |
 |

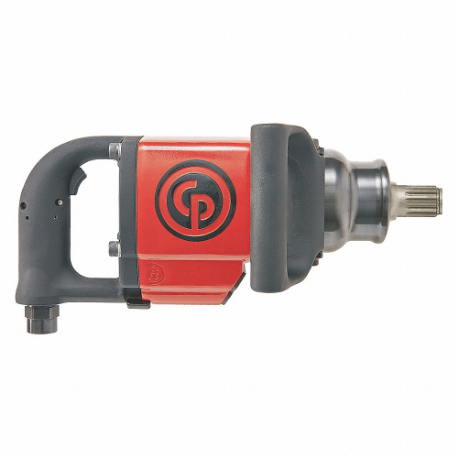

CP0611-D28L | 1" | Air Power | 1" | #5 | D Handle | Industrial | D Handle | 22.9 lbs. | €5,937.30 |
