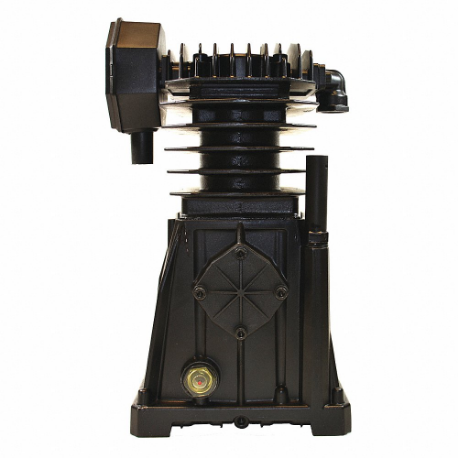

CHICAGO PNEUMATIC 4116091337 Air Compressor Pump, Splash Lubricated, 1 Stage, 5.5 Hp, 11.1 Cfm At 130 PSI
Get it by Wednesday, Dec 24
10.00% off
€595.26 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Air Compressor Pump |
| Average Pump Life | 10000 hrs. |
| Bore Dia. | 2 12/25" |
| Bore Diameter | 2.48" |
| Construction | Aluminum, Cast Iron |
| Features | Variety Of Power Levels |
| Finish | Matte Black |
| Flywheel Dia. | 13 3/4" |
| Flywheel Included | Yes |
| Free Air Cfm @ Max. Pressure | 11.1 CFM |
| Free Air Flow Rate @ Maximum Pressure | 11.1 CFM @ 130 psi |
| Groove Quantity | 1 |
| Groove Section | A |
| Lubrication Required | Yes |
| Lubrication Type | Splash Lubricated |
| Max. Operating Pressure | 130 psi |
| Maximum Output Power | 5 1/2 hp |
| Number Of Cylinders | 2 |
| Number Of Grooves | 1 |
| Number Of Stages | 1 |
| Oil Capacity | 29.12 fl. oz. |
| Outlet Connection Type | NPT |
| Outlet Size | 0.62" |
| Output Power | 5 1/2 hp |
| Overall Depth | 11" |
| Overall Height | 14 1/4" |
| Overall Width | 13" |
| Pump Speed | 1250 RPM |
| Rotation | CCW |
| Stroke Length | 2 3/8" |
| Sub-brand | Pat38 |
| Valve Material | Stainless Steel |
| Valve Type | Reed |
Shipping Info:
| Ship weight (kg) | 12.2 |
| Ship height (cm) | 36.2 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 33.02 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Stages | Maximum Output Power | Max. Operating Pressure | Pump Speed | Oil Capacity | Overall Height | Overall Width | Valve Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

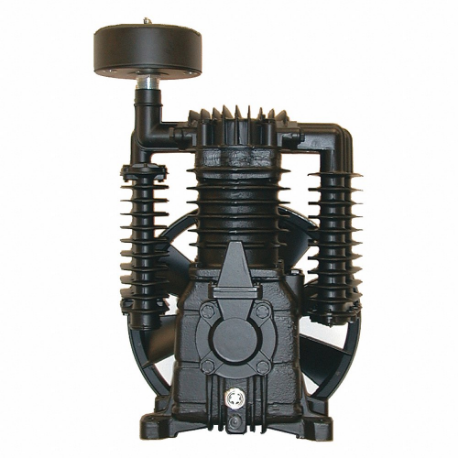

4116090019 | 2 | 7 1/2 hp | 175 psi | 1400 RPM | 34.88 fl. oz. | 23" | 15" | Reed | €3,666.75 | |
 |
1312101035 | 2 | 5 hp | 175 psi | 1400 RPM | 46.08 fl. oz. | 14 14/25" | 13.78" | Reed | €1,925.33 | |
 |

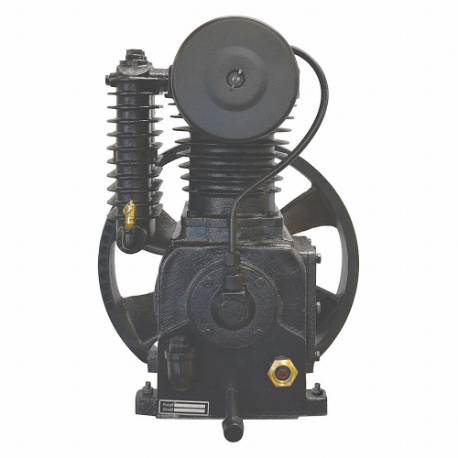

1312100706 | 2 | 7 1/2 hp | 175 psi | 1000 RPM | 41.92 fl. oz. | 23.03" | 17.91" | Disc | €2,554.94 | |
 |

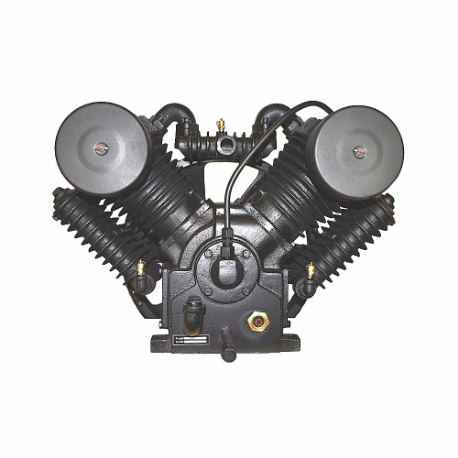

1312202700 | 2 | 10 hp | 175 psi | 900 RPM | 48 fl. oz. | 22.43" | 28.73" | Disc | €3,740.07 |
