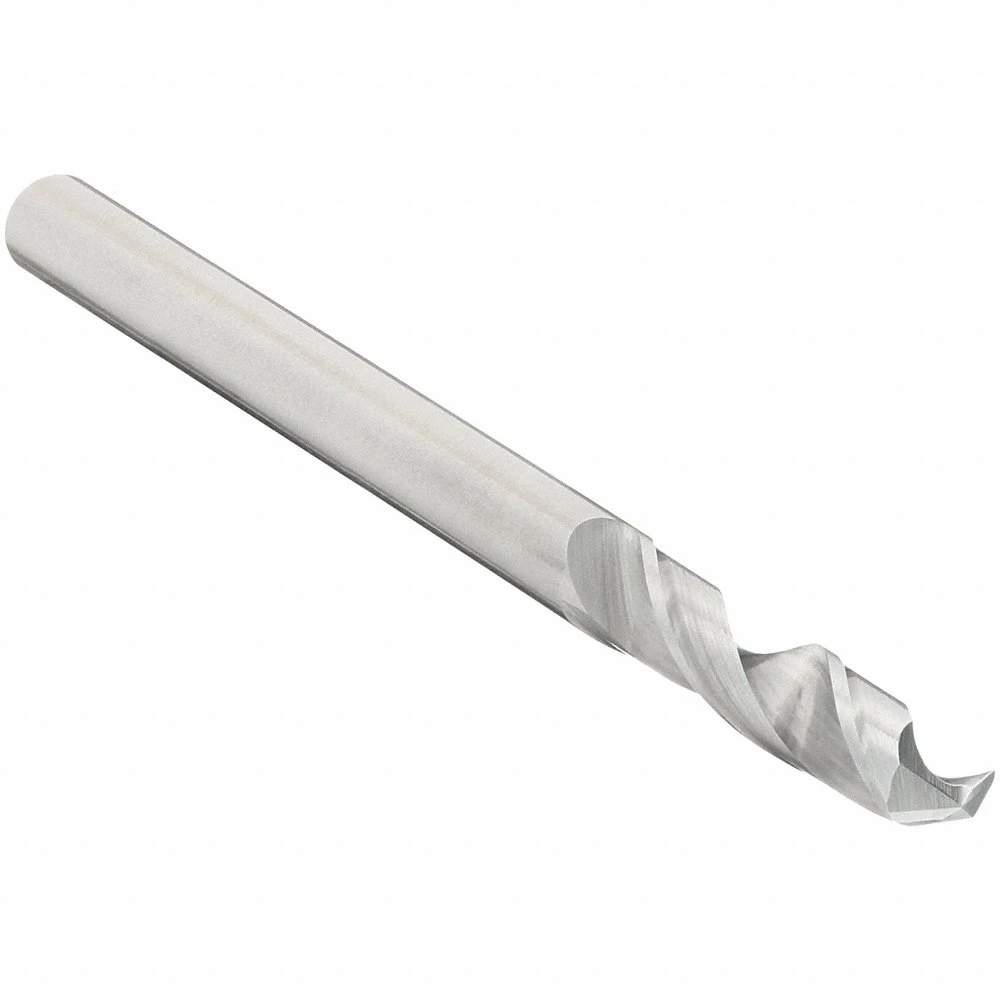

CHICAGO-LATROBE 78689 Spiral Stub Drill List# 759 Wire Size 50
Get it by Tuesday, Aug 25
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Screw Machine Drill |
| Application | Cast Iron, Stainless Steel, High-Temp Alloys And Hardened Material |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.07 |
| Depth Dia. Ratio | 4Xd |
| Dimensions Type | Wire Size |
| Drill Bit Dimension Type | Wire |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Solid Carbide |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | 4 Facet Point |
| Drill Bit Size | #50 |
| Drill Dia. Tolerance | -0" to +0.0005" |
| Drill Length Class | Screw Machine Length |
| Drill Point | 118° |
| Drill Point Length | 0.021" |
| Finish | Uncoated |
| Finish-machining | Bright (Uncoated) |
| Flute Length | 3/8" |
| Flute Type | Spiral |
| Helix Angle | 28° |
| List Number | 759 |
| Material | Carbide |
| Material-machining | Carbide |
| Max. Drilling Depth | 3/8" |
| Measurement System | Wire |
| No. Of Flutes | 2 |
| Overall Length | 1 1/2" |
| Point Angle | 118° |
| Primary Material Application | Cast Iron, Hardened Steel, Nickel, Stainless Steel, Titanium |
| Primary Material Application Iso Code | H, K, M, S |
| Shank Dia. | 0.07" , 1/16" |
| Shank Length | 1 1/8" |
| Shank Type-machining | Straight |
| Size | #50 |
| Size Included | #50 |
| Spiral Direction | Right Hand |
| Type | Slow Spiral |
| Wire Size | #50 |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8.8 |
| Ship width (cm) | 1 |
| HS code | 8207502080 |
| Country of Origin | US |
Product Variants
| Model | Flute Length | Shank Dia. | Drill Bit Size | Shank Length | Drill Dia. Tolerance | Max. Drilling Depth | Size Included | Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 78643 | 3/4" | 0.209" | #4 | 1 1/2" | -0" to +0.0007" | 3/4" | #4 | #4 | - | RFQ
|
| 78644 | 3/4" | 0.205" | #5 | 1 1/2" | -0" to +0.0007" | 3/4" | #5 | #5 | - | RFQ
|
| 78645 | 1 1/4" | 0.204" | - | - | - | 3/4" | #6 | #6 | - | RFQ
|
| 78646 | 3/4" | 0.201" | #7 | 1 1/2" | -0" to +0.0007" | 3/4" | #7 | #7 | €94.54 | |
| 78647 | 3/4" | 0.199" | #8 | 1 1/2" | -0" to +0.0007" | 3/4" | #8 | #8 | €97.23 | |
| 78648 | 3/4" | 0.196" | #9 | 1 1/2" | -0" to +0.0007" | 3/4" | #9 | #9 | - | RFQ
|
| 78677 | 5/8" | 0.101" | #38 | 1 3/8" | -0" to +0.0005" | 5/8" | #38 | #38 | - | RFQ
|
